Description

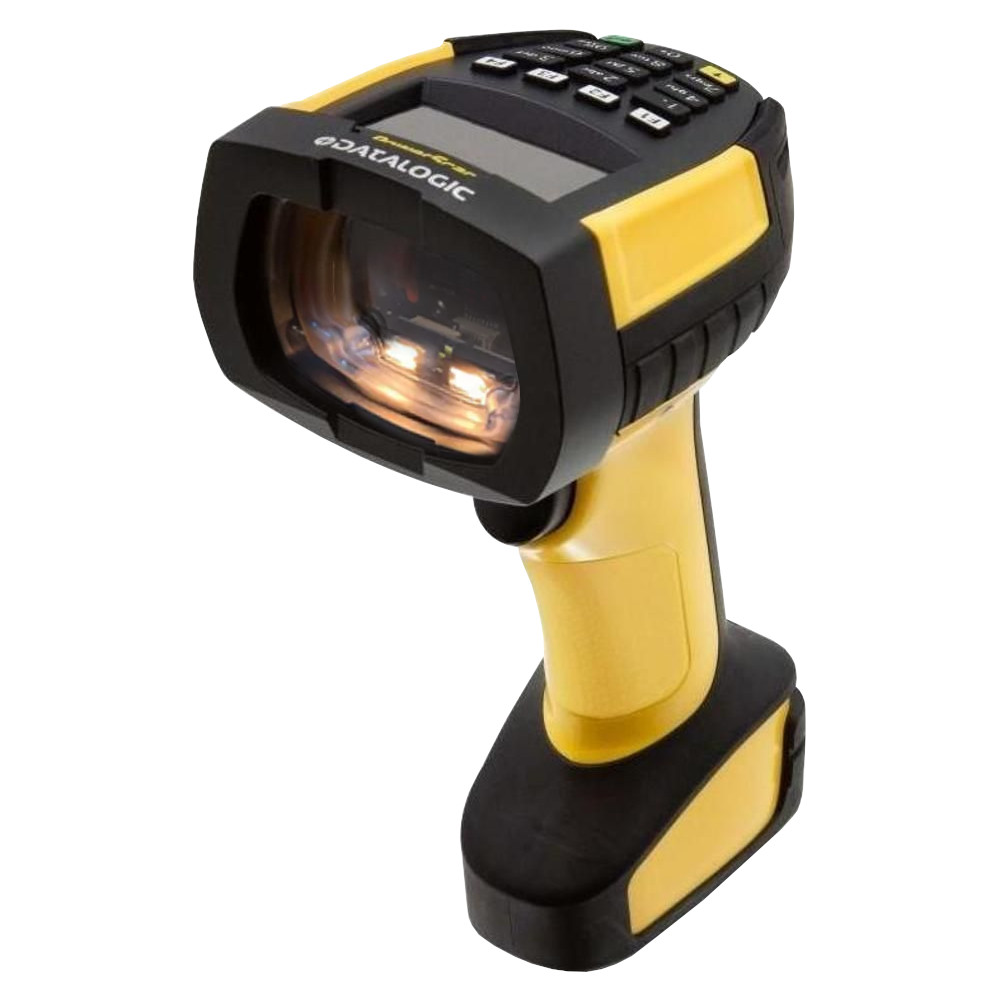

The Datalogic PowerScan PM9600-HP is a premium-grade, ultra-rugged cordless industrial barcode scanner designed to deliver high performance in demanding environments. With 433 MHz STAR Cordless System™ wireless communication, a 1.8" OLED display, and a 16-key programmable keypad, it combines top-tier scanning capabilities with real-time interaction and data entry flexibility.
Engineered for harsh industrial conditions, this scanner features an IP67/IP65-rated body and withstands drops from up to 2.5 metres. The High Performance (HP) scan engine delivers unmatched scanning range and accuracy on 1D and 2D barcodes, ideal for long-range and high-density scanning tasks in manufacturing and logistics.
Equipped with Datalogic’s wireless inductive charging, it eliminates charging contacts and reduces maintenance costs, while the 3350 mAh removable battery ensures uninterrupted multi-shift operation. The 3GL™ system, Green Spot feedback, and Motionix™ technology further streamline efficiency for operators.
Product Features
- High Performance scan engine with wide depth-of-field for standard, high-density, and distant barcodes
- 433 MHz Datalogic STAR Cordless System™ offers robust industrial wireless connectivity
- OLED display (1.8") and 16-key keypad enable interactive data input and field configuration
- Ergonomically balanced design for fatigue-free operation over extended shifts
- Wireless inductive charging – no charging contacts, no wear and tear
- IP67-rated scanner, withstands drops from 2.5m and up to 80,000 reads per charge
- Compatible with multiple interfaces including USB, RS-232, Ethernet, Industrial protocols
- Datalogic’s 3GL™ feedback system, Green Spot, Motionix™ motion-sensing technology
- Ideal for work-in-progress tracking, shipping/receiving, picking, quality control
- 3-Year Factory Warranty for long-term peace of mind
Product Specifications
Specification | Details |
Model | PowerScan PM9600-HP (High Performance) |
Wireless Technology | STAR Cordless System™, 433 MHz |
Wireless Range (Open Air) | 150 m (low speed), 100 m (high speed) |
Scan Engine | High Performance 1D/2D Imager |
Resolution | 1D: 2.5 mil, 2D: 4 mil |
Display | 1.8" OLED graphic display |
Keypad | 16-Key programmable keypad |
Battery | Lithium-Ion 3350 mAh, removable |
Reads per Charge | Up to 80,000 |
Charging Method | Inductive wireless via cradle (sold separately) |
Interfaces Supported | USB, RS-232, Keyboard Wedge, Ethernet, Industrial Protocols |
IP Rating | Scanner: IP67, Cradle: IP65 |
Drop Resistance | 2.5 m @ 20°C, 2.0 m @ -20°C |
Ambient Light Tolerance | 0 - 100,000 lux |
Dimensions (H x L x W) | 19.8 x 14.0 x 7.9 cm |
Weight | 455 g |
Operating Temperature | -20°C to 50°C |
Typical Reading Range | Code 128 (2.5 mil): 6.3–11.5 cm; Code 128 (40 mil): up to 2.4 m |
Light Source | Aiming: 630–680 nm VLD; Illumination: White LED |
Feedback Indicators | Beeper, Green Spot, 3GL™, Dual LEDs, Vibration |
Certifications | CE, RoHS, REACH, Laser Class II, LED Class Exempt |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- USB
- Serial/RS232
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP67
- Logistics/Warehouse
- 3 Years
- New
