Description

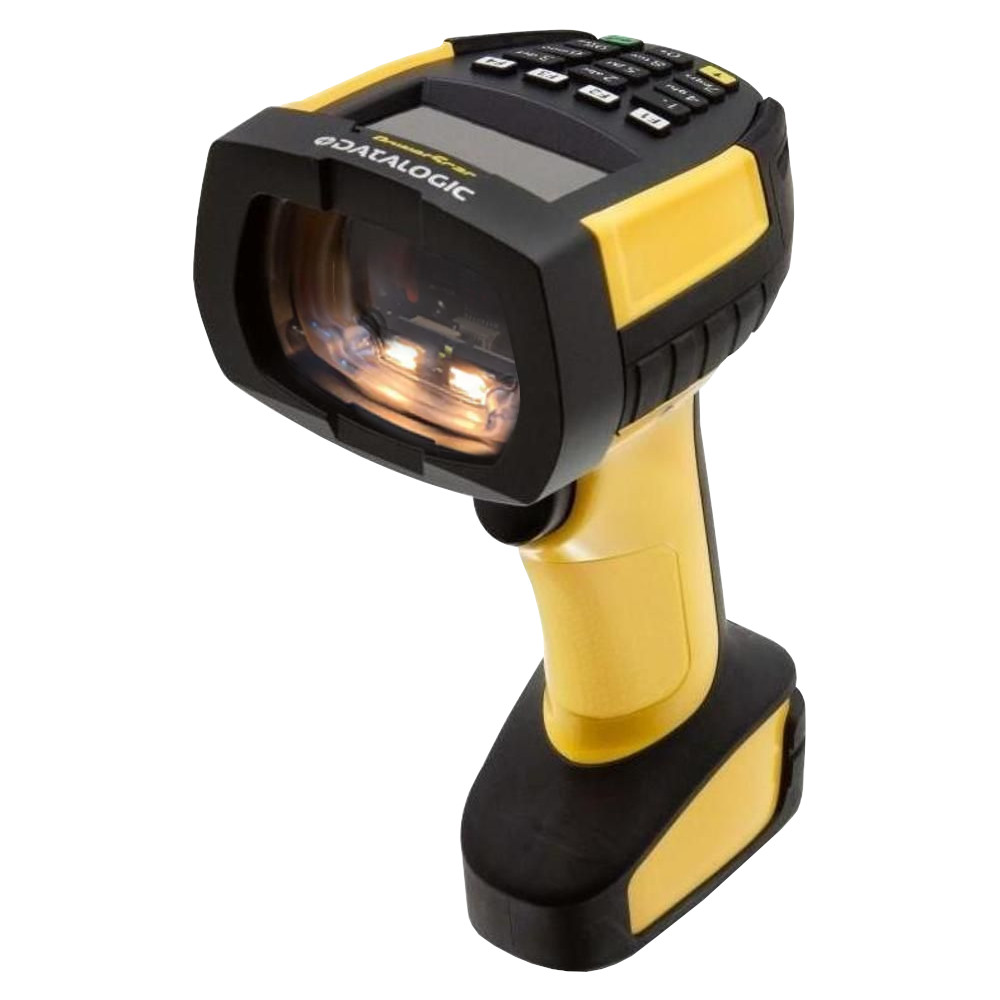

The Datalogic PowerScan PM9600-SR 433 MHz USB Kit delivers robust cordless scanning with the durability required for the toughest industrial environments. This Standard Range (SR) version offers efficient omnidirectional 1D and 2D barcode capture, perfect for close- to mid-range applications in manufacturing, logistics, and warehousing.
Powered by Datalogic’s STAR Cordless System™ at 433 MHz, this device ensures seamless, interference-free wireless operation, even in challenging RF environments. It comes equipped with a BC9620-433 cradle, CAB-438 USB cable, UK power cord, and external power supply, making integration with your existing infrastructure hassle-free.
This ultra-rugged scanner is IP67-rated, drop-resistant up to 2.5 metres, and uses wireless inductive charging technology that reduces wear and extends product life. The ergonomic build, motion sensing, and 3GL™ feedback make it ideal for long shifts with maximum efficiency.
Product Features
- Cordless industrial scanner with 433 MHz STAR Cordless System™ for reliable wireless communication
- Includes scanner, cradle (BC9620-433), USB cable (CAB-438), power supply (8-0935), and UK power cord (6003-0940)
- Standard Range imaging for fast omnidirectional scanning of 1D, 2D, and stacked barcodes
- Rugged IP65/IP67-rated body withstands drops from 2.5 metres and extreme environments
- Wireless inductive charging eliminates the need for physical charging contacts
- Delivers up to 80,000 scans per full battery charge with removable 3350 mAh battery
- Features Datalogic’s Motionix™ for automatic wake-up and 3GL™ technology for instant feedback
- Compatible with USB, RS-232, Ethernet, and other industrial communication standards
- Optimised for use in manufacturing lines, warehouse sorting, and goods tracking
- 3-year manufacturer warranty ensures reliability and peace of mind
Product Specifications
Specification | Details |
Model | PowerScan PM9600-SR |
Wireless Technology | Datalogic STAR Cordless System™ – 433 MHz |
Wireless Range (Open Air) | 150 m (low speed), 100 m (high speed) |
Scan Engine | Standard Range 1D/2D Imager |
Resolution | 1D: 3 mil, 2D: 6 mil |
Battery Type | 3350 mAh Lithium-Ion, Removable |
Reads per Charge | Up to 80,000 |
Charging | Wireless inductive via cradle |
Interfaces (via cradle) | USB (included), RS-232, Ethernet |
IP Rating | IP67 (Scanner), IP65 (Cradle) |
Drop Resistance | 2.5 m @ 20°C, 2.0 m @ -20°C |
Ambient Light Tolerance | 0 - 100,000 lux |
Dimensions (H x L x W) | 19.8 x 14.0 x 7.9 cm |
Weight | 425 g |
Operating Temperature | -20°C to 50°C |
Field of View | 38° H, 24° V |
Feedback Indicators | 3GL™, Green Spot, Beeper, Vibration, Dual LEDs |
Certifications | RoHS, REACH, China RoHS, Laser Class II, LED Class: Exempt |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- USB
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP67
- Logistics/Warehouse
- 3 Years
- New
