Description

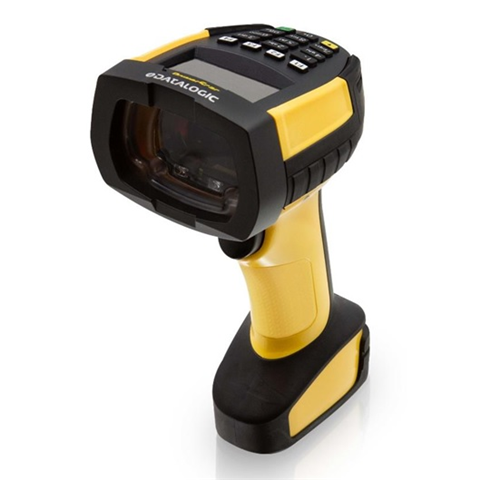

The Datalogic PowerScan PM9600-SR USB Kit combines robust industrial-grade scanning with long-range 910 MHz STAR cordless wireless communication. Built to withstand the harshest environments, the scanner offers outstanding performance on 1D, 2D, postal, and stacked codes, delivering unmatched productivity for manufacturing and logistics operations.
Engineered with wireless charging, removable battery, and IP65/IP67 sealing, the PowerScan PM9600-SR is designed for durability and uninterrupted performance. This standard range model is ideal for common scanning distances in shop floors, warehouses, and inventory tracking zones.
With USB connectivity via the BC9620-910 cradle, installation is seamless for various systems and workflows. Whether you’re scanning on production lines or handling goods at receiving docks, the PM9600-SR offers speed, precision, and comfort.
Product Features
- Standard Range scanning ideal for typical industrial applications
- Reliable 910 MHz STAR Cordless System™ for long-range wireless operation
- Wireless inductive charging eliminates contact failures
- Ultra-rugged housing with IP65/IP67 protection and drop resistance up to 2.5 m
- Long-lasting 3350 mAh battery supports up to 80,000 scans per charge
- 3GL™ (Three Green Lights) visual feedback, beeper, and vibration for user confirmation
- Ergonomically balanced design for fatigue-free daily use
- Modular BC9620-910 cradle with USB interface for easy deployment
- Supports all common 1D/2D barcode symbologies including GS1 and postal codes
- Seamless operation in ambient light up to 100,000 lux
Product Specifications
Specification | Details |
Model | PowerScan PM9600-SR |
Scan Engine | Standard Range 1D/2D Imager |
Wireless Frequency | 910 MHz STAR Cordless System™ |
Communication Interface | USB (via BC9620-910 cradle) |
Charging Method | Inductive Wireless Charging |
Battery Type | 3350 mAh Removable Lithium-Ion |
Reads per Charge | Up to 80,000 |
Drop Resistance | Up to 2.5 m (scanner), 2.0 m at -20°C |
IP Rating | IP67 (scanner), IP65 (cradle) |
Weight | 425 g |
Dimensions (H x L x W) | 19.8 x 14.0 x 7.9 cm |
Light Source | Aiming: 630–680 nm VLD |
Print Contrast Ratio | Minimum 15% |
Resolution (Max) | 1D: 3 mil |
Field of View | 38° Horizontal, 24° Vertical |
Reading Indicators | 3GL™, Green Spot, Beeper, Vibration, Dual LEDs |
Interfaces Supported | USB (via cradle), RS-232, Ethernet (via other cradles) |
Operating Temp | -20°C to 50°C |
ESD Protection | 20 kV (Air Discharge) |
Ambient Light | Up to 100,000 lux |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- USB
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP67
- Logistics/Warehouse
- 3 Years
- New
