Description

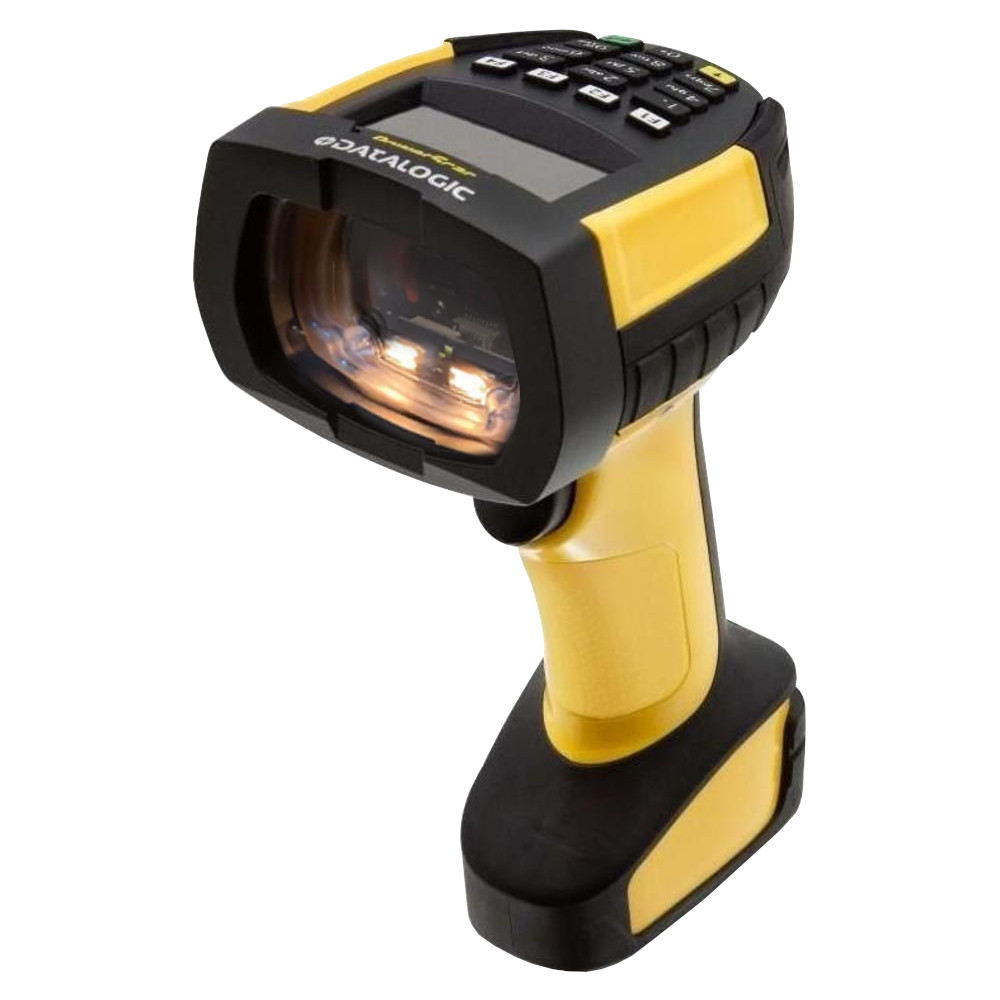

The Datalogic PowerScan PM9600-SR cordless scanner delivers unmatched scanning performance and rugged durability, specifically engineered for demanding industrial environments. This 433 MHz radio frequency model uses Datalogic’s STAR Cordless System™, offering secure and interference-free communication over long ranges – up to 150 metres.
With a standard range scan engine, this handheld device excels at capturing 1D and 2D barcodes from contact to over 1 metre away. Its wireless charging system eliminates exposed contacts and pins, reducing wear and maintenance over time. The included BC9630-433 cradle, power supply, USB cable, and removable battery ensure the scanner is ready for full-shift performance out of the box.
This model is built for ultra-rugged performance with IP65/IP67 sealing, and it withstands 50 drops from 2.5 metres. Additional features like 3GL™ (Three Green Lights), Datalogic’s Motionix™, and white LED illumination deliver accuracy, ergonomic handling, and user-friendly operation in manufacturing, logistics, and warehouse environments.
Product Features
- Wireless industrial barcode scanner with 433 MHz STAR Cordless System™
- Kit includes PM9600-SR Scanner, BC9630-433 Cradle, CAB-552 USB Cable, Power Supply, and UK Power Cord
- Reads 1D, stacked, and 2D symbologies including postal and composite codes
- Wireless charging technology with no contact pins for superior durability
- Snappy omnidirectional scanning with up to 80,000 scans per charge
- Ultra-rugged housing with IP65/IP67 sealing and drop resistance from 2.5 m
- Modular cradle design with interface flexibility: USB, RS-232, Ethernet, Industrial protocols
- Equipped with Motionix™ motion sensing, 3GL™ feedback, loud beeper & vibration
- Designed with balanced ergonomics for prolonged use in demanding tasks
- Supports Datalogic Aladdin™, OPOS, JavaPOS, and remote diagnostics
Product Specifications
Specification | Details |
Model | PowerScan PM9600-SR |
Frequency | 433 MHz (Datalogic STAR Cordless System™) |
Radio Range (Open Air) | Up to 150 m (492 ft) |
Scan Engine | Standard Range 1D/2D Imager (1280 x 800 px) |
Connectivity | USB (Kit), supports RS-232, Keyboard Wedge, Ethernet |
Decoding Capabilities | 1D, 2D, Stacked, Postal Codes |
Resolution | 1D: 3 mil; 2D: 6 mil |
Battery Type | 3350 mAh Lithium-Ion (Removable) |
Reads per Full Charge | 80,000+ |
Charging Time | ~2.5 hrs to 95%; ~3.2 hrs to 100>#/span### |
Drop Resistance | 50 drops from 2.5 m / 8.2 ft |
Sealing | IP65 & IP67 rated; Cradle: IP65 |
Feedback | Beeper, Vibration, 3GL™ (3 Green Lights), Green Spot |
Operating Temp. | -20°C to 50°C |
Storage Temp. | -40°C to 70°C |
Ambient Light Tolerance | Up to 100,000 lux |
Weight | 425 g / 15 oz |
Dimensions (H x L x W) | 19.8 x 14.0 x 7.9 cm |
Colour | Yellow/Black |
Software Support | Datalogic Aladdin™, OPOS, JavaPOS |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- USB
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP67
- Logistics/Warehouse
- 3 Years
- New
