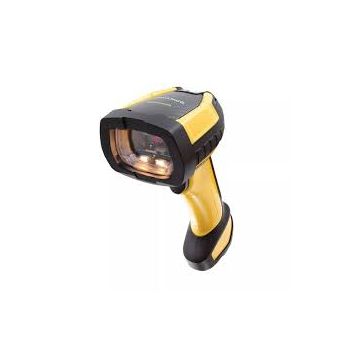

Datalogic PowerScan PM9600-SR Standard Range Cordless Barcode Scanner – 433 MHz, Removable Battery

Wireless, Rugged, Datalogic, Handheld, 2D, Serial/RS232, Standard Range, Yellow, Rugged/Heavy Duty, Industrial, IP67, Logistics/Warehouse, 3 Years, New
GBP £505.00
For Special & Volume Pricing - Call +441749608334
PM9600-SR433RB
+

Need Help

Choosing a Product
+441749608334 Live Chat Email Us
Talk to our technical Expert
price match

Description

Designed to thrive in extreme industrial environments, the Datalogic PowerScan PM9600-SR (433 MHz) delivers reliable, high-performance barcode scanning with robust cordless communication. Powered by Datalogic’s STAR Cordless System™, this standard range industrial scanner ensures secure wireless transmission, even in areas where Wi-Fi and Bluetooth are not viable.

Its IP67-rated ultra-rugged housing, ergonomic design, and intuitive aiming system guarantee maximum productivity while reducing operator fatigue. The 433 MHz radio frequency supports long-range connectivity up to 150 metres in open air, making it ideal for large warehouses, logistics centres, and manufacturing floors.

With a removable 3350 mAh battery, wireless inductive charging, and omnidirectional decoding of 1D, 2D, postal, and stacked codes, this scanner is built for sustained use, supporting up to 80,000 reads per charge.

Product Features

  • Industrial cordless scanner operating on 433 MHz STAR Cordless System™
  • Standard range performance with omnidirectional 1D/2D barcode reading
  • Ultra-rugged IP67/IP65 sealing and drop-tested up to 2.5 m
  • Wireless inductive charging – no exposed contacts or pins
  • 80,000 scans per charge with powerful 3350 mAh removable battery
  • Ergonomically balanced to minimise strain in continuous-use environments
  • Datalogic 3GL™, Green Spot, and loud beeper for reliable read confirmation
  • Seamless integration via USB, RS-232, Ethernet, or Keyboard Wedge
  • Ideal for shop floors, warehouses, logistics, and production lines in the UK
  • Supported by EASEOFCARE service plans for long-term ROI


Product Specifications

Specification

Details

Model

PowerScan PM9600-SR (Standard Range, 433 MHz)

Wireless Technology

433 MHz STAR Cordless System™

Radio Range (Open Air)

Up to 150 m (low speed), 100 m (high speed)

Battery

Removable Lithium-Ion, 3350 mAh – Up to 80,000 reads per charge

Charging Technology

Wireless Inductive Charging

Scan Engine

1D/2D Imager – Standard Range

Print Contrast

Minimum 15>#/span###

Sealing

Scanner: IP67; Cradle: IP65

Drop Resistance

2.5 m @ 20 °C; 2.0 m @ -20 °C

Interfaces (via cradle)

USB, RS-232, Keyboard Wedge, Ethernet, Industrial Protocols

Dimensions (H x L x W)

19.8 x 14.0 x 7.9 cm

Weight

425 g

Resolution

1D: 3 mil, 2D: 6 mil

Light Source

White LED with 630–680 nm aiming

Field of View

38° (H), 24° (V)

Environmental Light

0 to 100,000 lux

Temperature Range

Operating: -20 to 50 °C; Charging: 0 to 40 °C

ESD Protection

Up to 20 kV (Air Discharge)

Feedback Indicators

Beeper, Vibration, 3GL™, Green Spot, Dual LEDs

Software Support

Datalogic Aladdin™, OPOS, JavaPOS

Warranty

3-Year Factory Warranty



Features

Connectivity:
  • Wireless
Ruggedness:
  • Rugged
Brand:
Datalogic
Form Factor:
  • Handheld
Scan Engine/Technology:
  • 2D
Interface:
  • Serial/RS232
Scan Range:
  • Standard Range
Colour:
  • Yellow
Rugged:
  • Rugged/Heavy Duty
Usage:
  • Industrial
IP Rating:
  • IP67
Industry/Vertical:
  • Logistics/Warehouse
Warranty:
  • 3 Years
Product Type/Condition:
  • New

Attachments

Brochure (4000-datasheet.pdf, 280 Kb) [Download]
