Description

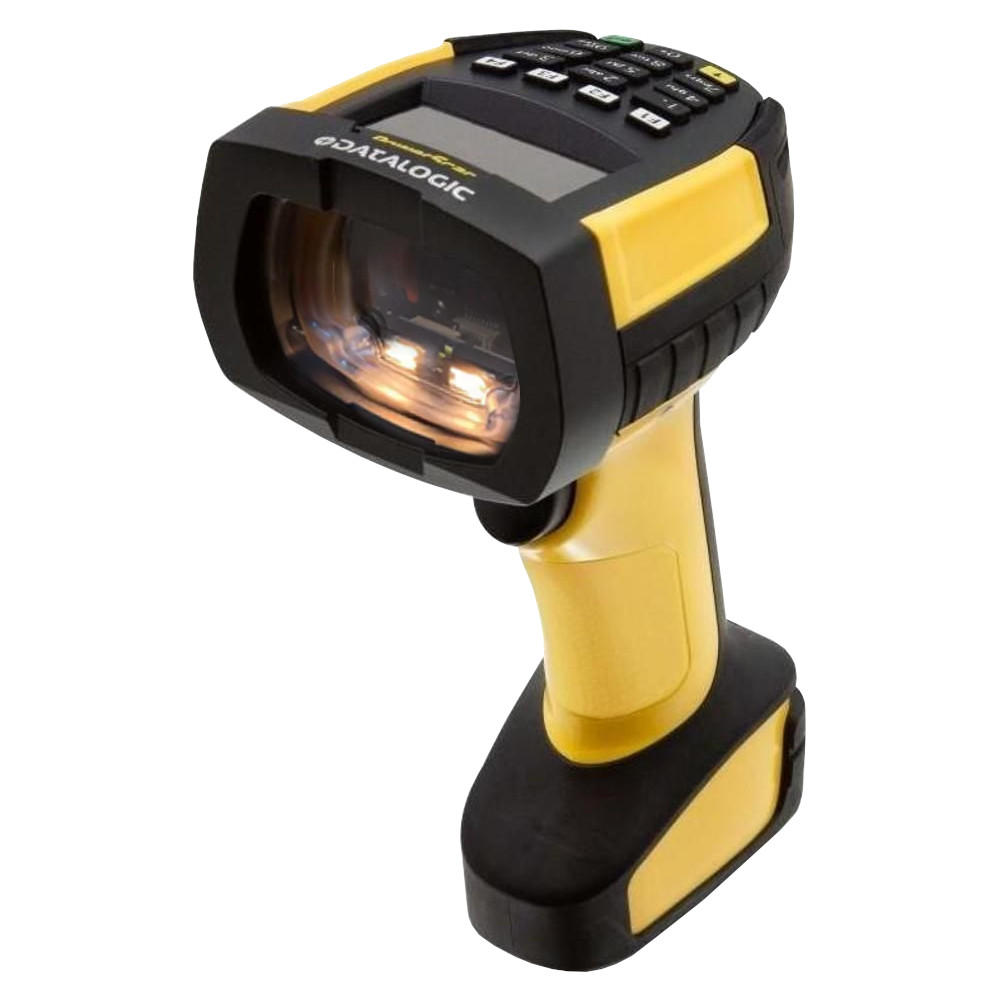

The Datalogic PowerScan PM9600-SR sets a new standard for high-performance industrial barcode scanning with its robust construction, ergonomic design, and wireless flexibility. Featuring Datalogic’s STAR Cordless System™ operating at 433 MHz, the PM9600-SR provides seamless communication with up to 150 m open-air range—perfect for high-throughput, high-volume environments.
This standard range (SR) model captures 1D and 2D barcodes with impressive speed and accuracy, making it ideal for general-purpose scanning across warehouses, logistics hubs, and production lines. The included RS-232 cradle ensures reliable wired interface connectivity, and the wireless inductive charging system minimises downtime and eliminates the risk of damaged charging contacts.
Product Features
- Standard range imager ideal for near-to-mid range barcode scanning
- Cordless connectivity using 433 MHz Datalogic STAR Cordless System™
- RS-232 interface cradle (BC9630-433) for robust industrial serial communication
- IP67/IP65-rated ultra-rugged scanner and cradle, built to withstand harsh environments
- Inductive wireless charging eliminates charging pins for improved reliability
- Reads all major 1D, 2D, stacked, postal, and composite barcode symbologies
- Motionix™ motion-sensing technology activates scanner based on operator movement
- 3GL™ (Three Green Lights), loud beeper, vibration and LED indicators for scan confirmation
- Ergonomic design with balanced weight for fatigue-free operation
- Modular base supports RS-232, USB, and Ethernet protocols for future expansion
Product Specifications
Specification | Details |
Model | PowerScan PM9600-SR |
Radio Frequency | 433 MHz STAR Cordless System™ |
Wireless Range (Open Air) | 150 m (low speed) / 100 m (high speed) |
Scan Engine | Standard Range Imager – 1D/2D/Stacked/Postal |
Resolution | 1D: 3 mil, 2D: 6 mil |
Battery Type | Removable Lithium-Ion 3350 mAh |
Reads per Charge | Up to 80,000 |
Charging | Inductive wireless via cradle |
Interfaces (via cradle) | RS-232 (included), USB, Ethernet (modular) |
IP Rating | IP67 (Scanner), IP65 (Cradle) |
Drop Resistance | 2.5 m @ 20°C; 2.0 m @ -20°C |
Ambient Light Tolerance | Up to 100,000 lux |
Dimensions (H x L x W) | 19.8 x 14.0 x 7.9 cm |
Weight | 425 g |
Operating Temperature | -20°C to 50°C |
Feedback | 3GL™, Green Spot, Vibration, Beeper, Dual LEDs |
Compliance | RoHS, REACH, China RoHS, CDRH Class II, IEC 62471 |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- Serial/RS232
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP67
- Logistics/Warehouse
- 3 Years
- New
