Description

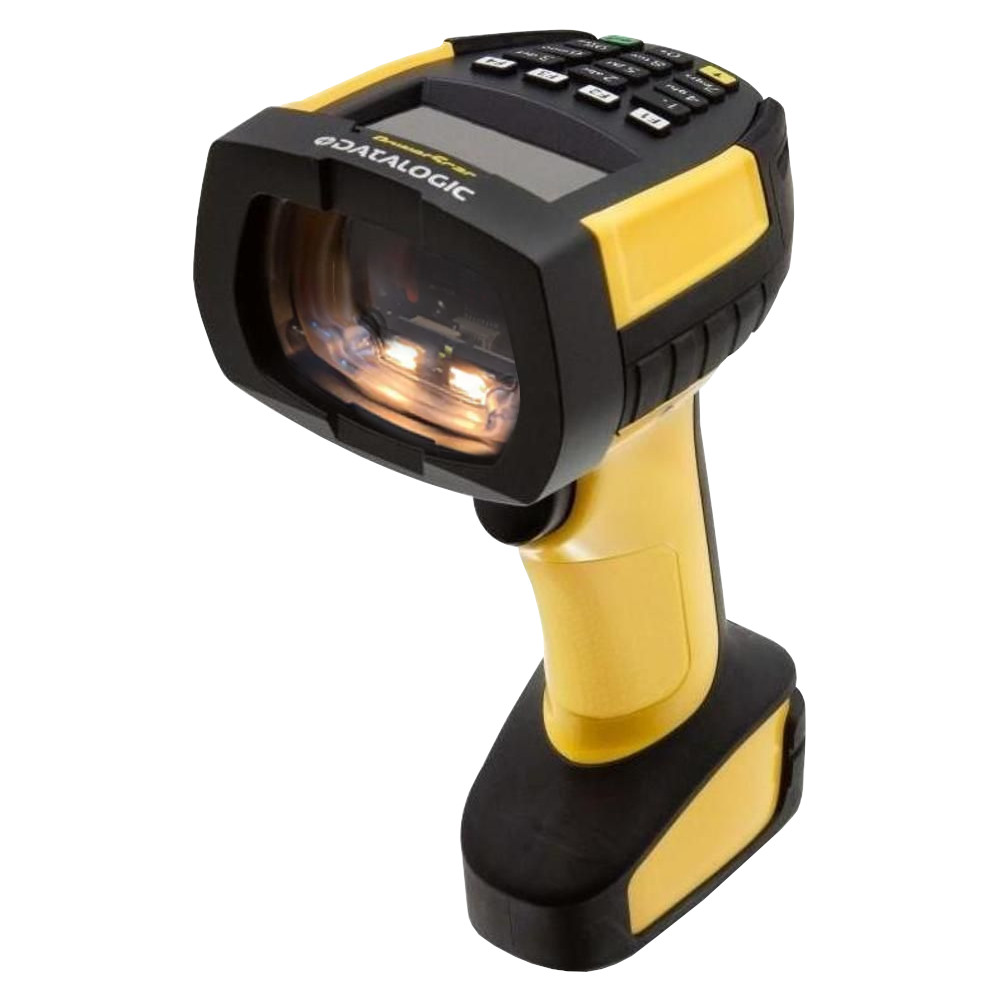

The Datalogic PowerScan PM9600-SR USB Kit is a top-tier industrial barcode scanning solution tailored for high-demand applications in manufacturing and logistics. Featuring the STAR Cordless System™ at 910 MHz, this Non-EU version ensures secure, long-range communication in dynamic warehouse and production environments.
This standard range cordless kit includes the PM9600-SR scanner, BC9630-910 base station, USB cable (CAB-552), power supply, and power cord, delivering a complete plug-and-play experience for industrial operators. Its ultra-rugged IP67/IP65 housing, high drop resistance (up to 2.5 m), and ergonomic design enable fatigue-free scanning with unbeatable durability.
With inductive wireless charging support, modular connectivity, and 80,000+ reads per battery cycle, the PM9600-SR offers maximum uptime, flexibility, and total cost-of-ownership reduction — perfect for time-critical barcode scanning workflows in the UK.
Product Features
- Complete USB kit: includes scanner, cradle, USB cable, power supply, and cord
- 910 MHz STAR Cordless System™ for wide-range wireless communication
- Standard Range 1D/2D imaging with fast omnidirectional decoding
- 80,000+ scans per charge with 3350 mAh removable lithium battery
- Wireless inductive charging eliminates contact wear and tear
- Modular base station (BC9630) supports multiple industrial interfaces
- Rugged build: IP67 scanner, IP65 cradle, withstands 2.5 m drops
- Ergonomic design and intuitive aiming system for fast scanning
- Equipped with Datalogic 3GL™, Green Spot, loud beeper, and vibration feedback
- Suitable for demanding UK manufacturing, warehousing, and logistics environments
Product Specifications
Specification | Details |
Model | PM9600-SR Standard Range USB Kit (Non-EU) |
Wireless Technology | 910 MHz STAR Cordless System™ |
Radio Range (Open Air) | Up to 230 m (low speed), 180 m (high speed) |
Battery | 3350 mAh Removable Li-ion, up to 80,000 scans per charge |
Charging | Wireless inductive charging via cradle |
Scan Engine | 1D/2D Imager, Standard Range |
Resolution | 1D: 3 mil, 2D: 6 mil |
Drop Resistance | 2.5 m at 20 °C, 2.0 m at -20 °C |
Sealing | Scanner: IP67, Cradle: IP65 |
Operating Temperature | -20°C to 50°C |
Interfaces (Cradle) | USB, RS-232, Keyboard Wedge, Ethernet, Industrial Protocols |
Dimensions (H x L x W) | 19.8 x 14.0 x 7.9 cm |
Weight | 425 g |
Visual Feedback | 3GL™, Green Spot, LEDs, Beeper, Vibration |
Software Tools | Datalogic Aladdin™, OPOS, JavaPOS |
Environmental Light | Up to 100,000 lux |
Compliance | RoHS, REACH, China RoHS, CDRH Class II, IEC 60825 |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- USB
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP67
- Logistics/Warehouse
- 3 Years
- New
