Description

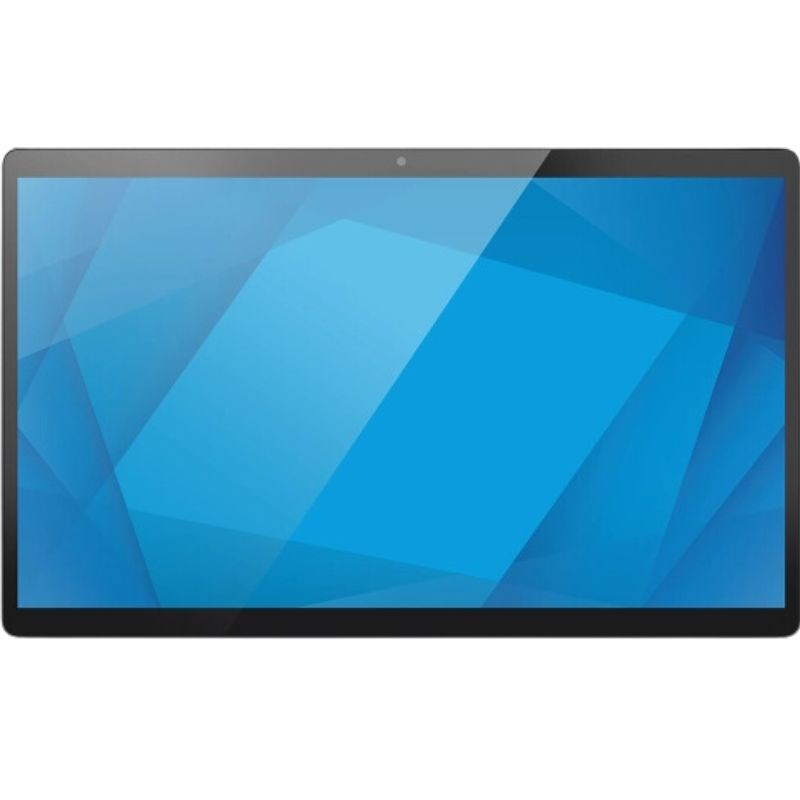

The Elo 17-inch I-Series 3 All-in-One Touch Computer delivers enterprise-grade reliability, performance, and versatility. Powered by Intel 12th Gen processors, this sleek and durable fixed tablet form factor supports Windows, ChromeOS Flex, and Linux operating systems. Featuring a 5:4 edge-to-edge projected capacitive (PCAP) 10-point touchscreen with anti-glare coating, the I-Series 3 is perfect for POS, interactive kiosks, self-service, and automation control applications. Its modular design supports multiple mounting options, including portrait, landscape, tabletop, and VESA configurations, with or without a stand. Equipped with comprehensive I/O ports and Elo Edge Connect™ compatibility, it integrates seamlessly with payment devices, barcode scanners, cameras, RFID readers, and more, providing an all-in-one solution for modern business environments
Product Features
- 17-inch 5:4 Full HD edge-to-edge PCAP touchscreen with 10-point multi-touch
- Intel 12th Gen Core i3 processor for responsive performance
- 8GB DDR5 RAM (expandable to 64GB) and 256GB M.2 PCIe SSD storage
- Anti-glare screen reduces reflections in bright environments
- Fanless, durable design with IP54 rating for dust and splash resistance
- Comprehensive I/O including RJ45 LAN, USB 3.0, micro USB, USB-C, audio, serial, and cash drawer ports
- Wireless connectivity: Wi-Fi 6E and Bluetooth 5.3 for seamless networking
- Elo Edge Connect™ compatible for peripherals such as barcode scanners, cameras, and payment devices
- Modular design with desktop stand included; supports 100mm VESA mounting
- TPM 2.0 security, Energy Star 8.0 certified, and regulatory approvals worldwide
Product Specifications
Feature | Specification |
Display | 17.0" / 431.8 mm diagonal TFT LED LCD |
Resolution | 1280 x 1024 @ 60Hz |
Touch | 10-point TouchPro® PCAP, Projected Capacitive |
Brightness | LCD: 250 nits; PCAP: 212.5 nits |
Viewing Angle | Horizontal 85°/85°, Vertical 80°/80° |
Graphics | Intel UHD Graphics |
Storage | 256GB M.2 PCIe (NVMe) SSD, 160 TBW |
Power | 24VDC external universal power supply, 180W max |
Mounting | 100mm VESA, with stand included |
Features
- Intel Core i3
- 8GB
- 17
- 256GB
- SSD
- Touch POS
- Capacitive
- Bluetooth
- WiFi
- Black
- Logistics/Warehouse
- 3 Years
- New
