Description

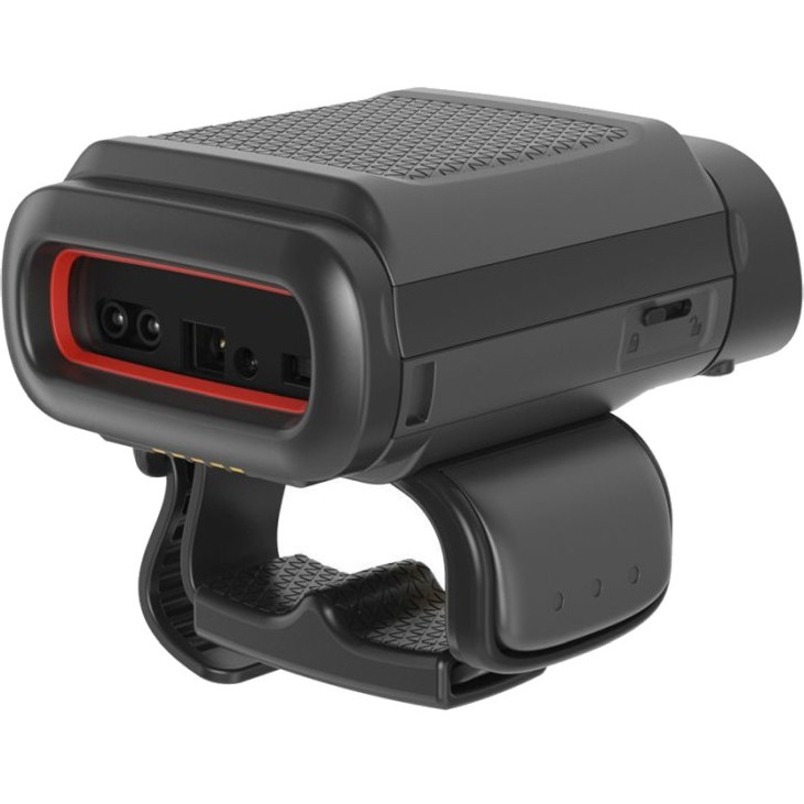

The Honeywell 8690iB Wearable RFID Mini Mobile Computer is a powerful, hands-free solution for scanning and RFID applications in demanding warehouse, logistics, and fulfilment environments. This EU model comes complete with a battery, triggered ring, and hook-and-loop strap, offering a ready-to-use ergonomic setup for high-frequency workflows.
Charger is sold separately and required for use.
With integrated RFID reading, 1D/2D barcode scanning, Wi-Fi connectivity, and interface customisation via SDK, the 8690iB replaces traditional handheld scanners, RFID readers, and mobile computers – streamlining operations into a single, compact device. Its advanced colour display, user-friendly interface, and rugged construction deliver maximum productivity and durability.
Product Features
- Multi-Function Device: Combines RFID reader, barcode scanner, and mobile computer in one wearable unit.
- RFID Support: Industry-standard EPC Global Class 1 Gen 2/ISO 18000-6C for comprehensive tag compatibility.
- Advanced Display & Controls: Colour display and two-button interface for interactive, hands-free workflows.
- Wi-Fi & Bluetooth® 5.0: High-speed data transfer, fast roaming (2.4/5 GHz), and easy NFC pairing.
- Ready-to-Use Configuration: Includes 3400 mAh battery, two-finger triggered ring, and adjustable strap.
- Customisable & Ergonomic: Optional glove-mount configuration available; strap allows for secure, comfortable use.
- Hot-Swappable Battery: Keeps running for 100 seconds during battery replacement, minimising downtime.
- Built Rugged: Survives 36 drops from 1.5 m and 2,000 tumbles at 0.5 m; IP54 sealed for harsh conditions.
- High Scan Performance: Fast omni-directional scanning with motion tolerance up to 584 cm/s.
Product Specifications
Specification | Details |
Model | Honeywell 8690iB Wearable RFID Mini Mobile (EU) |
Included Accessories | Triggered ring, hook-and-loop strap, battery |
Required Accessory | Charger (sold separately) |
Scan Engine | Omni-directional area imager (1D/2D) |
RFID Support | EPC Class 1 Gen 2/ISO 18000-6C, EU frequency (865–868 MHz) |
RFID Range | Up to 1 m (3.3 ft) read, 0.5 m (1.6 ft) write with glove auxiliary antenna |
Wireless Connectivity | Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.0, NFC |
Battery | 3.6 V, 3400 mAh, hot-swappable |
Operating Time | 6+ hour active shift (scanning every 4 sec) |
Charge Time | 3 hours (battery charger), 3.5 hours (device charger) |
Weight (with Ring) | 211g (7.4 oz) |
Dimensions | 95.7 mm x 56 mm x 39.4 mm (3.8 in x 2.2 in x 1.6 in) |
Environmental Rating | IP54, -20°C to 50°C operating temperature |
Durability | 36 drops from 1.5 m, 2,000 tumbles at 0.5 m |
Warranty | 2 years |
Features
- Wireless
- Rugged
- Ring Scanner
- 2D
- WiFi
- Standard Range
- Black
- Rugged/Heavy Duty
- Mid Level
- IP54
- Logistics/Warehouse
- 2 Years
- New
