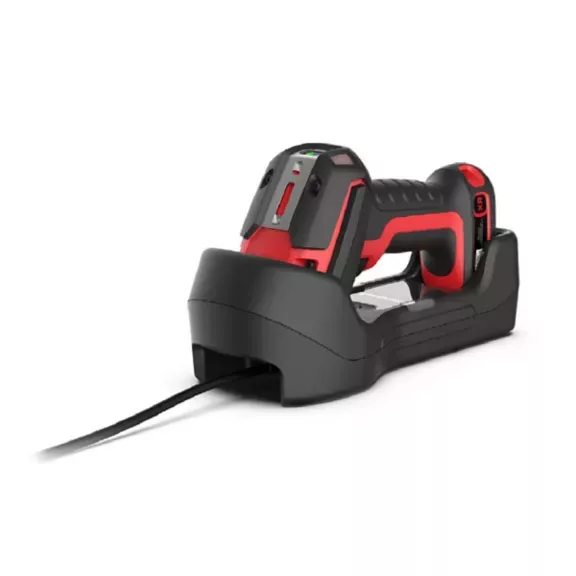

Honeywell Granit Ultra 2105iXR Bluetooth 1D/2D Rugged Barcode Scanner Kit with Horizontal Base – USB Kit

Wireless, Honeywell, Handheld, 2D, USB, Serial/RS232, Bluetooth, Standard Range, Red, Rugged/Heavy Duty, Industrial, IP68, Logistics/Warehouse, 3 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +44 174 960 8334
2105IXR-3USB-CLHR

Need Help

Choosing a Product
+44 174 960 8334 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Honeywell Granit Ultra 2105iXR Bluetooth barcode scanner redefines ultra-rugged performance for industrial environments. Built to withstand the toughest warehouse, logistics, and manufacturing conditions, this scanner delivers exceptional 1D and 2D scanning capabilities with FlexRange technology for superior read range—from up close to extended distances. Equipped with a contact-charging horizontal base, Bluetooth Class 1 wireless connectivity, and a long-lasting battery, the 2105iXR ensures high-speed data capture and flexibility for demanding workflows. Backed by Honeywell’s engineering and tested to MIL-STD-810G, this is the next-generation cordless barcode scanner that doesn't compromise on speed, durability, or ease of use.

Product Features

  • Rugged FlexRange Scanning – Efficiently scans both near and far barcodes with lightning-fast decoding performance.
  • Bluetooth Class 1 Connectivity – Enjoy wireless scanning with up to 100 metres of range for maximum mobility.
  • Ultra-Durable Design – Withstands 3m (10 ft) drops and 7,500 tumbles, IP65/IP68 rated for total dust and water protection.
  • High Performance Imaging – Advanced 1280x800 pixel area imager captures damaged, low-quality or high-density barcodes with ease.
  • Vibration Feedback – Provides tactile confirmation in loud or visually demanding environments.
  • Heavy-Duty Charging Base – Contact-based horizontal cradle supports 500,000 insertion cycles and efficient drop-in charging.
  • Long Battery Life – Delivers up to 100,000 scans per charge with a 3,300 mAh Li-ion battery.
  • Ergonomic & Intuitive Use – Designed for comfort over long shifts with sharp aimer, crisp illumination, and intuitive targeting.
  • Honeywell Data Format Editor – Allows custom multi-code formatting for streamlined workflow integration.
  • Out-of-the-Box Simplicity – Pre-configured settings and plug-and-play USB connectivity for quick deployment.


Product Specifications

Specification

Details

Scanner Model

Granit Ultra 2105iXR (2105IXR-3USB-CL)

Scan Type

Area Imager (1280x800 pixel array)

Connectivity

Bluetooth v4.2 (Class 1), USB

Range

Up to 100m (330 ft) line-of-sight

Scan Capabilities

1D, 2D, PDF, OCR, Postal, Digimarc, DOT Code

Scan Range (UPC 13 mil)

Up to 634 mm (24.96 in)

Motion Tolerance

Up to 4500 mm/s (177 in/s)

Environmental Sealing

IP65 & IP68

Drop Spec

3m (10 ft) on concrete, MIL-STD-810G

Tumble Rating

7,500 tumbles at 1m

Operating Temperature

-20°C to 50°C

Storage Temperature

-40°C to 70°C

Battery

3,300 mAh Li-ion; up to 100,000 scans per charge

Charging Base

Horizontal cradle (CCB23-100BT-07N), 500,000 cycles

Interface

USB, RS-232 TTL, Keyboard Wedge

Feedback

LEDs, Vibration, Beeper

Warranty

3 Years (Scanner)



Features

Connectivity:
  • Wireless
Brand:
Honeywell
Form Factor:
  • Handheld
Scan Engine/Technology:
  • 2D
Interface:
  • USB
  • Serial/RS232
  • Bluetooth
Scan Range:
  • Standard Range
Colour:
  • Red
Rugged:
  • Rugged/Heavy Duty
Usage:
  • Industrial
IP Rating:
  • IP68
Industry/Vertical:
  • Logistics/Warehouse
Warranty:
  • 3 Years
Product Type/Condition:
  • New

Attachments

Brochure (4807-datasheet.pdf, 156 Kb) [Download]
