Description
Designed for the toughest industrial environments, the Honeywell Granit Ultra 2105iXR RS232 Kit delivers next-generation scanning with unmatched durability and performance. Featuring advanced Bluetooth connectivity, ultra-rugged construction, and FlexRange scanning technology, this industrial-grade scanner excels in warehouses, distribution centres, and manufacturing plants.

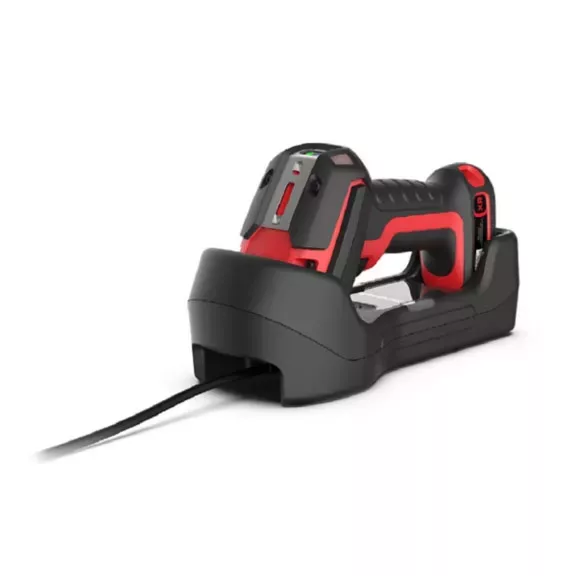

This comprehensive EU kit includes the 2105iXR-3SER-CL red scanner, BAT-SCN11 Li-ion battery, RS232 interface cable (CBL-020-300-C00), and horizontal base (CCB23-100BT-07N) for contact charging. With its deeply recessed, scratch-resistant scan window, IP65/IP68 sealing, and support for 1D, 2D, OCR, Postal, and Digimarc codes, the Granit Ultra is ready for any scanning task—no matter how demanding.
Product Features
- Ultra-Rugged Design: Survives 3m drops, 7,500 tumbles, and extreme temperatures from -30°C to 50°C
- Bluetooth v4.2 Connectivity: Class 1 range up to 100m line of sight
- FlexRange Area Imager: 1280x800 pixel array scans from contact up to over 1 metre
- Unmatched Durability: IP65/IP68 sealed scanner and IP65 charging base
- Massive Battery Life: 3,300mAh battery delivers up to 100,000 scans per charge
- Advanced Decoding: Reads 1D, 2D, PDF417, DataMatrix, QR Code, Postal, DOT Code, Digimarc, OCR
- Smart Indicators: Beeper, Vibration, Good Decode LED, Battery and Bluetooth status LEDs
- Contact Charging: Durable base supports 500,000 insertion cycles
- Ergonomic & Intuitive: Comfortable grip, focused illumination, sharp aimer, multi-code reading
- Kit Includes: Red scanner, battery, RS232 cable, horizontal charging base (EU)
Product Specifications
Feature | Specification |
Scanner Model | Honeywell Granit Ultra 2105iXR-3SER-CL |
Connectivity | Bluetooth v4.2, RS232 (Serial) |
Scan Engine | Area Imager (1280x800 pixels), FlexRange |
Supported Codes | 1D, 2D, Postal, Digimarc, OCR, DOT Code |
Range | Up to 1033 mm (20 mil C128); as close as 0 mm |
Motion Tolerance | Up to 4500 mm/s |
Environmental Sealing | Scanner: IP65/IP68; Base: IP65 |
Drop Resistance | 3m drops, 7500 tumbles @1m, MIL-STD-810G |
Battery Capacity | 3,300 mAh Li-ion |
Battery Life | Up to 100,000 scans or 14 hours at 2 scans/sec |
Charging Time | <4 hours (USB BC1.2 / 5V 3A); <12 hours (USB 2.0) |
Interface | RS232, USB, Keyboard Wedge |
Operating Temperature | -20°C to 50°C |
Storage Temperature | -40°C to 70°C |
Humidity Tolerance | Up to 95% RH, non-condensing |
Dimensions (Scanner) | 194.8mm x 76mm x 139.5mm |
Dimensions (Base) | 250.1mm x 102mm x 80.7mm |
Weight (Scanner/Base) | 425g / 357g |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- USB
- Serial/RS232
- Bluetooth
- Standard Range
- Red
- Rugged/Heavy Duty
- Industrial
- IP68
- Logistics/Warehouse
- 3 Years
- New
