Description

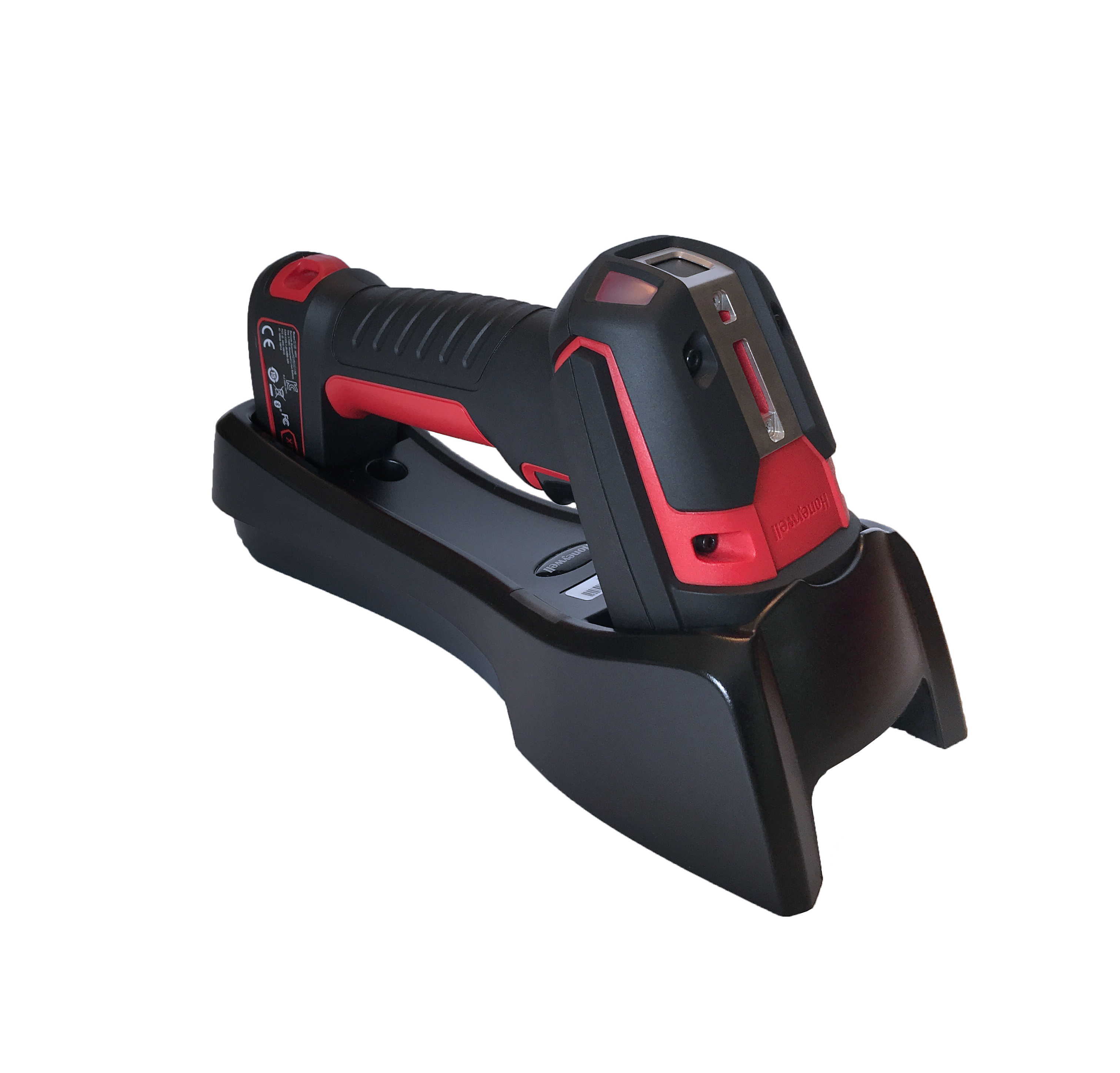

The Honeywell Granit XP 1990iSR USB Kit is a corded, ultra-rugged industrial barcode scanner engineered for high-speed, high-volume scanning in tough environments. Designed with eXtreme Performance (XP) imaging technology, this area imager delivers fast and accurate reading of 1D, 2D, PDF417, and postal barcodes—even if they are damaged or poorly printed.
With a 3-metre USB cable, IP67/IP65-rated durability, and drop resistance up to 3 metres, the Granit XP 1990iSR thrives in warehouses, logistics hubs, and harsh industrial conditions. The deeply recessed scan window and vibration feedback ensure optimal performance in high-noise areas, making this scanner a powerful, cost-effective solution for mission-critical scanning.
Product Features
- Corded USB Connectivity: Tethered design with 3m USB cable for direct and reliable data transfer
- Ultra-Rugged Housing: Withstands 3m drops, 7,000 tumbles, and harsh temperatures
- Area Imager Technology: 1280 x 800 pixel resolution with high-motion tolerance for fast-paced scanning
- Versatile Decoding: Reads all standard 1D, 2D, PDF417, Postal, OCR, Digimarc, and DOT codes
- Superior Feedback System: LED indicators, loud beeper, and adjustable vibration motor
- Extreme Environment Ready: IP67/IP65 rated for protection against dust and water ingress
- Reliable Performance in Cold Storage: Operates from -30°C to 50°C, ideal for industrial freezers
- Low Total Cost of Ownership: Durable design reduces breakage and service costs
- Plug & Play Kit: Includes 1990iSR-3 red scanner and USB 3m straight cable (CBL-500-300-S00)
- Ideal for High-Volume Scanning: Built for continuous use in demanding workflows
Product Specifications
Category | Specification |
Model | Granit XP 1990iSR |
Scanner Type | Corded Area Imager (Standard Range) |
Resolution | 1280 x 800 pixels |
Supported Symbologies | 1D, 2D, PDF417, Postal, OCR, Digimarc, DOT Code |
Motion Tolerance | Up to 4500 mm/s (177 in/s) |
Connectivity | USB (Tethered) |
Interface Support | USB, RS-232 TTL, Keyboard Wedge |
Drop Resistance | 3m (10ft) MIL-STD-810G tested |
Tumble Test | 7,000 tumbles from 1m |
Environmental Rating | IP67, IP65 |
Operating Temp. | -30°C to 50°C |
Storage Temp. | -40°C to 70°C |
Scan Angle | Horizontal 40°, Vertical 30° |
Print Contrast | 20% minimum reflectance |
User Feedback | Beeper, LED, Vibration |
Power Requirement | 2.35W operating; 0.5W standby @ 5VDC |
Dimensions | 192 x 76 x 100 mm |
Weight | 320g |
Included Accessories | 3m USB Cable (CBL-500-300-S00) |
Warranty | 3 Years (Scanner) |
