Description

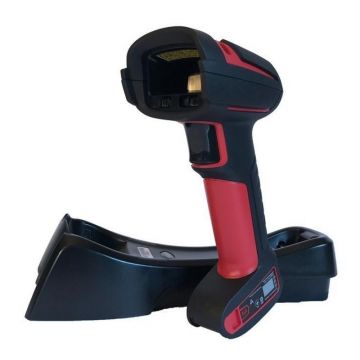

Engineered for the most demanding industrial environments, the Honeywell Granit™ XP 1990iXLR is an ultra-rugged handheld barcode scanner that delivers extreme performance scanning across standard to ultra-long ranges. Designed with Honeywell’s FlexRange XLR technology, this scanner can capture UPC codes up to 2 metres and rack labels up to 24 metres away. It excels in reading damaged or low-quality 1D and 2D barcodes, even in low light and high-impact conditions.
Ideal for warehouses, distribution centres, and manufacturing facilities, the Granit XP 1990iXLR comes with industry-leading durability—surviving 3m drops, 7,000 tumbles, and boasting IP67 and IP65 environmental sealing. This USB kit includes the red scanner, contact charging base, battery, and USB cable, offering a complete out-of-the-box solution (note: industrial cable sold separately).
Product Features
- Extreme Long-Range Scanning: FlexRange XLR scans from near contact up to 24 metres, ideal for high shelving and warehouse racking.
- Ultra-Rugged Design: Withstands 3m (10ft) drops, 7,000 tumbles, and harsh environments, reducing service costs and downtime.
- Superior Barcode Reading: Reads poor-quality, damaged, or low-contrast barcodes quickly and accurately.
- Industrial-Grade Sealing: IP67/IP65 sealing ensures resistance against dust and moisture for reliable field performance.
- Dual Imager Technology: Uses a 1280×800 near-field sensor and 1920×1080 long-range sensor for fast capture at any distance.
- User Feedback Options: Features adjustable beep volume, LED indicators, and vibration feedback for loud work environments.
- Honeywell SMU & Operational Intelligence: Enables easy deployment, updates, and scan analytics to improve workflow.
- Complete USB Kit Included: Comes with scanner (1991iXLR-3), contact charging base (CCB22-100BT-03N), USB cable (CBL-500-300-S00), and battery (BAT-SCN05).
- Multi-Interface Support: Compatible with USB, Keyboard Wedge, and RS-232 TTL systems.
Product Specifications
Specification | Details |
Scanner Model | Granit XP 1990iXLR (Corded) |
Scan Technology | Area Imager (Near: 1280x800; Far: 1920x1080) |
Decode Capabilities | 1D, 2D, PDF417, Postal, OCR, Digimarc, DOT Code |
Motion Tolerance | Up to 4500 mm/s (177 in/s) |
Print Contrast | Minimum 20% reflectance difference |
Scan Range | UPC up to 2m; 100 mil labels up to 24m |
Drop Resistance | 3 m (10 ft) drop; 7,000 1 m tumbles |
Sealing | IP67 and IP65 rated |
Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
Connectivity | USB, RS232, Keyboard Wedge |
Power Input (Corded) | 4.0 to 5.5 VDC; 2.35 W operating, 0.5 W standby |
User Feedback | LED, beeper, vibration (all adjustable) |
Kit Components | Scanner, Contact Charging Base, USB Cable, Battery |
Dimensions (L x W x H) | 192 mm x 76 mm x 100 mm (7.6 in x 3.0 in x 3.9 in) |
Weight (Corded) | 320 g (11.3 oz) |
Warranty | 3 years (Scanner), 1 year (Battery) |
