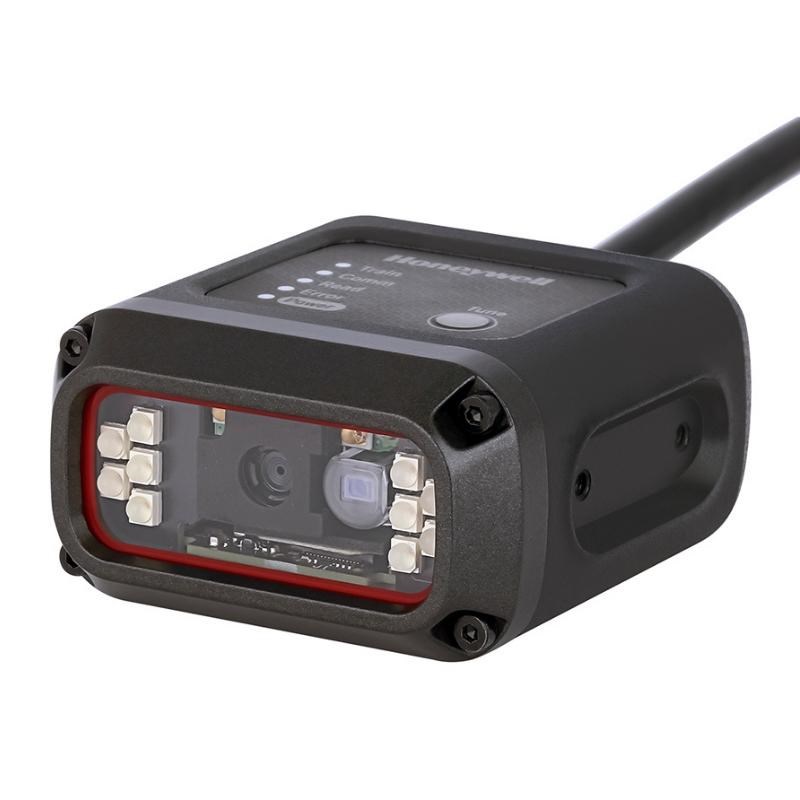

Honeywell HF800 Fixed-Mount 2D Industrial Barcode Reader – ER Focus, Horizontal Mount, IP65-Rated

The Honeywell HF800 Fixed-Mount 2D Industrial Barcode Reader is engineered for high-performance scanning in demanding production and logistics environments. Designed with ER focus for extended range scanning, this compact, horizontally mounted reader delivers exceptional decoding capabilities for 1D, PDF417, and 2D barcodes, including difficult Direct Part Marks (DPM) on metal, plastic, and other challenging surfaces. Featuring a 500K-pixel global shutter imager with 60 fps capture speed, built-in red LED illumination, and advanced DPM decoding algorithms, the HF800 ensures consistent accuracy even in harsh industrial settings. With IP65-rated zinc alloy housing, multiple connectivity options, and AutoLearn one-button configuration, it’s perfect for PCB tracking, food production management, and carton label verification in manufacturing and logistics operations.

Product Features

• High-performance ER focus for extended scanning range.
• Reads all major 1D, PDF417, and 2D barcodes, including DPM on difficult surfaces.
• 500K-pixel CMOS global shutter imager with 60 fps capture rate.
• Built-in red LED illumination for enhanced contrast and accuracy.
• Compact horizontal mount design for tight industrial spaces.
• IP65-rated zinc alloy housing for dust and water protection.
• AutoLearn one-button setup for quick and simple configuration.
• Multiple interfaces: RS232, RS485, and Ethernet with I/O support.
• Available in 0° and 90° models with HD, SR, and ER variants.
• Suitable for harsh environments in manufacturing, logistics, and food processing.
