Description

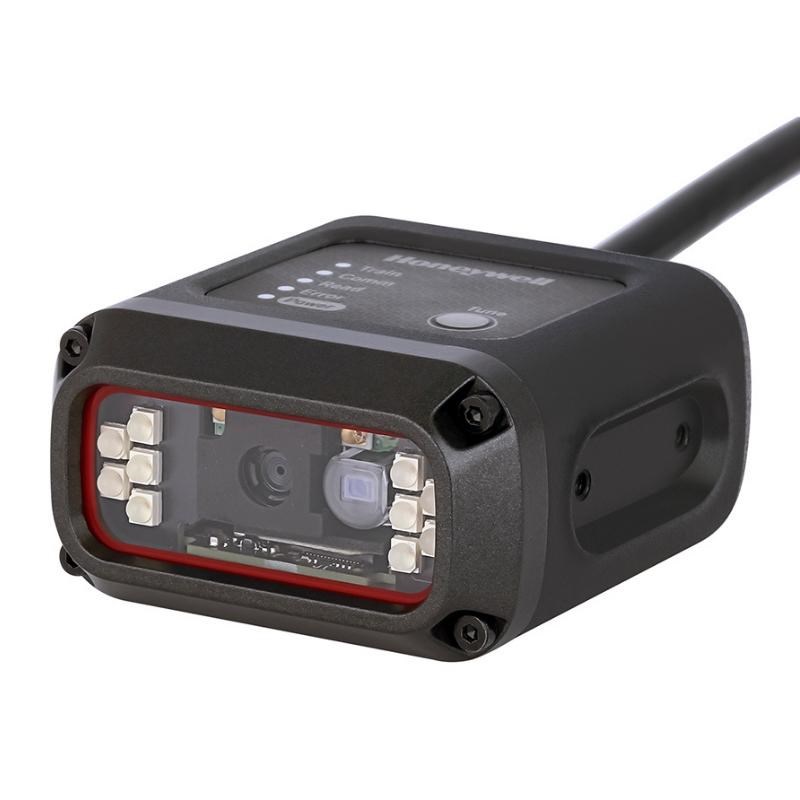

The Honeywell HF800 is a high-performance fixed-mount industrial barcode reader engineered for demanding production and logistics environments. Designed to deliver exceptional decoding accuracy, it effortlessly reads all major 1D, PDF417, and 2D barcodes, including challenging Direct Part Mark (DPM) codes on metal, plastic, and printed labels. Equipped with a 500K-pixel global shutter imager and 60 fps capture speed, the HF800 ensures rapid, precise scanning for fast-paced manufacturing lines, PCB tracking, food production, and logistics quality control.
With its compact form factor and choice of 0° or 90° mounting, the HF800 fits seamlessly into tight spaces, while the IP65-rated zinc alloy housing withstands dust, moisture, and harsh industrial conditions. Its built-in DataMax software and AutoLearn button make setup quick and simple, reducing downtime. Available in HD, SR, and ER models to suit different scanning distances, the HF800 also supports versatile connectivity with RS232, RS485, Ethernet, and programmable I/O ports for seamless integration.
Product Features
- Advanced DPM Capability – Reads tough DPM codes with 500K-pixel imager, global shutter, and red LED illumination.
- Fast Image Capture – 60 frames per second for high-speed industrial applications.
- Versatile Model Options – Available in HD, SR, and ER variants for different focal ranges.
- Flexible Mounting – 0° (horizontal) and 90° (vertical) designs for varied installation needs.
- Compact, Durable Build – Zinc alloy housing with IP65 rating for harsh environments.
- Simple Setup – DataMax software with AutoLearn function enables one-button configuration.
- Multi-Interface Support – RS232, RS485, Ethernet, and programmable I/O ports.
- Wide Barcode Support – Reads 1D, PDF417, and 2D symbologies including QR Code, Data Matrix, and Aztec.
- Industrial-Grade Reliability – Withstands temperatures from 0°C to 50°C in operation.
- Optimised for Multiple Industries – Ideal for manufacturing, logistics, electronics, and food production.
Product Specifications
| Specification | Details |
| Imager Type | 838 × 640 CMOS, Global Shutter |
| Image Capture Speed | 60 fps |
| Resolution | 500K pixels |
| Lighting | Built-in red LED |
| Mounting Options | 0° (Laser aimer) / 90° (LED aimer) |
| Power Supply | 10VDC – 30VDC, Max 5W |
| Housing Material | Zinc Alloy |
| Weight | Horizontal: 210 g; Vertical: 265 g |
| IP Rating | IP65 |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
Features
- Wired
- Non-rugged
- Fixed Mount
- 2D
- USB
- Serial/RS232
- Standard Range
- Black
- General purpose
- Entry Level
- IP65
- Logistics/Warehouse
- 1 Year
- New
