Description

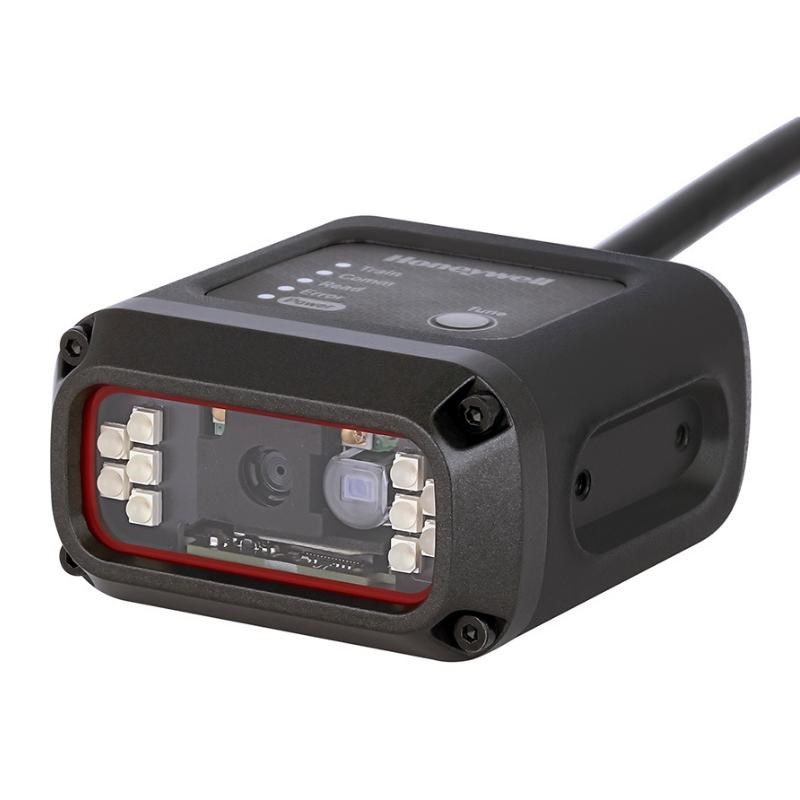

The Honeywell HF800 Fixed-Mount 2D Industrial Barcode Reader is engineered for precision, speed, and durability in demanding industrial environments. Designed for stationary applications, the HF800 delivers exceptional scanning performance for 1D, PDF417, and 2D barcodes — even the most challenging direct part marks (DPM) on metals, plastics, or etched surfaces.
With its 500K-pixel resolution imager, 60 fps capture speed, and advanced DPM decoding algorithm, the HF800 ensures rapid, accurate data capture in production tracking, electronics assembly, food manufacturing, and logistics operations. Its compact form factor enables installation in tight spaces, while the IP65-rated zinc alloy housing offers superior protection against dust and water.
Equipped with AutoLearn technology and DataMax configuration software, the HF800 allows simple, one-button setup for maximum efficiency. Multiple connectivity options — including RS232, RS485, Ethernet, and I/O ports — ensure seamless integration into various industrial automation systems.
Product Features
- High-Performance DPM Decoding – Reads challenging direct part marks and high-density barcodes with precision.
- 500K-Pixel Imager with 60 fps Capture – Ensures rapid, accurate barcode reading for high-throughput environments.
- SR Focus Version – Optimised for standard-range scanning distances, ideal for versatile industrial applications.
- Compact, Durable Design – Space-saving housing with rugged zinc alloy build for harsh environments.
- IP65 Protection – Dust-tight and water-resistant for reliable operation in tough conditions.
- Easy One-Button Setup – AutoLearn function allows quick configuration without complex programming.
- Versatile Mounting Options – 0° and 90° versions for vertical or horizontal installation flexibility.
- Multiple Connectivity Interfaces – RS232, RS485, Ethernet, and programmable I/O ports.
- Wide Application Range – Suitable for electronics manufacturing, food production, logistics, and packaging lines.
- Multiple Model Variants – Available in HD, SR, and ER versions to match different working distances.
Product Specifications
| Specification | Details |
| Image Sensor | 838 x 640 CMOS, global shutter |
| Resolution | 500K pixels |
| Frame Rate | 60 fps |
| Focus Type | SR (Standard Range) |
| Illumination | Built-in red LED |
| Mounting Options | 0° (Laser aiming) / 90° (LED aiming) |
| Connectivity | RS232, RS485, Ethernet, I/O ports |
| Power Input | 10–30 VDC |
| Power Consumption | Max 5 W |
| Housing Material | Zinc alloy |
| Weight | Horizontal: 210 g / Vertical: 265 g |
| Environmental Sealing | IP65 |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
Features
- Wired
- Non-rugged
- Fixed Mount
- 2D
- USB
- Standard Range
- Black
- General purpose
- Entry Level
- IP65
- Logistics/Warehouse
- 1 Year
- New
