Description

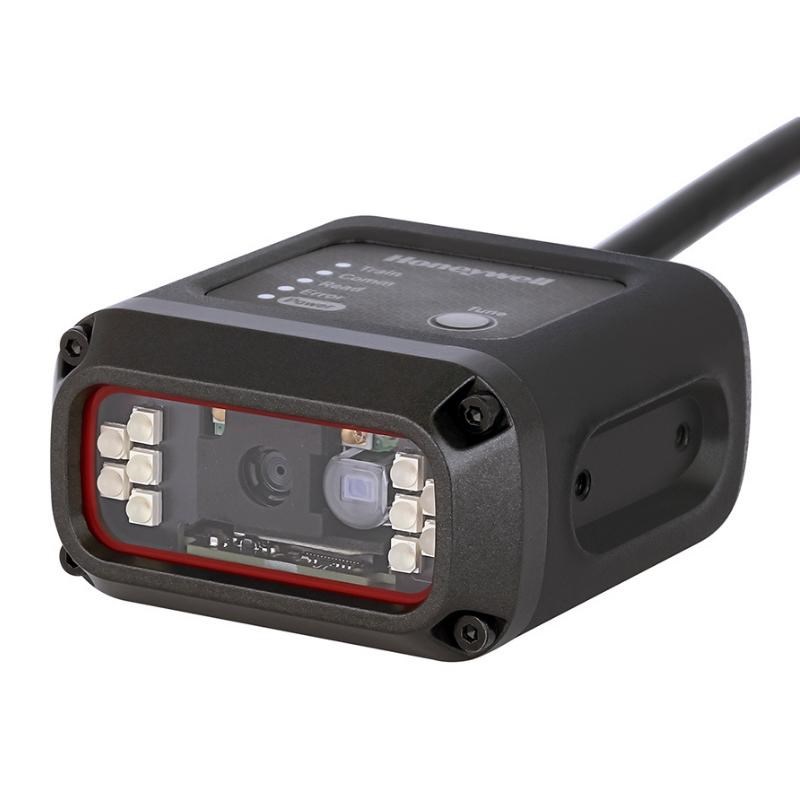

The Honeywell HF800 SR Focus Fixed-Mount 2D Industrial Reader delivers exceptional barcode reading performance for all 1D, PDF417, and 2D codes, including the most challenging Direct Part Mark (DPM) applications. Designed for production data tracking, precision electronics inspection, food production process control, and logistics barcode verification, the HF800 ensures reliable scanning even in harsh industrial environments.
Equipped with a 500K-pixel global shutter imager running at 60 fps, a built-in red LED light source, and Honeywell’s advanced DPM decoding algorithms, the HF800 captures high-quality images with unmatched accuracy. Its compact zinc-alloy housing and IP65-rated protection make it ideal for space-constrained setups while resisting dust, moisture, and industrial contaminants.
Featuring multiple connectivity options, including Ethernet, RS232, RS485, and programmable I/O ports, the HF800 offers versatile integration into any automated system. The AutoLearn function and DataMax software enable quick, one-button configuration, minimizing setup time and maximizing productivity.
Product Features
- Advanced DPM Decoding – Reads challenging direct part marks and high-density barcodes with exceptional accuracy.
- High-Speed Imaging – 500K-pixel CMOS global shutter imager with 60 fps capture rate for rapid scanning.
- SR Focus Version – Optimised for standard-range scanning applications.
- Compact, Rugged Design – Zinc-alloy housing with IP65 rating for use in harsh industrial conditions.
- Versatile Mounting Options – Horizontal (0°) configuration for space-limited production environments.
- Multi-Interface Connectivity – Ethernet, RS232, RS485, and programmable I/O for seamless integration.
- AutoLearn Function – One-button setup simplifies configuration for fast deployment.
- Flexible Model Variants – Available in HD, SR, and ER focus types to suit different distances and applications.
- Bright Aiming Indicators – Laser or LED targeting for precise positioning in all lighting conditions.
- Industrial-Grade Reliability – Wide operating temperature range and durable construction for continuous use.
Product Specifications
| Specification | Details |
| Mount Type | Horizontal (0°) |
| Focus Type | SR (Standard Range) |
| Image Sensor | 838 × 640 CMOS, Global Shutter |
| Frame Rate | 60 fps |
| Resolution | 500K pixels |
| Lighting | Built-in red LED light source |
| Housing Material | Zinc alloy |
| Dimensions | 54.5 × 52.5 × 29 mm (Horizontal) |
| Weight | 210 g |
| Power Supply | 10–30 VDC |
| Power Consumption | Max 5 W |
| Aiming Device | Laser (Horizontal model) |
| Protection Rating | IP65 |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
Features
- Wired
- Non-rugged
- Fixed Mount
- 2D
- Serial/RS232
- Standard Range
- Black
- General purpose
- Entry Level
- IP65
- Logistics/Warehouse
- 1 Year
- New
