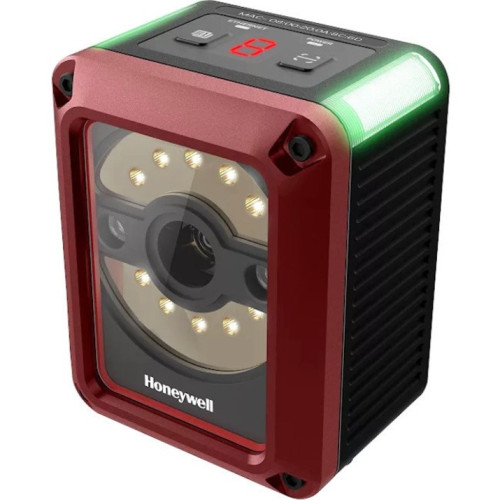

Honeywell HF811 Fixed Industrial Scanner – 2MP, Narrow FOV, White LED, IP65, RS232

The Honeywell HF811 Fixed Industrial Scanner with 2MP resolution, narrow field of view, and white LED illumination is purpose-built for high-precision scanning in compact industrial spaces. With its enhanced decoding technology and support for DPM (Direct Part Marking), it offers exceptional performance on etched, dot-peened, or printed barcodes—even those on reflective or uneven surfaces.

Compact yet rugged, the IP65-rated HF811 easily integrates into package sorting, assembly lines, and light manufacturing workflows, offering high-performance scanning with flexible connectivity via RS232, RS485, TCP/IP, Profinet, Ethernet/IP, and Modbus TCP. Its liquid lens delivers fast, adaptive autofocus for high-speed scanning accuracy in automated systems.

The white LED illumination ensures strong barcode contrast across various surfaces, making it ideal for general-purpose applications where material colour or reflectivity varies. Easy to configure via DataMax Plus and fine-tuned with the Autotune feature, this scanner reduces setup time and ensures peak performance.

Product Features

• 2 Megapixel Sensor: High-resolution imaging for fine barcodes and detailed inspection.
• Narrow Field of View (FOV): Ideal for applications requiring focused, precise scanning.
• White LED Illumination: Maximises barcode contrast across different materials.
• Compact & Rugged: Small footprint fits into tight automation spaces, with IP65 protection.
• Advanced DPM Decoding: Decodes direct part marks on metal, plastic, or composite parts.
• Liquid Lens Autofocus: Smooth and accurate focus adjustment with no mechanical wear.
• Flexible Integration: Supports RS232, RS485, TCP/IP, Profinet, Ethernet/IP, and Modbus TCP.
• Autotune Optimisation: One-button setup for optimal scan performance.
• DataMax Plus Software: Simplified configuration and deployment.
• 3-Year Factory Warranty: Assured long-term industrial reliability.

Product Specifications
