Description

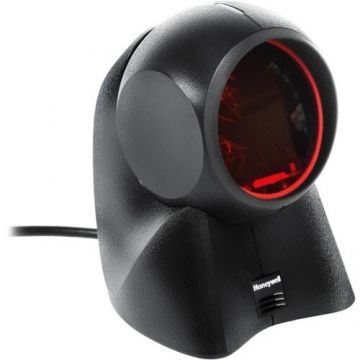

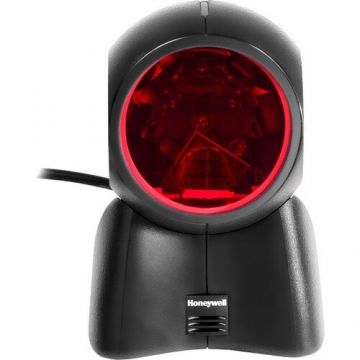

The Honeywell Orbit 7190g is a powerful hybrid presentation scanner that merges omnidirectional laser scanning and area imaging in one sleek, compact unit. Designed to handle both traditional product barcodes and digital barcodes on customer smartphones, the Orbit 7190g delivers seamless scanning at checkout counters with speed and precision.
Ideal for busy retail environments, this scanner combines the robust performance of a hands-free laser scanner with advanced digital barcode reading—without the need for a second device. The award-winning Orbit design offers a tilt-adjustable scanning head for improved flexibility and ease when scanning large or bulky items.
Thanks to dual-mode scanning technology, the Orbit 7190g automatically adapts between merchandise and mobile barcode scanning, reducing checkout time and enhancing customer satisfaction. It's a plug-and-play solution with multiple interface compatibility, auto-detection, and USB-powered operation—making installation a breeze.
Product Features
- Hybrid Scanning Technology – Combines laser and area imaging for 1D, 2D, and mobile barcode reading.
- Hands-Free Operation – Omnidirectional scanning allows effortless pass-through barcode reading.
- Dual Modes Design – Automatically switches between item scanning and smartphone barcode capture.
- Tilt-Adjustable Head – 30° adjustable scanning head for larger items and unique angles.
- Ultra-Fast Scanning Speed – Omnidirectional scanning delivers up to 1120 scan lines per second.
- Compact & Stylish Design – Ideal for space-constrained retail environments.
- Plug & Play Setup – Auto interface detection with USB, RS232, Keyboard Wedge, and IBM468xx.
- USB Powered – Simplifies setup with no need for an external power supply.
- Durable Build Quality – Withstands 1.2 m drops, sealed against dust and particulates.
- EAS Model Available – Compatible with integrated RF EAS security systems.
Product Specifications
| Product Type | Presentation Barcode Scanner |
| Scan Technology | Omnidirectional Laser & Area Imager |
| Scan Speed | Laser: 1120 scan lines/sec, Imager: 30 FPS |
| Decode Capability | 1D, GS1 DataBar, PDF417, 2D (QR, DataMatrix) |
| Scan Resolution | Laser: 5 mil; Imager: 1D: 4 mil, 2D: 6.7 mil |
| Typical Read Range | Up to 327 mm (varies by barcode type) |
| Scan Angle (Imager) | Horizontal: 40°, Vertical: 30.5° |
| Pitch / Skew | Laser: 60°/60°, Imager: 60°/70° |
| Symbol Contrast | 35% minimum reflectance difference |
| Dimensions (L x W x H) | 108 mm x 103 mm x 148 mm |
| Weight | 410 g |
| Host Interfaces Supported | USB, RS-232, Keyboard Wedge, IBM468xx (RS485) |
| Input Voltage | 5 VDC ± 0.25 V |
| Operating Power | 472 mA @ 5 V |
| Environmental Protection | Sealed against airborne particles |
| Operating Temp. | 0°C to 40°C |
| Drop Resistance | Withstands drops from 1.2 m |
| Humidity Tolerance | 5% to 95% RH, non-condensing |
| Warranty | 3-Year Manufacturer Warranty |
Features
- Wired
- In Counter
- Omnidirectional
- 2D Imager
- 1D Laser
- USB
