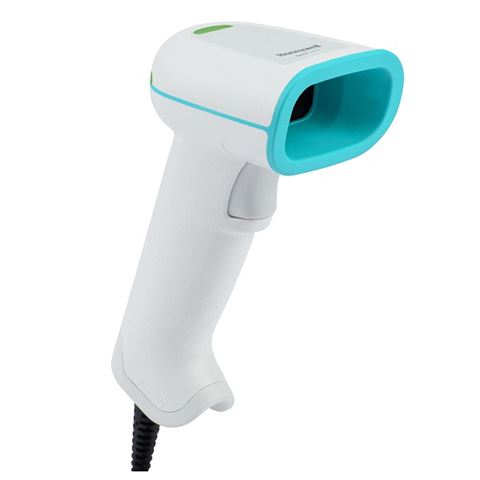

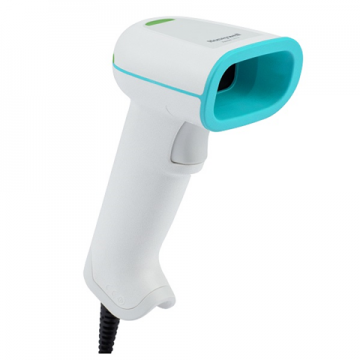

Honeywell Xenon Ultra 1960h HD USB Healthcare Barcode Scanner Kit – Anti-Microbial Housing, 1D/2D, 3m USB Cable – White

Wired, Non-rugged, Honeywell, Handheld, 2D, USB, Standard Range, White, General purpose, Entry Level, IP52, Healthcare, 5 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +441749608334
1960HHD-5USB-R

Need Help

Choosing a Product
+441749608334 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Honeywell Xenon Ultra 1960h Healthcare Barcode Scanner is purpose-built for clinical environments where hygiene, accuracy, and reliability are critical. Featuring advanced HD optics and a white anti-microbial housing, the 1960h is engineered to meet the strict standards of modern healthcare institutions. It delivers fast, precise scanning of 1D/2D barcodes, including on curved surfaces, patient wristbands, and medication packaging – even in low contrast or damaged conditions.

This scanner supports USB connectivity and includes a 3m straight USB Type A cable (CBL-500-300-S00), providing ample reach in hospital rooms and labs. Designed to endure frequent disinfecting, the smooth, crevice-free body minimises the risk of bacterial growth. With features like patient-friendly vibration feedback and do-not-disturb scanning modes, it enhances clinician workflow without compromising patient comfort.

Ideal for use in hospitals, clinics, laboratories, and other healthcare settings across the EMEA region.

Product Features

  • Anti-Microbial White Housing: Designed with silver-ion additives to resist microbial growth and support infection control protocols.
  • High-Density (HD) Scan Engine: Accurately reads tiny, low-contrast, or damaged 1D and 2D barcodes, including Data Matrix and PDF417.
  • Enhanced Comfort Modes: Includes vibration feedback, Scan Lamp, and “Do-Not-Disturb” options to support patient-centric care.
  • Green Dot Aimer: Improves scanning precision for quicker and more accurate targeting in all lighting conditions.
  • Built to Withstand Disinfectants: Housing supports regular wipe-downs with hospital-grade cleaning agents.
  • Flexible Connectivity: Includes a USB Type A 3m straight cable (CBL-500-300-S00) for plug-and-play deployment.
  • Durability Assured: IP52-rated sealing, 1.8m drop resistance, and 2,000 tumbles at 0.5m.
  • Honeywell Scanner Management Utility (SMU): Simplifies large-scale deployment and firmware updates.


Product Specifications

Specification

Details

Scanner Type

Corded handheld

Scan Engine

HD (High Density) 1D/2D Imager

Housing Material

White anti-microbial enclosure

Motion Tolerance

HD: 3.4 m/s

Image Sensor

1280 x 1080 pixel CMOS

Field of View

Horizontal: 42°, Vertical: 36°

Minimum Element Resolution

1D: 2 mil, 2D: 4 mil

Print Contrast

As low as 15%

Drop Specification

Multiple 1.8 m drops to concrete

Tumble Specification

2,000 tumbles at 0.5 m

Environmental Sealing

IP52

Operating Temperature

0°C to 50°C

Storage Temperature

-40°C to 70°C

Humidity

0% to 95% RH (non-condensing)

User Feedback

Beeper, LEDs, vibration

Warranty

5-year



Features

Connectivity:
  • Wired
Ruggedness:
  • Non-rugged
Brand:
Honeywell
Form Factor:
  • Handheld
Scan Engine/Technology:
  • 2D
Interface:
  • USB
Scan Range:
  • Standard Range
Colour:
  • White
Rugged:
  • General purpose
Usage:
  • Entry Level
IP Rating:
  • IP52
Industry/Vertical:
  • Healthcare
Warranty:
  • 5 Years
Product Type/Condition:
  • New

Attachments

Brochure (4189-datasheet.pdf, 226 Kb) [Download]
