Description

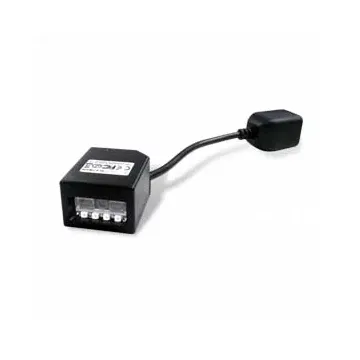

The Newland FM100 is a compact and durable 1D CCD fixed mounted barcode scanner designed for seamless OEM integration into kiosks, ticketing systems, reverse vending machines, and other automated solutions. With its IP54-rated housing and advanced Newland Auto-ID technology, this reader delivers reliable performance even in demanding environments. Featuring a fast 300 scans per second rate, multiple trigger modes, and support for all global 1D symbologies, the FM100 ensures smooth and accurate barcode capture for high-traffic applications. Its small form factor, combined with a direct 180 cm USB cable, makes installation simple and versatile.
Product Features
- OEM-Ready Integration – Compact design enables easy installation into kiosks, ticketing systems, and vending machines.
- High-Speed Performance – Delivers up to 300 scans per second for fast and accurate barcode capture.
- IP54-Rated Protection – Resistant to dust and water, ensuring reliability in tough environments.
- Advanced Newland Technology – Proprietary optical, CMOS, digitizer, and image processing system for consistent performance.
- Versatile Trigger Modes – Supports interval, sensor, continuous, delayed sensor, and command-triggered modes.
- Wide Compatibility – Reads all major 1D barcode symbologies, including Code 128, EAN-13, UPC-A, Code 39, Codabar, and GS1 DataBar.
- Durable Build – Constructed with strong ABS housing for long-lasting use.
- Flexible Connectivity – Equipped with a direct 180 cm USB cable; RS232 option available.
- Clear Feedback – Integrated LED indicators and audible beep notifications confirm successful scans.
- Low Power Consumption – Energy-efficient with only 163mA operating current at 5VDC.
Product Specifications
| Category | Details |
| Scan Engine | CCD 2500 |
| Light Source | Red LED (622–628 nm) |
| Scan Rate | 300 scans/sec |
| Print Contrast | ≥30% |
| Field of View | 40° Horizontal |
| Scan Angles | Roll: +30° / Pitch: +65° / Skew: +60° |
| Dimensions | 49.0 × 37.0 × 26.0 mm |
| Weight | 70g |
| Material | ABS |
| Interfaces | USB (standard), RS-232 (optional) |
| Indicators | Beep, LED |
| Power Input | 5VDC ± 5% |
| Operating Temp. | -5°C to 45°C |
| Storage Temp. | -40°C to 60°C |
| Humidity | 5%–95% RH (non-condensing) |
| Ambient Light | 0–100,000 LUX |
| IP Rating | IP54 (dust & water resistant) |
| Certifications | FCC Part15 Class B, CE EMC Class B, KC |
| Warranty | 2 Years |
Features
Connectivity:
- Wired
Ruggedness:
- Non-rugged
Brand:
Newland
Form Factor:
- Wall Mount
Scan Engine/Technology:
- 2D
Interface:
- USB
Scan Range:
- Standard Range
Colour:
- Black
Rugged:
- General purpose
Usage:
- Entry Level
IP Rating:
- IP54
Industry/Vertical:
- Logistics/Warehouse
Warranty:
- 2 Years
Product Type/Condition:
- New
