Description

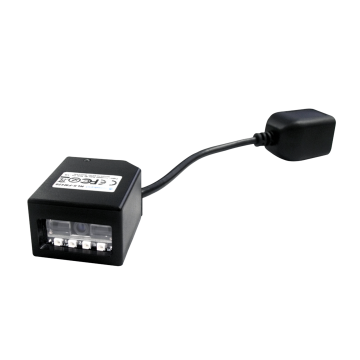

The Newland FM100 Series is a compact and powerful 1D fixed mount barcode scanner, designed for seamless integration into kiosks, ticketing machines, vending systems, and industrial solutions. Featuring dual interface connectivity (USB & RS232), CCD scanning technology, and an IP54-rated durable design, the FM100 is ideal for OEM applications requiring fast, reliable barcode scanning in high-demand environments
Product Features
- High-Performance 1D Scanning – Reads all global 1D barcode symbologies with precision.
- Fast Scanning Speed – 300 scans per second for high-efficiency workflows.
- Compact & Easy to Integrate – Small form factor for seamless integration into various systems.
- Advanced CCD Imaging Technology – Independently developed core technology ensures superior reading performance.
- Flexible Scan Modes – Supports Interval, Sensor, Continuous, Delayed Sensor, and Command Triggered Modes.
- Dual Connectivity (USB & RS232) – Offers versatile connection options for various systems.
- IP54-Rated Durability – Dust and water-resistant for reliable performance in demanding environments.
- Wide Operating Temperature – Functions between -5°C and 45°C, making it suitable for industrial and commercial use.
- Visual & Audio Feedback – LED indicators and a beep confirmation ensure efficient scanning operations.
- Energy Efficient – Low power consumption for cost-effective operation.
- Reliable and Long-Lasting – Backed by a 2-year warranty.
Product Specifications
Feature | Details |
Scanning Technology | 1D CCD Linear Imager |
Supported Barcodes | Code128, EAN-13, EAN-8, Code39, UPC-A,UPC-E, Codabar, Interleaved 2 of 5,ISBN/ISSN, Code 93, UCC/EAN-128, GS1Databar |
Image Sensor | 2500-pixel CCD |
Illumination | Red LED (622 nm - 628 nm) |
Scan Modes | Interval, Sensor, Continuous, Delayed Sensor, Command Triggered |
Scan Speed | 300 scans per second |
Field of View (Horizontal) | 40° |
Scan Angle (Roll / Pitch / Skew) | +30° / +65° / +60° |
Minimal Print Contrast | 30% |
Connectivity | USB, RS232 |
Material | ABS Plastic |
Power Supply Input/Output | DC 5V, 1.5A / AC 100-240V, 50-60Hz |
Power Consumption (Operating/Standby) | 163mA / 65mA @ 5VDC |
Dimensions | 49.0mm (W) x 37.0mm (D) x 26.0mm (H) |
Weight | 70g |
Operating Temperature | -5°C to 45°C |
Storage Temperature | -40°C to 60°C |
Humidity | 5% – 95% (non-condensing) |
Ambient Light Resistance | 0 ~ 100,000 LUX |
Drop Resistance | Durable for fixed-mount applications |
IP Rating | IP54 (Dust & Water Resistant) |
Certifications | FCC Part 15 Class B, CE EMC Class B, KC |
Warranty | 5 Years |
