Description

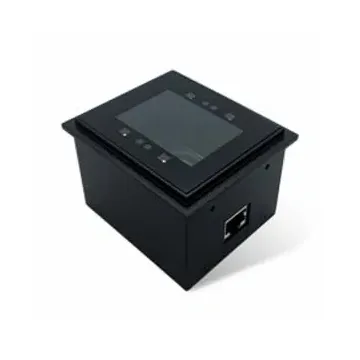

The Newland FM3056 Grouper II is a compact and powerful fixed-mount barcode scanner designed for seamless integration into kiosks, POS systems, and self-service solutions. With its flush glass front and minimal footprint, it provides a sleek and durable solution that blends effortlessly into modern retail and hospitality environments.
Equipped with advanced CMOS imaging technology, the FM3056 Grouper II delivers superior performance for reading both 1D and 2D barcodes from paper labels and mobile phone screens. Optimised for quick and effortless scanning, it ensures fast customer service and reduced waiting times in high-traffic applications such as ticket validation, self-checkout, and loyalty programme management.
The scanner is easy to install, offers plug-and-play simplicity, and can be further configured using Newland’s EasySet configuration tool. With a rugged build, multiple interface options, and the ability to perform even under challenging lighting conditions, the FM3056 Grouper II is the perfect choice for businesses seeking reliable and versatile scanning performance.
Product Features
- Superior Decoding Performance – Reads all major 1D and 2D barcodes at high speed.
- Mobile & Paper Barcode Reading – Optimised for scanning from smartphone screens and printed media.
- Compact Flush-Mount Design – Only 53mm high, ideal for kiosks and POS integration.
- Wide Field of View – Captures barcodes quickly, even at angles, for improved user experience.
- High-Speed Capture – 60 frames per second ensures fast transaction times.
- Easy Installation – Plug-and-play setup with simple barcode programming options.
- Durable Construction – PBT, ABS, and aluminium housing ensures long-lasting performance.
- Flexible Interfaces – Supports both RS232 and USB connectivity.
- Energy Efficient – Low operating power consumption for cost-effective operation.
- Versatile Applications – Ideal for retail, hospitality, transportation, ticketing, and self-service kiosks.
Product Specifications
| Category | Details |
| Model | Newland FM3056 Grouper II |
| Scanner Type | Fixed Mount 2D CMOS Barcode Scanner |
| Image Sensor | CMOS 752 × 480 |
| Processor | 0390 Chip + MCU |
| Illumination | White LED |
| Print Contrast | ≥ 25% |
| Field of View | Horizontal 75° / Vertical 50° |
| Scan Angle | Roll 360° / Pitch +40° / Skew +40° |
| Scan Rate | 60 fps |
| Scan Window | 31.5mm × 46.5mm |
| Interfaces | RS232, USB |
| Dimensions (mm) | 78.7 (W) × 67.7 (D) × 53 (H) mm |
| Weight | 173g |
| Material | PBT, ABS, Aluminium |
| Power Input | 5VDC ±5% |
| Power Consumption | 534mW (typical) |
| Operating Current | 108mA (typical), 114mA (max) |
| Operating Temp. | -20°C to 60°C |
| Storage Temp. | -40°C to 70°C |
| Humidity | 5% – 95% (non-condensing) |
| ESD Protection | ±8kV (air discharge), ±4kV (direct discharge) |
| Software | EasySet Configuration Tool |
| Warranty | 2 Years |
