Description

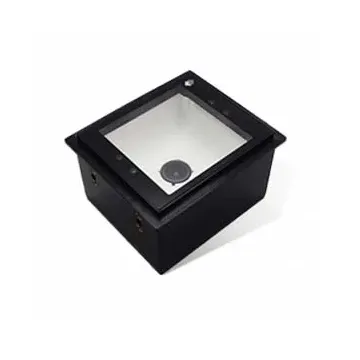

The Newland FM3080 Hind is a compact, high-performance fixed-mount 2D megapixel barcode scanner designed for seamless kiosk and POS integration. With its large scan window and optimised CMOS sensor, it delivers exceptional scanning performance on both printed barcodes and mobile phone screens, even those containing large amounts of data.
Built with sixth-generation UIMG® technology, the FM3080 Hind ensures fast and reliable decoding, making it the ideal choice for applications requiring quick, efficient, and accurate barcode capture. Its 3-colour LED indicator provides instant visual feedback, programmable for different scan results or to align with your company branding.
Designed with a small form factor (78.7 × 67.7 × 47.5 mm), this scanner is the most compact in the FM30 series, making it easy to integrate into tight kiosk or counter spaces. The IP65-rated housing offers excellent resistance to dust and water, while the anti-reflection coated glass improves readability from mobile devices, even in bright environments.
Whether used for ticketing, retail POS, transportation, or hospitality check-ins, the FM3080 Hind delivers robust performance, easy integration, and reliable operation.
Product Features
- High-Performance Decoding – Reads all major 1D and 2D symbologies, including QR, PDF417, and Data Matrix.
- Megapixel CMOS Sensor – Captures detailed and dense barcodes with high accuracy.
- On-Screen Barcode Scanning – Optimised for mobile phone display scanning, even with large data barcodes.
- 3-Colour LED Feedback – Customisable visual indicator for scan confirmation or branding.
- Compact & Space-Saving Design – Smallest model in the FM30 series, perfect for kiosks and POS counters.
- Dual Sensor Technology – Combines IR and light sensors for faster barcode detection and improved productivity.
- Anti-Reflection Glass Coating – Reduces glare for smoother barcode capture from screens.
- Durable IP65 Rating – Dust- and water-resistant for reliable operation in demanding environments.
- Flexible Interfaces – Supports both USB and RS232 connectivity.
- Easy Configuration – Works with Newland’s EasySet software tool for quick setup and programming.
Product Specifications
| Category | Details |
| Model | Newland FM3080 Hind |
| Scanner Type | Fixed Mount 2D CMOS Megapixel Scanner |
| Image Sensor | CMOS 800 × 800 |
| Illumination | White LED |
| Print Contrast | ≥ 25% |
| Field of View | Horizontal 74° / Vertical 74° |
| Scan Angle | Roll 360° / Pitch +40° / Skew +40° |
| Scan Modes | Sense Mode, Continuous Mode |
| Scan Window | 50 mm × 50 mm |
| Notifications | Beep, LED Indicator (up to 3 colours) |
| Dimensions (mm) | 78.7 (W) × 67.7 (D) × 47.5 (H) |
| Weight | 132 g |
| Power Input | 5 VDC ±5% |
| Operating Current | 250 mA (typical), 266 mA (max) |
| Power Consumption | 869 mW (typical) |
| Operating Temp. | -20°C to 60°C |
| Storage Temp. | -40°C to 70°C |
| Humidity | 5% – 95% (non-condensing) |
| ESD Protection | ±15 kV (air discharge), ±8 kV (direct discharge) |
| IP Rating | IP65 |
| Software | EasySet Configuration Tool |
| Warranty | 2 Years |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- Serial/RS232
- Standard Range
- Black
- General purpose
- Entry Level
- IP65
- Logistics/Warehouse
- 2 Years
- New
