Description

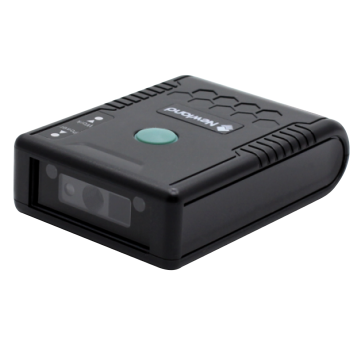

The Newland FM415 Bass is a high-performance stationary 2D scanner, designed for fast and efficient barcode scanning in a variety of industries. With its dual interface (USB & RS232), infrared sensor, and IP54-rated durable design, this scanner is perfect for hands-free scanning in retail, hospitality, events, and entertainment. Whether mounted for automated scanning or used manually, the FM415 Bass ensures seamless barcode reading, even in low-light conditions or on mobile screens
Product Features
- High-Speed Scanning – Quickly scans 1D & 2D barcodes, including damaged or poorly printed codes.
- Infrared Sensor & Light Sensor – Ensures fast scanning in low-light environments.
- Hands-Free or Manual Mode – Flexible operation with automatic scanning or a manual trigger.
- Dual Interface (USB & RS232) – Compatible with multiple devices and systems.
- Durable Build – IP54-rated protection against dust and moisture for reliable outdoor use.
- Adjustable Lighting – Optimizes brightness for better barcode visibility on screens.
- Compact & Lightweight – Sleek and space-saving design for easy installation.
Product Specifications
Feature | Details |
Scanning Technology | 2D CMOS Imager |
Supported Barcodes | 1D & 2D (EAN, UPC, Code 128, QR Code, DataMatrix, PDF417, Aztec, etc.) |
Image Sensor | 640x480 CMOS |
Aiming Technology | Red LED |
Illumination | White LED |
Depth of Field | 55mm – 250mm (EAN 13), 50mm – 120mm (QR Code) |
Scan Angle | Roll: 360° / Pitch: ±60° / Skew: ±60° |
Minimal Print Contrast | 25% |
Connectivity | USB, RS232 |
Operating Temperature | -20°C to 60°C |
Storage Temperature | -40°C to 70°C |
Humidity | 5% – 95% (non-condensing) |
Drop Resistance | 1.5m |
IP Rating | IP54 (Dust & Moisture Resistant) |
Dimensions | 49mm (W) x 69mm (D) x 20mm (H) |
Weight | 64.6g |
Power | 5V DC ±5% |
Certifications | CE, FCC Part 15 Class B |
Warranty | 5 Years |
Features
- USB
- Fixed Mount
- 2D
- USB
- Serial/RS232
- Standard Range
- Black
- Windows
- General purpose
- Entry Level
- IP54
- Hospitality
- Retail
- 5 Years
- New
