Description

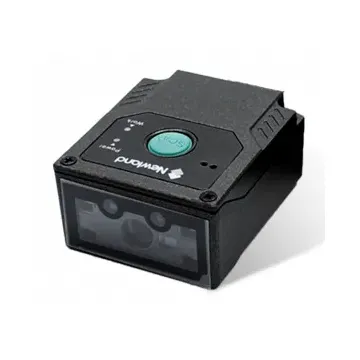

The Newland FM430 Barracuda is a high-performance fixed mount scanner designed for OEM integration into kiosks, ticketing machines, vending machines, and access control systems. Featuring a powerful megapixel camera, white LED illumination, and IR sensor technology, it delivers lightning-fast 1D and 2D barcode scanning, even on poorly printed or mobile screen barcodes. With hands-free or manual trigger options, robust IP54 protection, and a compact design, the FM430 Barracuda ensures reliable scanning in retail, transportation, postal, industrial, and self-service applications
Product Features
- Megapixel scanning power – captures 1D and 2D barcodes, including small and dense codes, with exceptional accuracy.
- Fast scanning speed – 60 frames per second for rapid, uninterrupted barcode reading.
- Works in all lighting conditions – IR and light sensors automatically adjust brightness, ensuring excellent performance even in low light.
- Mobile screen scanning – optimised for QR codes and barcodes displayed on smartphones and tablets.
- Hands-free or manual trigger – flexible scanning modes for automated or manual operations.
- Durable IP54-rated housing – resistant to dust and moisture, suitable for outdoor and industrial use.
- Compact, lightweight design – easy to integrate into kiosks, ticketing systems, and production lines.
- Optional laser aimer – bright red cross aimer for accurate, user-friendly targeting.
- Wide application range – supports self-service kiosks, e-commerce, gaming, access control, postal, and transport ticketing.
- 2-year warranty – reliable long-term investment backed by Newland support.
Product Specifications
| Category | Details |
| Image Sensor | CMOS 1280 × 800 megapixel |
| Processor | 1GHz X1500 |
| Illumination | White LED |
| Aiming Options | Laser diode or Green LED |
| Field of View | Horizontal: 51°, Vertical: 32° |
| Scan Angles | Roll: 360°, Pitch: ±55°, Skew: ±55° |
| Dimensions | 41.5 × 49.5 × 24.3 mm |
| Weight | 75g |
| Notifications | Beep, LED indicator |
| Input Voltage | 5VDC ±5% |
| Operating Current | 276.8mA (typical), 322.7mA (max) |
| Standby Current | 83.3mA |
| Operating Temp. | -20°C to 60°C |
| Storage Temp. | -40°C to 70°C |
| Humidity | 5%–95% (non-condensing) |
| Drop Resistance | 1.5m |
| Sealing | IP54 (dust & moisture resistant) |
| Warranty | 2 years |
Features
Connectivity:
- Wired
Ruggedness:
- Non-rugged
Brand:
Newland
Form Factor:
- Presentation
Scan Engine/Technology:
- 2D
Interface:
- Serial/RS232
Scan Range:
- Standard Range
Colour:
- Black
Rugged:
- General purpose
Usage:
- Entry Level
IP Rating:
- IP54
Industry/Vertical:
- Logistics/Warehouse
Warranty:
- 2 Years
Product Type/Condition:
- New
