Description

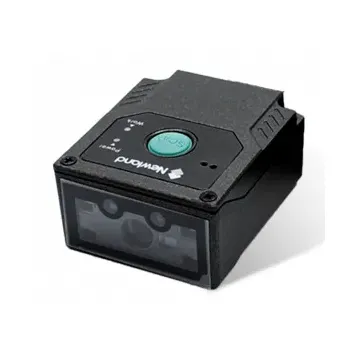

The Newland FM430 Barracuda is a high-performance fixed mount 2D megapixel barcode scanner designed for demanding retail, kiosk, and industrial applications. Equipped with an advanced CMOS sensor, powerful 1GHz processor, IR and white light illumination, and a bright laser aimer, it ensures rapid and accurate scanning of 1D and 2D barcodes, even in challenging conditions. With its IP54 rating, hands-free or manual operation, and compatibility with RS232 and USB, the FM430 Barracuda is a versatile scanning powerhouse. This package includes a 2-metre RS232 extension cable and a multi-plug adapter for flexible installation and reliable operation.
Product Features
- Megapixel CMOS Sensor – Delivers superior accuracy and speed when scanning all major 1D and 2D barcodes, including small, dense, and damaged codes.
- Advanced Illumination – White LED and IR sensors ensure reliable performance in low-light environments.
- Flexible Aiming Options – Available with either a green LED aimer or optional bright laser cross for quick targeting.
- Hands-Free or Manual Operation – Supports automated scanning for kiosks or manual trigger use depending on workflow.
- Smart Auto-Adjustment – Intelligent lighting adapts to ambient conditions for easy mobile screen barcode scanning.
- Durable & Reliable – IP54-rated enclosure protects against dust and moisture, ideal for outdoor or industrial use.
- Fast Performance – 60 frames per second scanning rate ensures seamless transactions and throughput.
- Extended Connectivity – Includes 2m RS232 extension cable and multi-plug adapter for versatile integration.
- Compact & Lightweight – Small footprint design (41.5 x 49.5 x 24.3 mm, 75g) for easy installation in tight spaces.
- 2-Year Warranty – Backed by Newland reliability and EasySet configuration software for quick setup.
Product Specifications
| Category | Details |
| Image Sensor | CMOS 1280 x 800 megapixel |
| Processor | 1GHz X1500 |
| Illumination | White LED + IR sensor |
| Aimer | Laser diode (red cross) or green LED |
| Scan Rate | 60 FPS |
| Scan Modes | Sense, Continuous, Level, Pulse |
| Field of View | Horizontal: 51°, Vertical: 32° |
| Notifications | Beeper, LED indicator |
| Dimensions | 41.5 (W) x 49.5 (D) x 24.3 (H) mm |
| Weight | 75 g |
| Material | PC.ABS |
| Input Voltage | 5 VDC ± 5% |
| Operating Current | 276.8 mA (typical), 322.7 mA (max) |
| Standby Current | 83.3 mA |
| Power Supply | DC 5V 1.5A / AC 100~240V, 50–60Hz |
| Humidity | 5%–95% (non-condensing) |
| Drop Resistance | 1.5 m |
| IP Rating | IP54 |
| Certifications | FCC, CE EMC, RoHS, IEC60825, IEC62471, KC |
| Warranty | 2 years |
Features
Connectivity:
- Wired
Ruggedness:
- Non-rugged
Brand:
Newland
Form Factor:
- Presentation
Scan Engine/Technology:
- 2D
Interface:
- Serial/RS232
Scan Range:
- Standard Range
Colour:
- Black
Rugged:
- General purpose
Usage:
- Entry Level
IP Rating:
- IP54
Industry/Vertical:
- Logistics/Warehouse
Warranty:
- 2 Years
Product Type/Condition:
- New
