Description

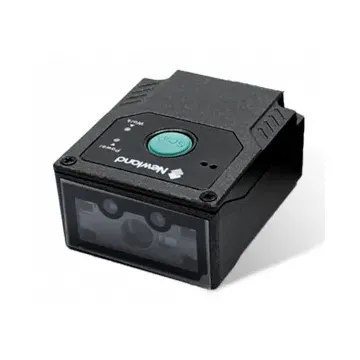

The Newland FM430 Barracuda is one of the most advanced fixed mount scanners in its class, designed for high-speed, high-accuracy barcode capture across diverse industries. Equipped with a megapixel CMOS sensor, IR and light sensors, and powerful white LED illumination, it delivers lightning-fast scanning of virtually all 1D and 2D barcodes, including those displayed on mobile devices or poorly printed labels.
Compact yet powerful, the FM430 offers handsfree and manual trigger options, making it suitable for kiosks, ticketing, vending, postal services, gaming, access control, and self-service terminals. With its IP54-rated housing, 1.5m drop resistance, and USB interface, this scanner ensures long-term reliability in retail, industrial, and transportation environments.
Product Features
- High-resolution megapixel imager for accurate 1D and 2D barcode scanning.
- Rapid scanning performance with 60 frames per second.
- Reliable in low-light conditions thanks to IR and light sensors with adaptive brightness.
- Mobile screen ready – ideal for QR codes and digital tickets.
- Handsfree or manual operation – flexible scanning modes.
- Durable IP54 housing for dust and moisture resistance.
- Compact and lightweight design for easy OEM integration into kiosks, ticketing, and vending machines.
- Optional laser aimer for intuitive targeting.
- Excellent depth of field supporting close and long-range scanning.
- 2-year warranty
Product Specifications
| Category | Details |
| Image Sensor | CMOS 1280 × 800 megapixel |
| Processor | 1GHz X1500 |
| Illumination | White LED |
| Field of View | Horizontal: 51°; Vertical: 32° |
| Scan Angles | Roll: 360°; Pitch: ±55°; Skew: ±55° |
| Scan Modes | Sense, Continuous, Level, Pulse |
| Scan Rate | 60 frames per second |
| Dimensions | 41.5 × 49.5 × 24.3 mm |
| Weight | 75g |
| Material | PC + ABS |
| Notifications | Beeper, LED indicator |
| Input Voltage | 5VDC ±5% |
| Operating Current | 276.8mA (typical), 322.7mA (max) |
| Standby Current | 83.3mA |
| Operating Temp. | -20°C to 60°C |
| Storage Temp. | -40°C to 70°C |
| Humidity | 5%–95% (non-condensing) |
| Drop Resistance | 1.5m |
| Sealing | IP54 |
| Software | EasySet Configuration Tool |
| Warranty | 2 years |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- USB
- Standard Range
- Black
- General purpose
- Entry Level
- IP54
- Logistics/Warehouse
- 2 Years
- New
