Description

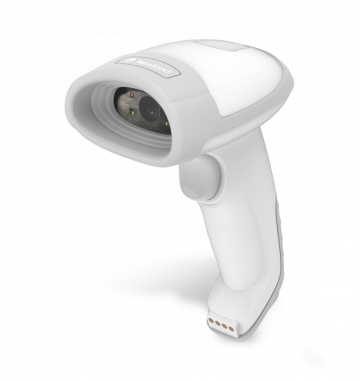

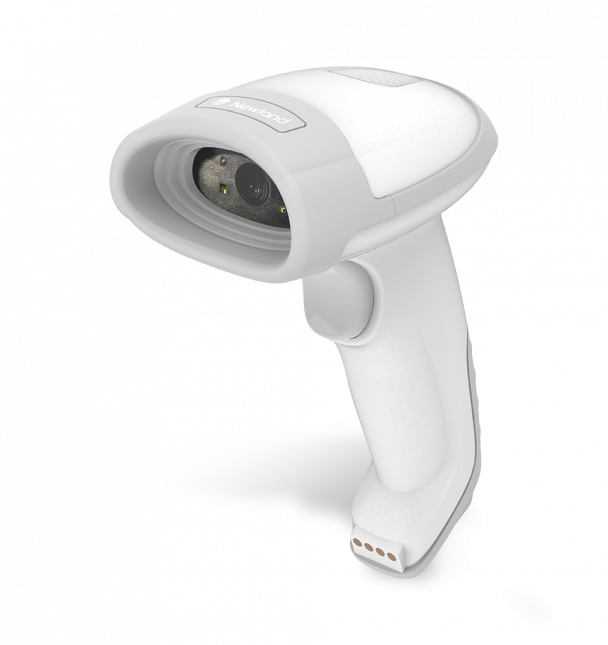

The Newland HR32 Marlin II Healthcare Handheld Reader is a high-performance megapixel 2D barcode scanner designed specifically for healthcare environments. Featuring an antimicrobial white housing, the HR32 Marlin II helps reduce the spread of harmful bacteria, making it safe for hospitals, pharmacies, and laboratories.
Equipped with a megapixel CMOS image sensor, the HR32 Marlin II scans all 1D and 2D barcodes, including high-density, small, or poorly printed codes with unmatched accuracy. Its autosense capability allows effortless hands-free operation when used with a smart stand (compatible, optional).
Built for demanding workflows, the HR32 Marlin II combines IP42-rated protection, 1.5m drop resistance, and EasySet configuration software for easy deployment and management. Supplied as a complete kit with a 2m straight USB cable, it offers reliable plug-and-play performance. Backed by a 5-year warranty, this healthcare-grade scanner ensures durability.
Product Features
- Megapixel CMOS image sensor for superior 1D & 2D barcode scanning, including tiny high-resolution codes
- Antimicrobial white housing, ideal for healthcare, hospitals, and clinical environments
- Captures damaged, distorted, or poorly printed barcodes with precision
- Hands-free autosense scanning when used with a smart stand (compatible, optional)
- Rugged & reliable: IP42 sealing and 1.5m drop resistance
- Ergonomic lightweight design for all-day scanning comfort
- EasySet software support for fast configuration, cloning, and firmware updates
- Multi-interface support including USB, RS232, HID-POS, USB-CDC
- Plug-and-play kit with 2m straight USB cable included
- Backed by a 5-year manufacturer’s warranty
Product Specifications
| Category | Details |
| Scanner Type | 2D CMOS Megapixel Handheld Scanner |
| Image Sensor | Megapixel CMOS |
| Resolution | ≥3 mil |
| Illumination | White LED |
| Aiming | Red LED |
| Notifications | Beep, LED, Vibration |
| Dimensions | Approx. 95 × 68 × 161 mm |
| Weight | ~137 g |
| Input Voltage | 5V DC ± 5% |
| Operating Current | ~190mA typical (200mA max) |
| Standby Current | ~35mA |
| Humidity | 5%–95% non-condensing |
| IP Rating | IP42 |
| Certifications | CE, FCC, RoHS 2.0, IEC62471 |
| Colour | White (Healthcare Antimicrobial Housing) |
| Warranty | 5 Years |
Features
- Wired
- Non-rugged
- Handheld
- 2D
- USB
- Standard Range
- White
- General purpose
- Entry Level
- IP42
- Logistics/Warehouse
- 5 Years
- New
