Description

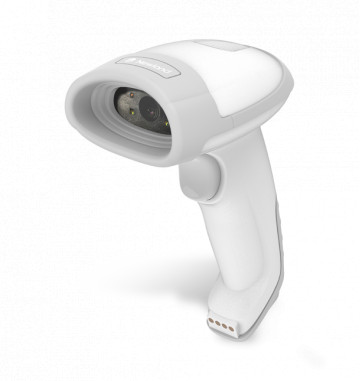

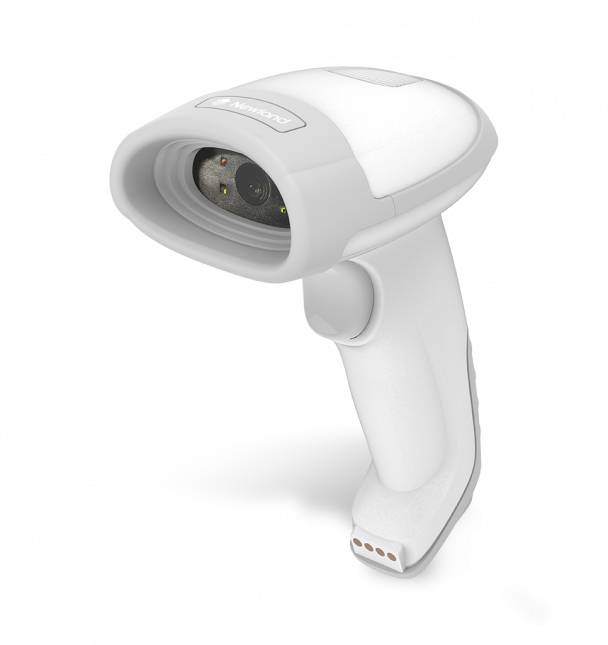

The Newland HR32 Marlin II Healthcare Handheld Reader Kit is a premium megapixel 2D barcode scanner designed for healthcare environments, supplied complete with a foldable smart stand and 2m USB cable.
Built with an antimicrobial white housing, the HR32 Marlin II helps reduce the spread of bacteria in hospitals, laboratories, and pharmacies. The 1280x800 CMOS megapixel sensor ensures accurate and ultra-fast reading of all 1D and 2D barcodes, even small, high-density, or damaged labels.
Engineered for durability, the HR32 Marlin II offers IP42 sealing, 1.5m drop resistance, and protection against electrostatic discharge (±15kV air, ±8kV contact). Its ergonomic design makes it comfortable for all-day scanning, while the included foldable smart stand with autosense enables seamless hands-free scanning.
With multi-interface connectivity, EasySet software for quick deployment, and a 5-year warranty, the HR32 Marlin II delivers unmatched performance and reliability for healthcare and other scan-intensive industries.
Product Features
- Megapixel 1280x800 CMOS sensor for precision 1D & 2D scanning
- Antimicrobial housing (white) – healthcare-safe design
- Scans even small, dense, or poor-quality barcodes with ease
- Foldable smart stand with autosense included for hands-free operation
- Dual interface (USB & RS232) for flexible connectivity
- Ergonomic, lightweight design for comfort during long shifts
- Rugged build: IP42 dust/water resistance & 1.5m drop tested
- High-speed scanning at 60 fps with trigger, autosense, or continuous modes
- EasySet configuration software for quick setup, cloning & firmware updates
- 5-year manufacturer’s warranty
Product Specifications
| Category | Details |
| Scanner Type | 2D CMOS Megapixel Handheld Scanner |
| Image Sensor | 1280 × 800 CMOS Megapixel |
| Processor | 1GHz X1500 |
| Illumination | White LED |
| Aiming | Red LED (625 ±10 nm), Green LED indicator |
| Resolution | ≥3 mil |
| Frame Rate | 60 fps |
| Notifications | Beep, LED, Green Indicator |
| Dimensions | 113.5 × 73.3 × 159 mm |
| Weight | 162 g |
| Material | PC + ABS |
| Input Voltage | 5V DC ±5% |
| Operating Current | 238mA typical (260mA max) |
| Standby Current | 71mA |
| Power Supply | DC5V 1.5A, AC 100–240V, 50/60Hz |
| Humidity | 5%–95% non-condensing |
| IP Rating | IP42 |
| Colour | White (Healthcare Antimicrobial Housing) |
| Warranty | 5 Years |
Features
- Wired
- Non-rugged
- Handheld
- 2D
- USB
- Standard Range
- White
- General purpose
- Entry Level
- IP42
- Logistics/Warehouse
- 5 Years
- New
