Description

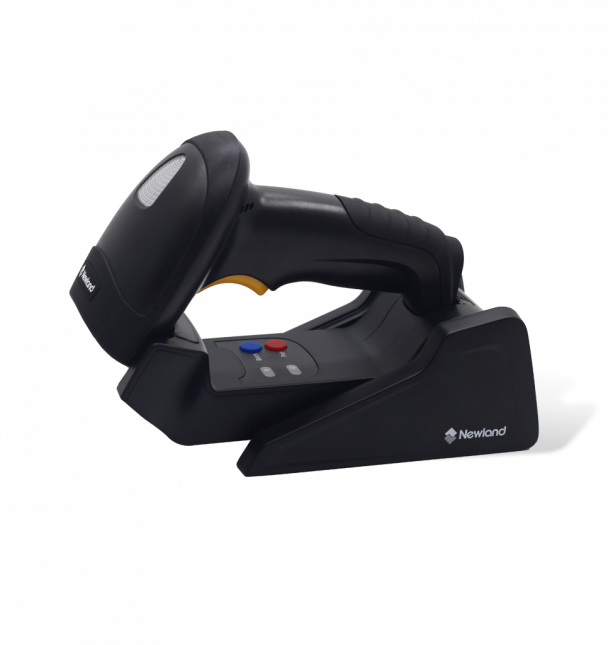

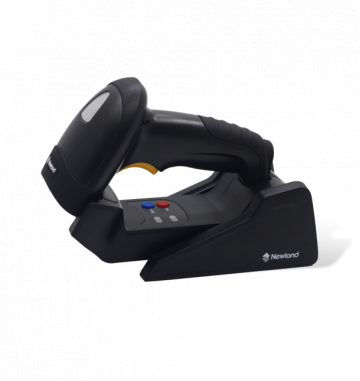

The Newland HR32 Marlin II is a next-generation 2D CMOS wireless Bluetooth handheld barcode scanner designed for precision, speed, and versatility. Featuring advanced megapixel scanning technology, it effortlessly reads virtually all 1D and 2D barcodes, including high-density, long, and truncated codes.
With Bluetooth 5.0 connectivity, the Marlin II provides a stable, anti-interference wireless connection, supporting communication distances of up to 50 metres. Its smart data capture system allows both real-time and batch mode scanning, with the ability to store up to 15,000 barcodes when out of range.
The HR32 Marlin II comes complete with a docking station, USB cable, and multi-plug adapter, making it ideal for retail, logistics, healthcare, and warehouse environments. Backed by Newland’s EasySet software, it offers powerful data editing, configurable illumination, and seamless integration with multiple host devices.
Product Features
- Advanced megapixel CMOS scan engine for superior 1D & 2D barcode reading.
- Reads long, truncated, stacked, and high-density barcodes with ease.
- Bluetooth 5.0 wireless technology ensures strong, interference-free connections.
- Supports up to 7 scanners connected to one base station.
- Flexible operation with real-time transmission and batch storage (15,000 codes).
- Dual red and white configurable illumination for enhanced accuracy.
- EasySet software compatibility for powerful data formatting and customisation.
- 2200mAh lithium-ion battery providing up to 12 hours of continuous use.
- Durable design with 1.5m drop resistance and IP42-rated protection.
- Backed by a 3-year manufacturer’s warranty
Product Specifications
| Category | Details |
| Image Sensor | CMOS 1280 × 800 megapixel |
| Illumination | Red & White LED (configurable) |
| Aiming | Green LED |
| Field of View | 39° (Horizontal), 24° (Vertical) |
| Scan Angles | Roll 360°, Pitch +55°, Skew +55° |
| Memory Capacity | Up to 15,000 barcodes |
| Interfaces | USB, RS-232 |
| Battery | 2200mAh lithium-ion (≥12 hours use) |
| Charge Time | ≤4 hours |
| Wireless Technology | Bluetooth 5.0 |
| Wireless Range | Up to 50m (open space) |
| Drop Resistance | 1.5m (scanner), 1m (cradle) |
| IP Rating | IP42 |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Weight | 217g |
| Dimensions | 113.5(W) × 73.3(D) × 159(H) mm |
| Warranty | 3 Years |
Features
- Wireless
- Rugged
- Handheld
- 2D
- Bluetooth
- WiFi
- Standard Range
- Black
- Rugged/Heavy Duty
- Industrial
- IP42
- Logistics/Warehouse
- 1 Year
- New
