Description

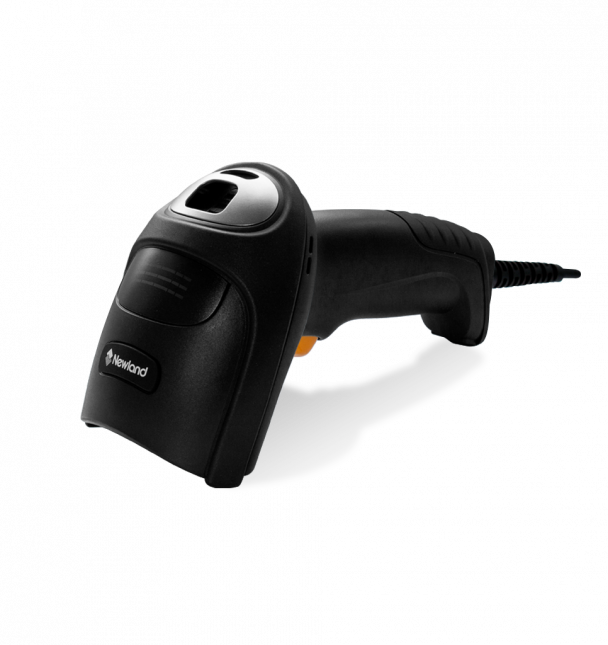

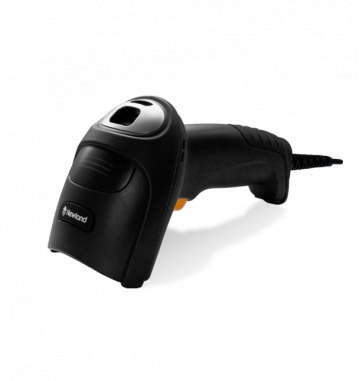

The Newland HR52 Bonito Duo is a next-generation 2D megapixel handheld scanner that combines near and far scanning into a single device. Featuring Newland’s dual CMOS imager technology, it bridges the gap between retail POS scanning and long-range warehouse/logistics applications.
With a 1280 × 800 CMOS megapixel sensor, white LED illumination, and a 650nm laser aimer, the HR52 Bonito Duo captures barcodes quickly and accurately at both close range and distances up to 9.8m (for large 100mil barcodes).
Its rugged IP54 housing and 1.8m drop resistance ensure reliable operation in demanding environments, while the laser aimer guarantees precise targeting, even in outdoor conditions. With powerful onboard data editing, configurable via EasySet software, the HR52 Bonito Duo easily adapts to your workflow.
Backed by a 5-year warranty, this scanner is ideal for retail, logistics, warehousing, healthcare, and manufacturing.
Product Features
- Duo Near & Far scanning – optimized for both POS and long-range applications
- High-performance 1280 × 800 CMOS megapixel sensor
- Laser aimer – clear and visible indoors or outdoors
- Reads all 1D & 2D barcodes including PDF417, QR, Data Matrix, Aztec, and MaxiCode
- Wide depth of field: from 20cm up to 9.8m (for large codes)
- Durable housing: IP54 sealed, withstands 1.8m drops
- Trigger lifespan of 10 million actuations for long-term reliability
- Multi-interface support: USB & RS232
- Flexible notifications: beep, LED, vibration
- EasySet software for advanced configuration and data editing
- 2m straight dual-port USB cable included
- 5-year warranty
Product Specifications
| Category | Details |
| Image Sensor | 1280 × 800 CMOS |
| Illumination | White LED |
| Aiming | 650nm laser diode |
| Notifications | Beep, LED, Vibration |
| Input Voltage | 5V DC ±5% @1A |
| Standby Current | 71mA |
| Dimensions | 172.5 × 77.5 × 95.5 mm |
| Weight | 271 g |
| Operating Temp. | -20°C to 50°C |
| Storage Temp. | -30°C to 70°C |
| Humidity | 5% – 95% (non-condensing) |
| Drop Resistance | 1.8m to concrete |
| IP Rating | IP54 |
| ESD Protection | ±8kV air discharge, ±12kV direct discharge |
| Trigger Lifespan | 10 million actuations |
| Software | EasySet configuration tool |
| Included Accessories | 2m Straight Dual-Port USB Cable |
| Warranty | 5 Years |
Features
- Wired
- Non-rugged
- Handheld
- 2D
- USB
- Standard Range
- Black
- General purpose
- Entry Level
- IP54
- Logistics/Warehouse
- 5 Years
- New
