Description

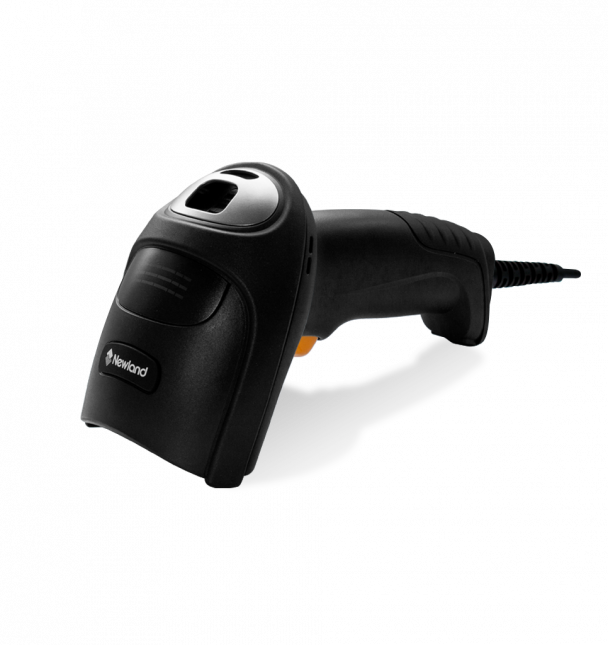

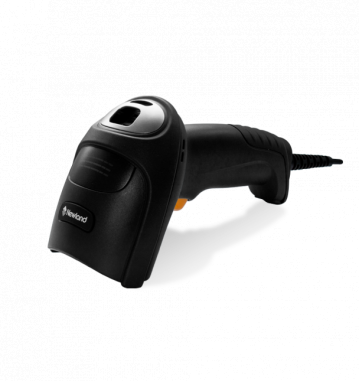

The Newland HR52 Bonito Duo is a versatile 2D handheld barcode scanner equipped with dual near & far CMOS megapixel imaging technology. Designed to excel in both point-of-sale (POS) and long-range industrial applications, it delivers exceptional scanning performance on 1D and 2D barcodes, even from distances of up to 9.8m.
Featuring a 1280 × 800 CMOS sensor, white LED illumination, and a 650nm laser aimer, the HR52 Bonito Duo ensures fast, precise barcode capture in any environment. Its IP54 sealing and 1.8m drop resistance guarantee reliability in demanding retail, logistics, and healthcare operations.
This package includes an RS232 interface cable with a multiplug adapter, making it suitable for businesses requiring serial connectivity for POS systems, industrial automation, and legacy equipment.
With EasySet configuration software and a 5-year warranty, the HR52 Bonito Duo is built for flexibility, durability, and long-term value.
Product Features
- Duo Near & Far scanning – optimized for close POS use and long-range scanning
- 1280 × 800 CMOS megapixel imager with laser aimer
- Reads all 1D & 2D barcodes including PDF417, QR, Data Matrix, Aztec, MaxiCode
- Wide depth of field: from 20cm to 9.8m (depending on barcode type)
- Durable housing: IP54 rated and 1.8m drop resistant
- Trigger durability: 10 million actuations
- RS232 cable + multiplug adapter included
- Flexible notifications: Beep, LED indicator, vibration feedback
- Powerful data editing with EasySet software
- 5-year manufacturer’s warranty
Product Specifications
| Category | Details |
| Image Sensor | 1280 × 800 CMOS |
| Illumination | White LED |
| Aiming | 650nm laser diode |
| Notifications | Beep, LED, Vibration |
| Input Voltage | 5V DC ±5% @1A |
| Standby Current | 71mA |
| Power Consumption | Near: 2071mW / Far: 3642mW |
| Dimensions | 172.5 × 77.5 × 95.5 mm |
| Weight | 271 g |
| Operating Temp. | -20°C to 50°C |
| Storage Temp. | -30°C to 70°C |
| Humidity | 5% – 95% (non-condensing) |
| Drop Resistance | 1.8m to concrete |
| IP Rating | IP54 |
| ESD Protection | ±8kV air discharge, ±12kV direct discharge |
| Trigger Lifespan | 10 million actuations |
| Software | EasySet configuration tool |
| Included Accessories | RS232 Cable, Multiplug Adapter |
| Warranty | 5 Years |
Features
- Wired
- Non-rugged
- Handheld
- 2D
- Serial/RS232
- Standard Range
- Black
- General purpose
- Entry Level
- IP54
- Logistics/Warehouse
- 5 Years
- New
