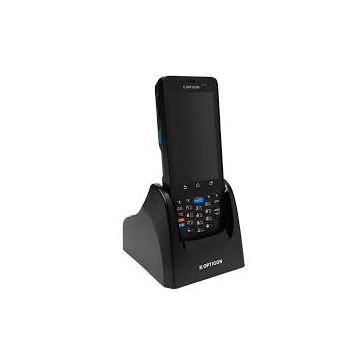

Opticon H-29 Android Mobile Computer – 2D Imager - Wi-Fi - Bluetooth - NFC - USB - 2/16GB

NFC, Wifi, Bluetooth, 2GB, 16GB, Opticon, 2D Area Imager, Android
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +441749608334
14208-PROMO

Need Help

Choosing a Product
+441749608334 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Opticon H-29 combines sleek design with rugged durability and high-performance components, making it the ideal solution for professionals in logistics, retail, utilities, and field service. Powered by Android 6.0.1 and driven by a Qualcomm Snapdragon Octa-Core processor, the H-29 delivers smooth multitasking and real-time data capture.

Equipped with a 2D CMOS imager, 802.11a/b/g/n/ac/r Wi-Fi, Bluetooth 4.1 LE, NFC, and GPS/GLONASS, it ensures fast scanning and uninterrupted connectivity indoors and in the field. The device includes an 8MP rear camera with LED flash, alphanumeric keypad, and rugged Gorilla Glass 4.3” touch display—balancing touchscreen efficiency with tactile control.

The H-29 is drop tested to 1.5m, IP65 sealed, and supports Qualcomm QuickCharge 2.0 via USB. This kit includes essential accessories: battery, cradle with UK power supply, USB cable, stylus, and SDK—ready to deploy out of the box.

Product Features

  • OS: Android 6.0.1

  • Connectivity: Wi-Fi 802.11 a/b/g/n/ac/r | Bluetooth 4.1 LE | NFC | GPS/GLONASS

  • Camera: 8MP Rear (AF, LED flash) | Low light mode

  • Scanner: Integrated 2D CMOS Imager (1D & 2D symbologies)

  • Input: Alphanumeric Keypad + 4.3” Gorilla Glass Touchscreen

  • Battery: 2300mAh Li-Ion (standard) – Optional 3450mAh available

  • Durability: IP65 rated | Drop tested to 1.5m (MIL-STD-810G)

  • Kit Includes: Device, cradle (with UK PSU), battery, stylus, USB cable, SDK

Product Specifications

ProcessorQualcomm Snapdragon 617 A53 Octa-core
OSAndroid 6.0.1
RAM / Storage2GB LPDDR3 / 16GB eMMC
Display4.3" TFT LCD WVGA (capacitive), Gorilla Glass
Touch InputStylus, finger (capacitive), numeric keys
Camera8MP AF with LED flash (rear only)
WirelessWi-Fi 802.11a/b/g/n/ac/r
Scanner2D CMOS Imager (640x480, 100fps, green LED aimer, warm white illumination)
Supported Codes1D, 2D (QR, DataMatrix, PDF417, Aztec, Postal, OCR, etc.)
Battery2300mAh Li-Ion (standard)
ChargingQualcomm QuickCharge 2.0 via USB
PortsMicroUSB, microSD (user accessible), SIM card
IP RatingIP65 (dust & water-resistant)
Drop Resistance1.5m to concrete (MIL-STD 810G)
SensorsAccelerometer, Gyroscope, Proximity, Light sensor, E-compass
Dimensions175 x 71.8 x 19.5 mm (6.89 x 2.83 x 0.77 in)

Features

Connectivity:
  • NFC
  • Wifi
  • Bluetooth
RAM:
  • 2GB
Storage Capacity:
  • 16GB
Brand:
Opticon
Scan Engine/Technology:
  • 2D Area Imager
OS Compatibility:
  • Android

Attachments

Brochure (H-29_datasheet.pdf, 497 Kb) [Download]
