Description

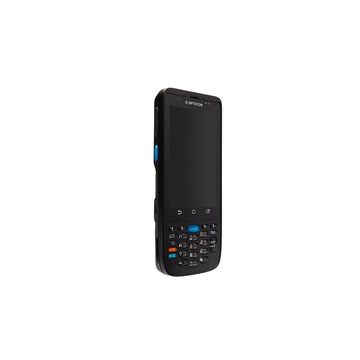

The Opticon H-29 is a rugged, high-performance Android mobile computer engineered for data-intensive applications in warehousing, logistics, field service, and retail. Equipped with a physical alphanumeric keypad and a responsive 4.3” touchscreen, it delivers the ideal combination of tactile input and visual interface.

Its powerful Qualcomm Snapdragon Octa-Core processor, 2GB RAM, and 16GB ROM ensure fast and seamless performance, even with demanding applications. The built-in 2D CMOS Imager provides rapid barcode scanning of all standard 1D and 2D codes, while WiFi (802.11 a/b/g/n/ac/r), Bluetooth 4.1 LE, NFC, and GPS/GLONASS guarantee constant connectivity.

The H-29’s IP65-certified rugged design, long battery life, and advanced scanning engine make it the ultimate tool for professional-grade mobile computing—whether on the shop floor or out in the field.

Product Features

  • Android 6.0.1 operating system for wide enterprise app support

  • Qualcomm Snapdragon Octa-Core processor for fast, responsive performance

  • High-performance 2D CMOS Imager for accurate barcode scanning

  • Rugged IP65-rated housing with 1.5m drop resistance (MIL-STD-810G)

  • 4.3" capacitive touchscreen with Gorilla Glass for durability

  • Alphanumeric physical keypad for efficient data entry

  • 2GB RAM / 16GB ROM with microSD expansion

  • Multiple wireless options: WiFi (802.11 a/b/g/n/ac/r), Bluetooth 4.1 LE, NFC, GPS

  • 8MP rear camera with autofocus and LED flash for documentation

  • Long-life 2300mAh standard battery with optional 3450mAh extended battery

Product Specifications

Operating SystemAndroid 6.0.1
ProcessorQualcomm Snapdragon 617, Octa-core A53
RAM / ROM2GB LPDDR3 RAM / 16GB eMMC
ExpansionMicroSD card slot, SIM card slot
Display4.3” TFT LCD (WVGA), capacitive touch, Gorilla Glass
Input InterfaceAlphanumeric keypad + touchscreen
Scanning Engine2D CMOS Imager, 640x480 pixels, green LED aiming
Camera8MP rear camera, autofocus, LED flash
Wireless ConnectivityWiFi (802.11 a/b/g/n/ac/r), Bluetooth 4.1 LE, NFC, GPS
NFC StandardsISO14443 A/B, ISO15693, Felica, Mifare
Durability RatingIP65, 1.5m drop (MIL-STD-810G)
Battery2300mAh Li-ion (standard), optional 3450mAh extended
Dimensions (W x H x D)71.8 x 175 x 19.5 mm
WeightApprox. 297 g
Supported BarcodesAll major 1D, Postal, and 2D symbologies incl. QR, PDF417
ChargingQualcomm Quick Charge 2.0 via USB

Features

Connectivity:
  • NFC
  • Wifi
  • Bluetooth
Processor:
  • Qualcomm Octa Core
RAM:
  • 2GB
Storage Capacity:
  • 16GB
Brand:
Opticon
IP Rating:
  • IP65

Attachments

Brochure (H-29_datasheet.pdf, 497 Kb) [Download]
