Description

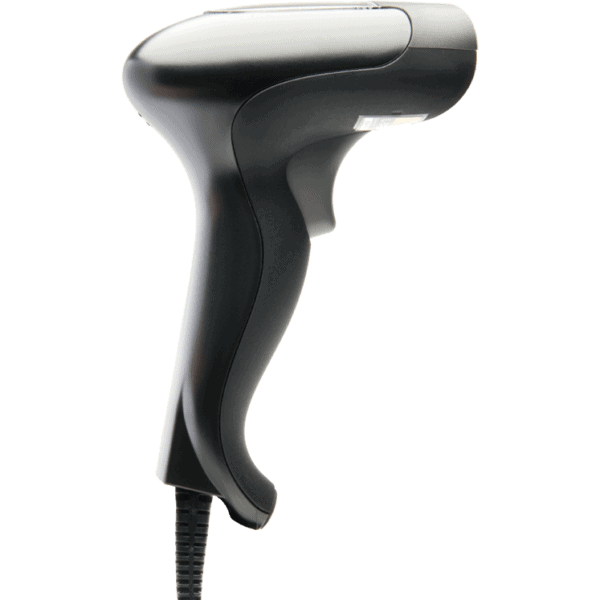

The Opticon L-50R USB Barcode Scanner is a stylish, ergonomic, and highly reliable 1D laser scanner designed for superior performance in retail, logistics, healthcare, warehousing, and distribution environments. Featuring a scan speed of up to 300 scans per second, the L-50R delivers fast, accurate barcode capture—even for damaged or difficult-to-read barcodes.
Its ergonomic pistol grip design, combined with robust durability (IP42-rated, 1.5m drop resistance), ensures comfortable and dependable daily use. The scanner comes with a stand for hands-free operation, interchangeable cables for USB/RS232 connectivity, and a 2-year warranty, making it a cost-effective, long-term investment for businesses.
Product Features
- High-performance 1D laser scanning at 300 scans per second.
- Sophisticated ergonomic design for maximum comfort and usability.
- Reads a wide range of 1D symbologies including GS1 DataBar, UPC/EAN, Code 128, and more.
- Durable build – withstands 1.5m drops to concrete.
- IP42 rating for protection against dust and moisture.
- Trigger modes: manual, auto-trigger, stand detection.
- Interchangeable cables – supports both USB (HID/VCP) and RS232 interfaces.
- Ambient light immunity up to 80,000 lx, ensuring reliable performance outdoors.
- Includes a stand for hands-free scanning.
Product Specifications
| Specification | Details |
| Scanner Type | 1D Laser (650 nm red diode) |
| Scan Speed | Up to 300 scans per second |
| Resolution | 0.076 mm (3 mil) |
| Trigger Modes | Manual, Auto-trigger, Stand Detection |
| Interfaces | USB 2.0 (HID/VCP), RS232 (DB9) |
| Drop Resistance | 1.5m (5 ft) onto concrete |
| Sealing (IP Rating) | IP42 (dust and moisture protection) |
| Operating Temp. | -20°C to 50°C |
| Storage Temp. | -30°C to 60°C |
| Humidity (Operating) | 5% to 95% RH (non-condensing) |
| Ambient Light Immunity | Up to 80,000 lx (direct sunlight) |
| Dimensions (Scanner) | 75.4 × 169.5 × 121.2 mm |
| Weight (Scanner) | 145 g (without cable) |
| Cable Length | 2.0 m |
| Dimensions (Stand) | 106 × 323 × 146 mm |
| Weight (Stand) | 335 g |
Features
Connectivity:
- Wired
Ruggedness:
- Non-rugged
Brand:
Opticon
Form Factor:
- Handheld
Scan Engine/Technology:
- 1D
Interface:
- USB
Scan Range:
- Standard Range
Colour:
- White
Rugged:
- General purpose
Usage:
- Entry Level
IP Rating:
- IP42
Industry/Vertical:
- Logistics/Warehouse
Warranty:
- 2 Years
Product Type/Condition:
- New
