Description

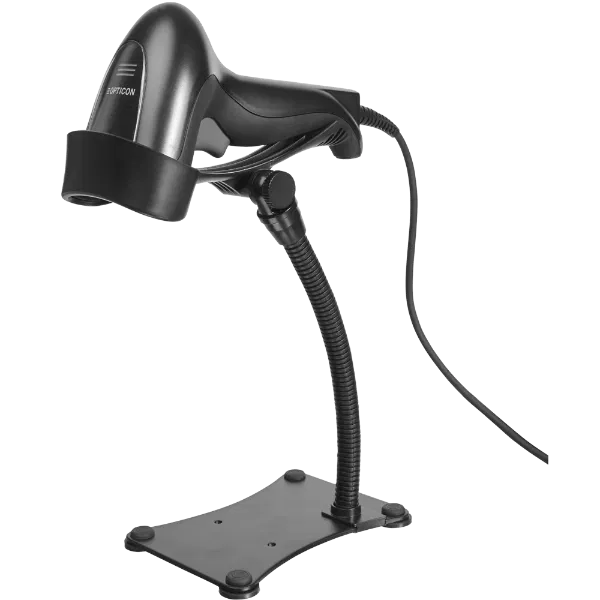

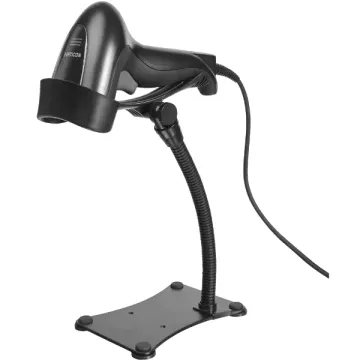

The Opticon L-51X USB Kit is a high-performance 2D imager scanner designed with a rugged pistol grip for comfortable all-day use. Featuring a sophisticated ergonomic design and excellent price-to-performance ratio, it is the ideal scanning solution for retail, warehousing, logistics, healthcare, and transportation.
With its high-speed CMOS area sensor, the L-51X effortlessly scans and decodes a wide variety of 1D and 2D barcodes, including those on mobile phone screens. The included stand allows for convenient hands-free operation, while the replaceable USB cable ensures easy connectivity and long-term flexibility. Built tough with IP42-rated protection and a 1.5m drop resistance, this scanner delivers reliability in demanding environments. Backed by a 5-year warranty, the L-51X provides long-term value and durability.
Product Features
- Ergonomic pistol grip design for comfortable use
- Rapid scanning of 1D & 2D barcodes (printed and on screens)
- USB HID interface with 2m straight cable included
- Supplied with stand for hands-free scanning
- Replaceable interface cable for future flexibility
- Durable: withstands 1.5m drops, IP42 rating
- Top panel allows for custom logo branding
- Available in Black
- Backed by a 5-year warranty
Product Specifications
| Specification | Details |
| Model | Opticon L-51X |
| Kit Version | USB Kit with Stand |
| Scanner Type | 2D CMOS Imager |
| Colour | Black |
| Grip Style | Pistol Grip |
| Stand | Included |
| Drop Resistance | 1.5m to concrete |
| Protection Rating | IP42 |
| Dimensions (W x H x D) | 75.4 × 169.5 × 121.2 mm |
| Weight (body) | 145g (excl. cable) |
| Weight (stand) | 373g |
| Indicators | White LED, buzzer |
| Light Source | Green LED aimer + warm white LED |
| Scan Method | CMOS area sensor, 640 × 480 pixels |
| Scan Rate | Up to 100 fps |
| Power | 5V ± 10% (USB), 400 mA typical |
| Humidity | 5% – 90% (non-condensing) |
| Ambient Light Immunity | Up to 100,000 lux (direct sunlight) |
| Warranty | 5 Years |
Features
- Wired
- Non-rugged
- Handheld
- 2D
- USB
- Standard Range
- Black
- General purpose
- Entry Level
- IP42
- Logistics/Warehouse
- 5 Years
- New
