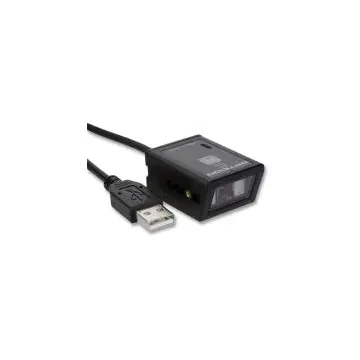

Opticon NLV-1001-USBHID Fixed Position Laser Scanner with USB interface

The Opticon NLV-1001-USBHID Fixed Position Laser Scanner is a compact, rugged, and cost-effective fixed mount barcode scanner designed for reliable 1D scanning in retail, light industrial, and embedded applications. With its bi-directional scanning at 100 scans per second, the NLV-1001 ensures fast and accurate barcode capture, even in demanding environments. Its small form factor and integrated decoder make it easy to integrate into kiosks, POS systems, production lines, and access control solutions. Durable enough to withstand drops and featuring IP42-rated protection against dust and moisture, this scanner delivers long-term performance and reliability.

Product Features

• High-performance scanning – Captures a wide variety of 1D barcodes with speed and accuracy.
• Fast bi-directional scanning – Operates at 100 scans per second for rapid data capture.
• Compact and lightweight – Measuring just 30 × 20 × 43.3 mm and weighing 30g, perfect for tight integration.
• Durable build – Survives drops up to 0.75m onto concrete and offers IP42 protection.
• Flexible trigger modes – Manual, auto-trigger, multiple read, hardware and software trigger options.
• Multiple interfaces – Supports USB (HID/VCP) and RS232 communication.
• Wide reading range – Reads barcodes from as close as 50 mm up to 630 mm (depending on code size).
• Reliable in challenging conditions – Works under ambient light up to 50,000 lux and resists electrostatic discharge.
• Regulatory compliance – Certified with CE, FCC, RoHS, IEC safety standards.
• Warranty included – Backed by a 2-year manufacturer warranty.

Product Specifications
