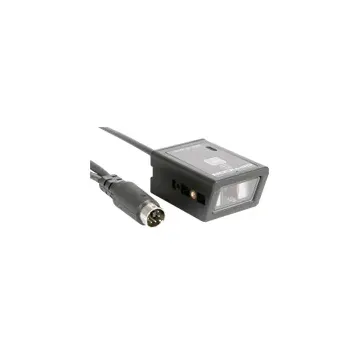

Opticon NLV-1001-WEDGE Fixed Position Laser Scanner

The Opticon NLV-1001-WEDGE Fixed Position Laser Scanner is a compact, rugged, and reliable 1D barcode scanning solution designed for easy integration into retail, kiosk, and light industrial environments. With a bi-directional scan rate of 100 scans per second, it delivers rapid and accurate barcode capture in demanding applications. Its small footprint makes it ideal for embedding in tight spaces, while its wedge interface provides seamless keyboard emulation for direct data entry into host systems. Featuring IP42-rated protection, drop resistance, and multiple trigger modes, the NLV-1001-WEDGE is built for dependable everyday use.

Product Features

• High-speed scanning – Captures 1D barcodes at 100 scans per second.
• Compact and lightweight – Only 30 × 20 × 43.3 mm and 30g, perfect for embedded use.
• Durable construction – Withstands 0.75 m drops to concrete and offers IP42 protection.
• Wedge interface support – Provides keyboard emulation for easy integration with POS and host systems.
• Flexible trigger modes – Manual, auto-trigger, multiple read, hardware, and software trigger options.
• Wide reading angles – ±35° pitch, ±50° skew, ±20° tilt for versatile scanning.
• Strong depth of field – Reads barcodes from 50 mm up to 630 mm depending on code size.
• Ambient light resistant – Works reliably under sunlight up to 50,000 lux.
• Simple integration – Complete unit with integrated decoder for plug-and-play use.
• Backed by warranty – Covered by a 2-year manufacturer’s warranty.

Product Specifications
