Description

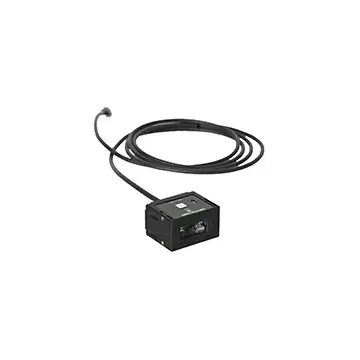

The Opticon NLV-3101-USBHID Fixed Position Scanner is one of the world’s smallest yet most powerful 2D stationary scanners, designed for demanding retail and industrial applications. Its full-spectrum illuminated CMOS imager delivers fast, precise barcode reading on both 1D and 2D codes, even on curved, poorly printed, or reflective surfaces. Featuring fast global shutter technology, auto exposure, and laser-free aiming via a green LED, it ensures safe and reliable operation. With durable IP65-rated housing, USB connectivity, low power consumption, and picture-capture capability, the NLV-3101 is ideal for integration into kiosks, POS systems, and automation environments.
Product Features
- Ultra-compact fixed position 2D CMOS imager – smallest in its class.
- High-speed global shutter with auto exposure for reliable performance.
- Scans 1D and 2D barcodes, including QR, DataMatrix, PDF417, and Aztec codes.
- Motion tolerant and supports scanning of moving barcodes.
- Laser-free green LED aiming system for safe and accurate targeting.
- IP65-rated for protection against dust and moisture.
- Built-in durability with resistance to drops, vibration, and antistatic discharge.
- Supports picture-capture capability in multiple image formats.
- Wide compatibility with USB HID/VCP interface.
- Low power consumption for flexible system integration.
Product Specifications
| Specification | Details |
| Scanner Type | 2D CMOS Fixed Position Imager |
| Interface | USB 2.0 (HID/VCP, USB-A connector) |
| Scan Rate | Up to 60 fps |
| Image Sensor | CMOS area sensor, 752 × 480 pixels |
| Minimum Resolution | 0.127 mm (5 mil, Code 39) |
| Curvature | R ≥16 mm (UPC), R ≥20 mm (Codabar) |
| Weight | 30 g (excluding cable) |
| Power Requirements | 6V ±5%, max. 200 mA |
| Indicators | Red/Green/Orange LED, Buzzer |
| Warranty | 2 Years |
Features
Connectivity:
- Wired
Ruggedness:
- Non-rugged
Brand:
Opticon
Form Factor:
- Fixed Mount
Scan Engine/Technology:
- 2D
Interface:
- USB
Scan Range:
- Standard Range
Colour:
- Black
Rugged:
- General purpose
Usage:
- Entry Level
IP Rating:
- IP65
Industry/Vertical:
- Logistics/Warehouse
Warranty:
- 2 Years
Product Type/Condition:
- New
