Description

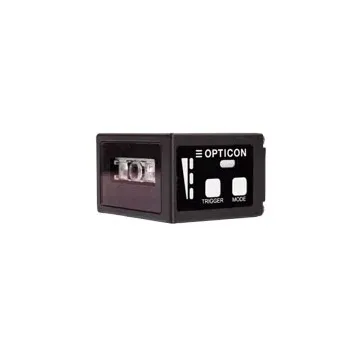

The Opticon NLV-5201-USBHID Fixed Position Scanner is a rugged and ultra-fast 2D CMOS imager built for high-volume, hands-free barcode scanning. Designed for retail, hospitality, healthcare, and manufacturing, this fixed mount scanner delivers reliable performance even on poorly printed, curved, or damaged barcodes. Equipped with global shutter technology, auto exposure, and laser-free green LED aiming, the NLV-5201 ensures accurate and safe scanning every time. Its compact design, IP65-rated durability, USB connectivity, and low power consumption make it ideal for kiosk integration, point-of-sale environments, and automation systems
Product Features
- Rugged fixed position 2D CMOS imager for high-volume scanning.
- Reads a wide range of 1D and 2D barcodes, including QR, DataMatrix, and PDF417.
- Ultra-fast global shutter with auto exposure for superior speed and accuracy.
- Enhanced motion tolerance for scanning moving barcodes.
- Green LED aiming system provides precise targeting without laser safety concerns.
- Durable IP65-rated housing protects against dust and moisture.
- Withstands drops, vibration, and static electricity for tough environments.
- Supports image capture in multiple formats (JPEG, TIFF, Bitmap).
- Compact footprint for easy integration into kiosks and OEM devices.
- USB HID interface ensures simple plug-and-play connectivity.
Product Specifications
| Specification | Details |
| Scanner Type | 2D CMOS Fixed Position Imager |
| Scan Rate | Up to 60 fps |
| Image Sensor | CMOS area sensor, 752 × 480 pixels |
| Minimum Resolution | 0.127 mm (5 mil, Code 39) |
| Curvature | R ≥16 mm (UPC), R ≥20 mm (Codabar) |
| Weight | 30 g (excluding cable) |
| Power Requirements | 6V ±5%, max. 200 mA |
| Indicators | Red/Green/Orange LED, Buzzer |
| Warranty | 2 Years |
Features
Connectivity:
- Wired
Ruggedness:
- Non-rugged
Brand:
Opticon
Form Factor:
- Fixed Mount
Scan Engine/Technology:
- 2D
Interface:
- USB
Scan Range:
- Standard Range
Colour:
- Black
Rugged:
- General purpose
Usage:
- Entry Level
IP Rating:
- IP65
Industry/Vertical:
- Logistics/Warehouse
Warranty:
- 2 Years
Product Type/Condition:
- New
