Description

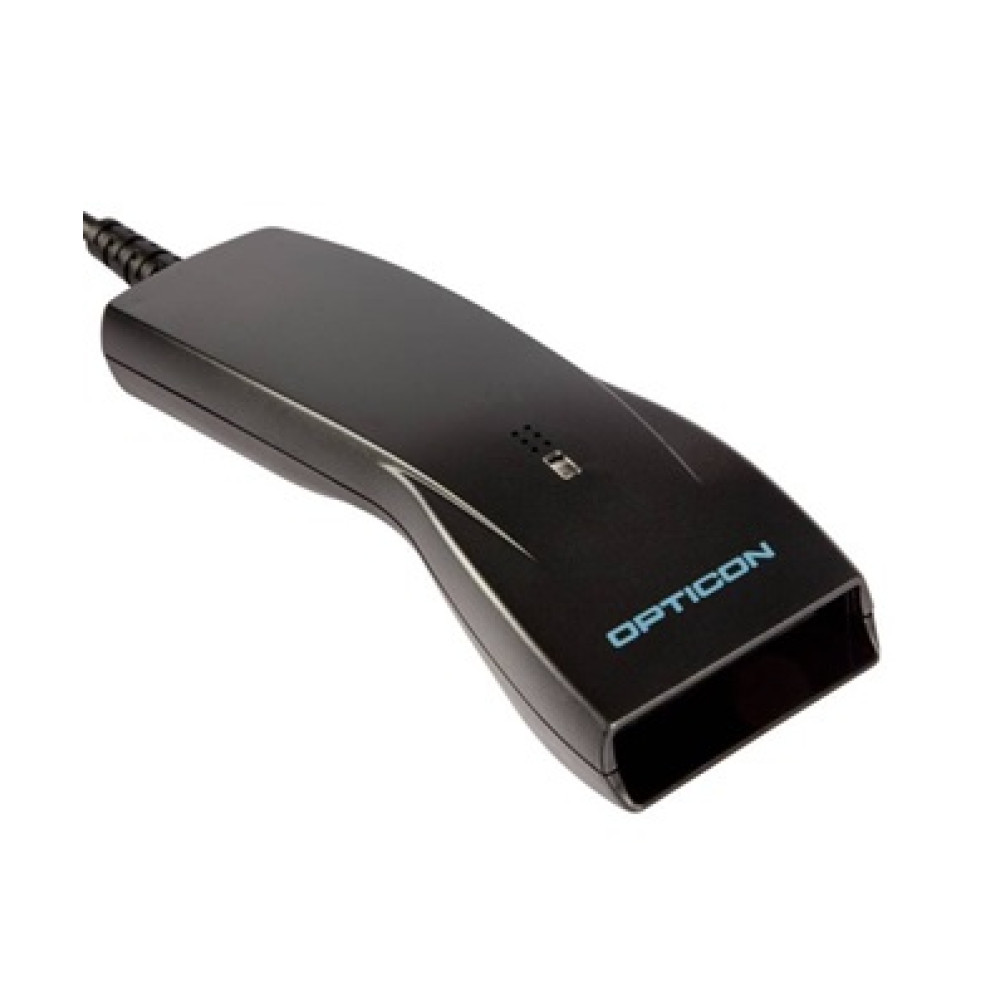

The Opticon OPL-6845S Black USB Barcode Scanner Kit is a compact and lightweight corded 1D laser scanner that delivers fast and accurate scanning performance at 100 scans per second. Powered via USB interface, this model provides a reliable plug-and-play solution for retail, healthcare, logistics, and warehousing environments.
Featuring a 650 nm visible laser diode, the OPL-6845S easily reads low-contrast and poorly printed barcodes. It supports manual, auto-trigger, and stand detection modes, making it ideal for both handheld and hands-free operations.
This kit includes a USB straight cable and a hands-free stand for maximum flexibility. Built to last, the OPL-6845S offers IP42 sealing, 1.5m drop resistance, and ambient light immunity up to 50,000 lux, ensuring dependable performance in demanding workspaces.
Product Features
- High-performance 1D laser scanning at 100 scans per second.
- Corded USB interface for plug-and-play compatibility.
- Reads all major 1D barcodes plus composite 2D codes (PDF417, MicroPDF417).
- Includes USB straight cable and hands-free stand.
- Supports manual, auto-trigger, and stand detection scanning.
- Lightweight and ergonomic – only 90 g (excluding cable).
- Rugged build: 1.5m drop resistance, IP42 protection.
- Resistant to ambient light up to 50,000 lux – perfect for retail or outdoor scanning.
Product Specifications
| Specification | Details |
| Scanner Type | 1D Laser (650 nm visible diode) |
| Scan Speed | 100 scans per second |
| Resolution | 0.127 mm (5 mil) |
| Min. PCS Value | 0.45 |
| Drop Resistance | 1.5m (5 ft) onto concrete |
| Sealing (IP Rating) | IP42 |
| Dimensions (Scanner) | 57 × 159 × 32 mm |
| Weight (Scanner) | 90 g (excluding cable) |
| Dimensions (Stand) | 160 × 190 × 245 mm |
| Weight (Stand) | 290 g |
Features
- Wired
- Non-rugged
- Handheld
- 1D
- USB
- Standard Range
- Black
- General purpose
- Entry Level
- IP42
- Logistics/Warehouse
- 1 Year
- New
