Opticon OPN-3102i-WHT 2D Data Collector [White] – Compact Bluetooth Barcode Scanner with MFi Support

Wireless, Non-rugged, Opticon, Handheld, 2D, USB, Standard Range, White, General purpose, Entry Level, IP54, Retail, 2 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +441749608334
14912

Need Help

Choosing a Product
+441749608334 Live Chat Email Us
Talk to our technical Expert
price match

Description

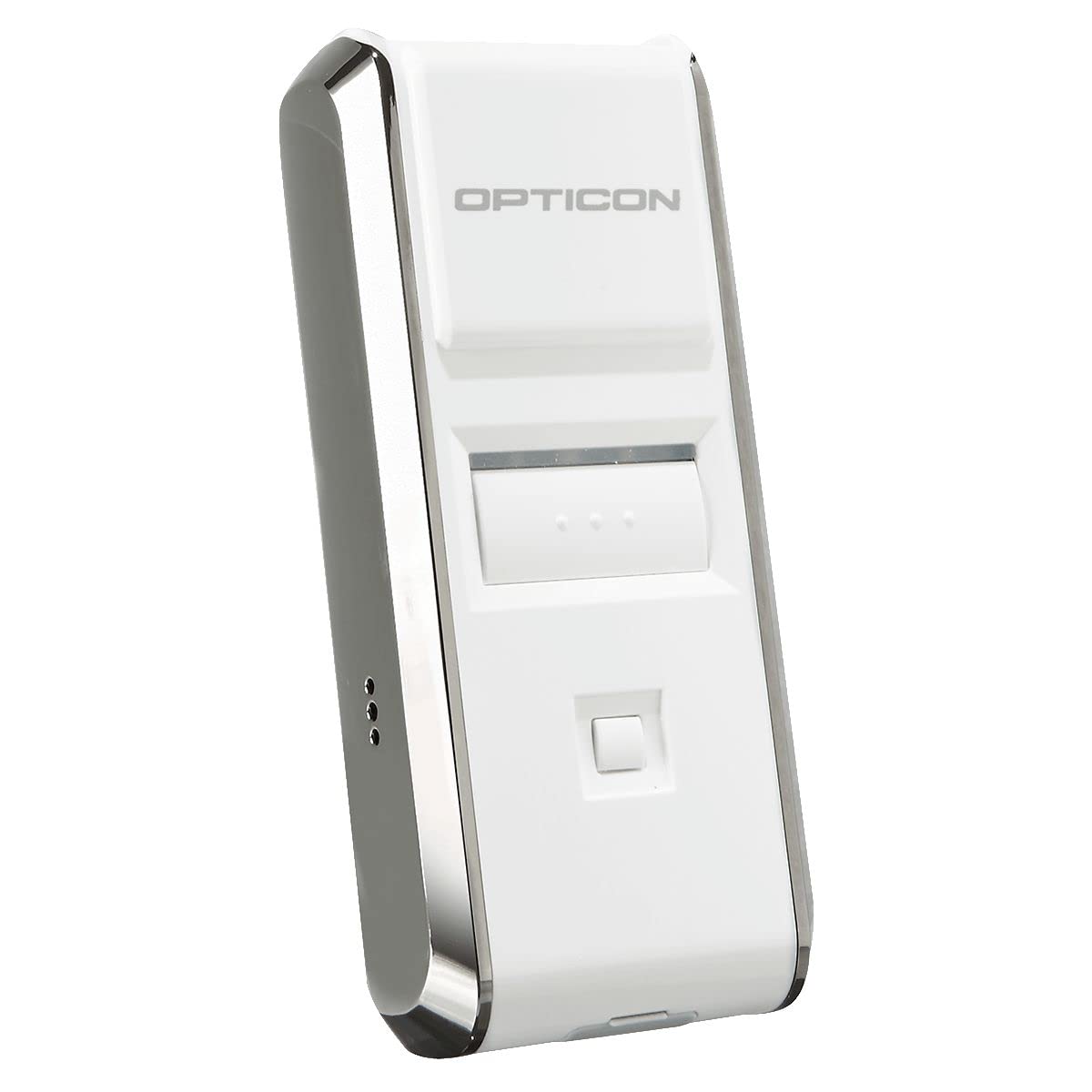

The Opticon OPN-3102i-WHT is a lightweight, pocket-sized 2D data collector designed for seamless real-time barcode scanning. Equipped with a high-performance 2D CMOS imager, it delivers ultra-fast scanning at up to 100 frames per second. Its Bluetooth connectivity with Apple MFi, Android, and Windows devices ensures compatibility across multiple platforms. With built-in NFC pairing, USB and wireless charging options, and an IP54-rated durable design, this compact scanner is ideal for retail, healthcare, field sales, POS, and inventory management applications in the UK.

Product Features

  • High-speed 2D CMOS imager scanning at up to 100 fps.
  • Reads both 1D and 2D barcodes, including QR Code, PDF417, and Data Matrix.
  • Ultra-compact and lightweight design: only 60g.
  • Bluetooth 2.1 with SPP, HID, and Apple MFi support for broad compatibility.
  • Built-in NFC tag enables simple Bluetooth pairing.
  • Multiple charging options: USB rechargeable and wireless charging.
  • Long-lasting 600 mAh Lithium-Ion battery with up to 10 hours of operation.
  • Rugged IP54 protection rating against dust and moisture.
  • Drop resistance: survives 1.5m drops to concrete.
  • Backed by a 2-year warranty for reliability


Product Specifications

CategoryDetails
ModelOpticon OPN-3102i-WHT
Scanner Type2D CMOS Imager
Scan RateUp to 100 fps
Dimensions36 x 83 x 21.5 mm
Weight60g (incl. battery)
Drop Resistance1.5m / 5 ft onto concrete
Protection RatingIP54 (dust & moisture resistant)
Battery600 mAh Lithium-Ion rechargeable
Charging OptionsUSB or wireless charging
Operating Temp.-10°C to +50°C
Storage Temp.-20°C to +60°C
Included ItemsNeck strap, MicroUSB cable
Optional AccessoriesCRD-3000 cradle (charging)
Warranty2 Years

Features

Connectivity:
  • Wireless
Ruggedness:
  • Non-rugged
Brand:
Opticon
Form Factor:
  • Handheld
Scan Engine/Technology:
  • 2D
Interface:
  • USB
Scan Range:
  • Standard Range
Colour:
  • White
Rugged:
  • General purpose
Usage:
  • Entry Level
IP Rating:
  • IP54
Industry/Vertical:
  • Retail
Warranty:
  • 2 Years
Product Type/Condition:
  • New

Attachments

Brochure (OPN-3102i.pdf, 1,419 Kb) [Download]
