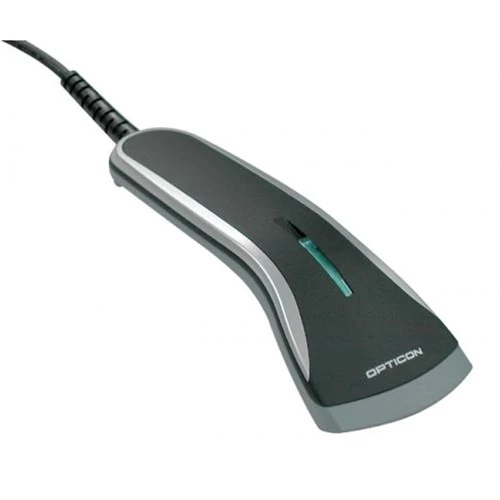

Opticon OPR-2001 Black RS232 Barcode Scanner Kit with Stand – Slim Ultra-Light 1D Laser, RS232 Interface, 5-Year Warranty

Wired, Non-rugged, Opticon, Handheld, 1D, Serial/RS232, Standard Range, Black, General purpose, Entry Level, IP42, Logistics/Warehouse, 5 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +44 747 411 6863
11646-5Y

Need Help

Choosing a Product
+44 747 411 6863 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Opticon OPR-2001 Black RS232 Barcode Scanner Kit is a high-performance, lightweight, and durable 1D laser scanner designed to deliver fast and accurate barcode reading. With a scan speed of up to 100 scans per second, this device ensures efficiency even on low contrast and poor-quality barcodes.

This RS232 model is supplied with a straight RS232 cable and hands-free stand, offering manual trigger, auto-trigger, and stand detection modes for versatile scanning. Please note that an external power supply unit (PSU) is required for RS232 operation.

Engineered with IP42-rated protection, 1.5m drop resistance, and ergonomic design, the OPR-2001 is perfect for demanding environments in retail, healthcare, education, and logistics. Backed by a 5-year warranty, it provides long-term reliability and excellent value.

Product Features

  • Ultra-slim and lightweight design – only 60g for easy handling.
  • High-speed scanning – up to 100 scans per second.
  • Compatible with all standard 1D barcodes, including GS1 DataBar and postal codes.
  • RS232 straight cable included (requires external PSU).
  • Flexible trigger options: manual, auto-trigger, and stand detection.
  • Supplied with a hands-free stand for improved productivity.
  • Durable construction with 1.5m drop resistance.
  • IP42 sealing against dust and moisture.
  • Resistant to ambient light up to 50,000 lux.
  • Protected by a 5-year warranty.


Product Specifications

SpecificationDetails
Scanner Type1D Laser (650 nm visible diode)
Scan SpeedUp to 100 scans per second
Resolution0.127 mm (5 mil)
Min. PCS Value0.45
Trigger ModesManual, Auto-trigger, Stand Detection
InterfacesRS232 (requires PSU), USB
Drop Resistance1.5m (5 ft) onto concrete
Sealing (IP Rating)IP42
Dimensions (Scanner)56 × 151 × 31 mm
Weight (Scanner)60 g (excluding cable)
Dimensions (Stand)99 × 174 × 127 mm
Weight (Stand)90 g

Features

Connectivity:
  • Wired
Ruggedness:
  • Non-rugged
Brand:
Opticon
Form Factor:
  • Handheld
Scan Engine/Technology:
  • 1D
Interface:
  • Serial/RS232
Scan Range:
  • Standard Range
Colour:
  • Black
Rugged:
  • General purpose
Usage:
  • Entry Level
IP Rating:
  • IP42
Industry/Vertical:
  • Logistics/Warehouse
Warranty:
  • 5 Years
Product Type/Condition:
  • New

Attachments

Brochure (OPR-2001.pdf, 898 Kb) [Download]
