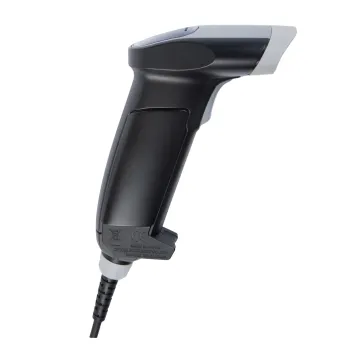

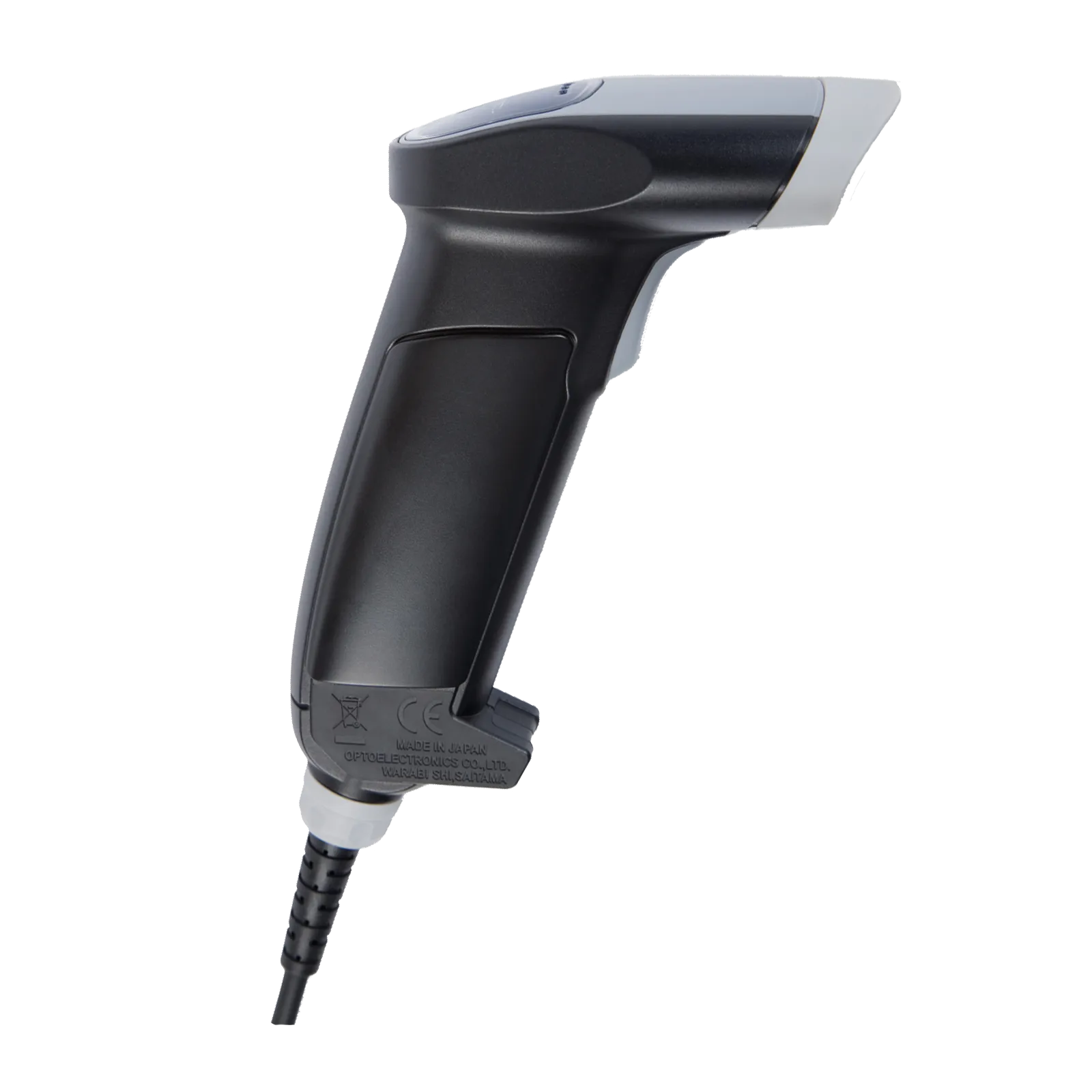

Opticon OPR-3201Z Black USB Barcode Scanner Kit with Stand – Lightweight Pistol Grip 1D Laser, 5-Year Warranty

Wired, Non-rugged, Opticon, Handheld, 1D, USB, Standard Range, Black, General purpose, Entry Level, IP42, Logistics/Warehouse, 5 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +44 747 411 6863
11789-5Y

Need Help

Choosing a Product
+44 747 411 6863 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Opticon OPR-3201Z Black USB Barcode Scanner Kit combines lightweight ergonomics, pistol grip design, and high-performance laser scanning to deliver fast, reliable results for retail, healthcare, education, and logistics applications.

With a scan speed of up to 100 scans per second, this scanner is capable of reading even low-contrast or poor-quality barcodes with accuracy. The included USB straight cable and hands-free stand support flexible use, with manual trigger, auto-trigger, and stand detection modes for optimal productivity.

Weighing only 90 grams and built with IP42 protection and 1.5m drop resistance, the OPR-3201Z offers both durability and comfort for all-day scanning. Backed by a 5-year warranty, it ensures dependable long-term operation.

Product Features

  • Lightweight and ergonomic pistol grip design – just 90g for comfortable daily use.
  • High-speed scanning at 100 scans per second for efficiency.
  • Compatible with a wide range of 1D barcodes including GS1 DataBar and postal codes.
  • USB straight cable included (plug-and-play operation).
  • Auto-trigger and stand detection enable hands-free scanning.
  • Supplied with a hands-free stand for added convenience.
  • Built to last – 1.5m drop resistance onto concrete.
  • IP42-rated protection against dust and moisture.
  • Strong ambient light immunity up to 50,000 lux.
  • Protected by a 5-year warranty.


Product Specifications

SpecificationDetails
Scanner Type1D Laser (650 nm visible diode)
Scan SpeedUp to 100 scans per second
Resolution0.127 mm (5 mil)
Min. PCS Value0.45
Trigger ModesManual, Auto-trigger, Stand Detection
InterfacesUSB, RS232 (with optional PSU)
Drop Resistance1.5m (5 ft) onto concrete
Sealing (IP Rating)IP42
Dimensions (Scanner)56 × 149 × 109 mm
Weight (Scanner)90 g (excluding cable)
Dimensions (Stand)146 × 106 × 295 mm
Weight (Stand)390 g

Features

Connectivity:
  • Wired
Ruggedness:
  • Non-rugged
Brand:
Opticon
Form Factor:
  • Handheld
Scan Engine/Technology:
  • 1D
Interface:
  • USB
Scan Range:
  • Standard Range
Colour:
  • Black
Rugged:
  • General purpose
Usage:
  • Entry Level
IP Rating:
  • IP42
Industry/Vertical:
  • Logistics/Warehouse
Warranty:
  • 5 Years
Product Type/Condition:
  • New

Attachments

Brochure (OPR-3201.pdf, 970 Kb) [Download]
