Description

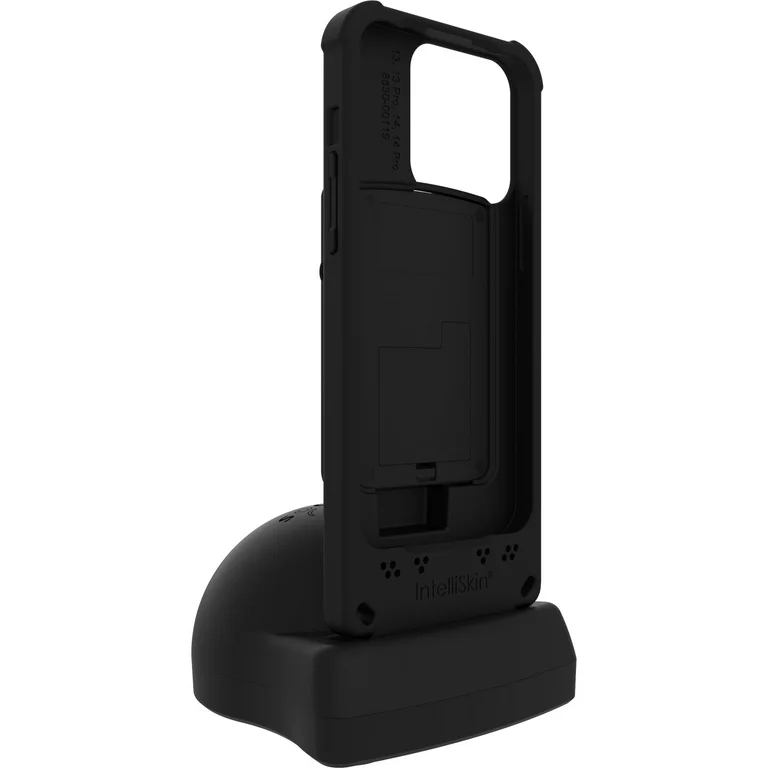

The Socket Mobile DuraSled DS860 is a rugged barcode sled scanner designed for Apple® iPhone users requiring reliable data capture for retail, field service, travel, and healthcare industries. It combines a protective sled case with a powerful 2D/1D barcode scanner and OCR/MRZ capabilities — including OCR A/B, MICR E13B, and DotCode scanning. This bundle includes the DS860 scanner and a GDS® Charging Dock, offering dual charging via magnetic contact points. Its modular, future-proof design supports iPhone 6 through 15 (via interchangeable cases), making it a scalable, all-in-one solution for scanning product barcodes and travel IDs like passports or driver’s licenses. Certified by Apple®, the DuraSled DS860 ensures seamless performance with iOS devices.
Product Features
- Scans 1D/2D barcodes, DotCode, MRZ (passports), OCR A/B, OCR USC, MICR E13B
- Durable Elastomeric case protects iPhone and scanner from drops
- Interchangeable scanner and accessories for future iPhone upgrades
- Dual charging via magnetic contacts (Charger Dock included)
- iOS Certified – MFi Program approved
- Bluetooth® wireless technology – Class 2, 10m range
- Long battery life – Up to 34,000 scans per charge
- App Mode (MFi-SPP) & HID mode compatibility
- Compatible with Socket Mobile Capture SDK for integration
- Designed and manufactured in the USA
Product Specifications
| Specification | Details |
| Scan Technology | 2D/1D Barcode Imager with OCR and DotCode |
| Supported Codes | 1D, 2D, DotCode, OCR A/B, MRZ, MICR, PDF417 |
| Light Source | Hyper Red 660nm LED |
| Sensor Resolution | 1280 x 800 pixels |
| Print Contrast | Down to 25% |
| Reading Distance | 4.6–76.2 cm (1.8–30.0 in) |
| Battery | Rechargeable Li-ion Polymer, 700mAh |
| Bluetooth Version | Class 2, v2.1 + EDR, HID & MFi-SPP modes |
| Operating Range | Up to 10 meters |
| Durability | Drop tested to 1m; IP40 sealing |
| Operating Temp | 0°C to 50°C (32°F to 122°F) |
| Storage Temp | -30°C to 70°C (-22°F to 158°F) |
| Ambient Light Tolerance | 0 to 100,000 lux |
| Certifications | FCC, CE, WEEE, RoHS, TELEC, IC, IEC 60950-1 |
| Country of Origin | China |
| Warranty | 1 Year Standard |
Features
- Wireless
- Non-rugged
- Handheld
- 2D
- Bluetooth
- Standard Range
- Black
- General purpose
- Entry Level
- IP40
- Logistics/Warehouse
- 1 Year
- New
