Description

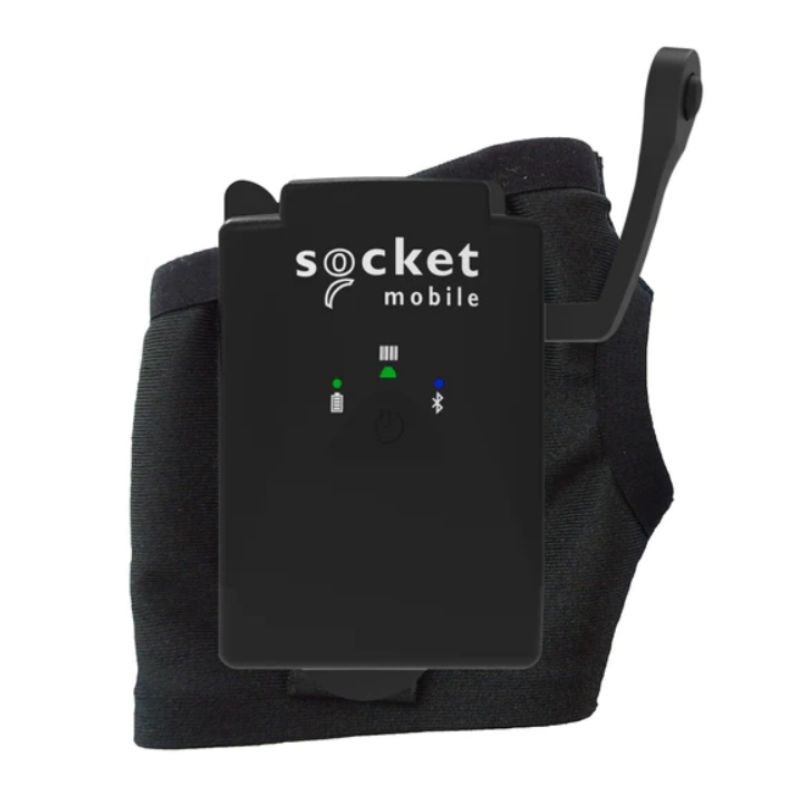

The XtremeScan Wear XW930 DW930 with extra-small right-hand wrap delivers high-speed, hands-free 1D barcode scanning for fast-paced workflows in warehousing, manufacturing, retail logistics, and healthcare environments. This Bluetooth® wearable barcode scanner is engineered for performance, offering unmatched efficiency by enabling workers to scan while keeping both hands free for other tasks.
Fitted with a flexible trigger arm and an ultra-lightweight body, the DW930 provides comfort over extended use and fits directly over the back of the hand or a work glove. The XS size is specially designed for workers with smaller hands, ensuring a snug and secure fit without sacrificing performance or mobility.
Its class 2 laser scans up to 180 inches, even through glass or plastic, in low light, or on poorly printed codes. The scanner pairs effortlessly with iOS, Android, Windows 10/11, macOS, and Linux systems, and supports native app integration via CaptureSDK. Whether you're in a warehouse, at a picking station, or managing sensitive items in healthcare, the XW930 delivers the precision, durability, and flexibility your team needs.
Product Features
- XS Right-Hand Glove Fit: Ergonomically designed breathable glove wrap for smaller hands; fits directly or over a standard glove.
- 1D Laser Scanner: Class 2 laser capable of scanning barcodes up to 457.2 cm (180") away, including damaged or low-contrast codes.
- Bluetooth Wireless Connection: Compatible with iOS, Android, Windows 10/11, macOS, and Linux via HID, SPP, or MFi-SPP profiles.
- Hands-Free Operation: Glove-based scanner lets users scan continuously without dropping or holstering the device.
- Long Battery Life: 700 mAh battery provides up to 53,000 scans on a single charge and supports full-day operations.
- Rugged & Durable: IP54-rated for dust and water resistance, withstanding drops from up to 2 metres and 2,500 tumbles.
- Visual & Audio Feedback: LED and tone indicators for scanning status, Bluetooth connectivity, and battery life.
- SDK Integration: Seamlessly integrates into mobile apps via Socket Mobile’s CaptureSDK for enhanced productivity.
- Flexible Trigger Arm: Adjustable switch placement offers personalised comfort and accessibility.
- Designed & Assembled in the USA: Backed by a 1-year scanner warranty and 90-day accessory support.
Product Specifications
Specification | Details |
Scanner Type | 1D Class 2 Laser Barcode Scanner (650 nm) |
Scan Range | Up to 457.2 cm (180 in), based on barcode quality and size |
Scan Angle | Wide: 47° (default), Medium: 35°, Narrow: 10° |
Supported Symbologies | Code 39, Code 128, UPC/EAN, Codabar, GS1, MSI, and more |
Optical Resolution | 0.005 in. minimum element width |
Print Contrast | Minimum 25% reflectance at 650 nm |
Battery Type | Rechargeable 700 mAh Lithium-ion polymer battery |
Battery Life (per charge) | Up to 53,000 scans or 13 hours standby |
Charging Time | Approximately 8 hours |
Bluetooth Version | Class 2, Bluetooth v2.1 + EDR |
Bluetooth Range | Up to 10 m (33 ft), depending on the environment |
Environmental Protection | IP54 (dust & water resistant) |
Drop Resistance | Up to 2 m to concrete (6 drops) |
Tumble Resistance | 2,500 tumbles at 1 m |
Operating Temperature | -20°C to +50°C |
Storage Temperature | -40°C to +70°C |
Humidity Tolerance | Up to 95% RH, non-condensing |
Warranty | 1-Year Scanner Warranty |
Features
- Wireless
- Non-rugged
- Wearable
- 1D
- Bluetooth
- Standard Range
- Black
- General purpose
- Entry Level
- IP54
- Logistics/Warehouse
- 1 Year
- New
