Description

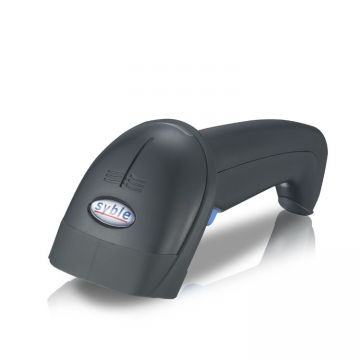

The Syble XB-5055R Cordless 1D Laser Barcode Scanner Kit is a high-performance, industrial-grade scanner designed for fast, accurate, and wireless barcode scanning. Operating on 2.4GHz wireless technology with a range of up to 100 metres in open areas, it ensures reliable data capture without interference. The ergonomic pistol grip design makes it comfortable for long shifts, while the included USB receiver dongle and charging cable provide a simple plug-and-play setup.
With its 650nm safe visible laser, the XB-5055R delivers precise scanning at speeds of 300 scans per second, supporting a wide range of 1D barcode symbologies. Built with a rugged ABS+PC housing, it withstands multiple 3-metre drops to concrete, making it ideal for warehouses, retail, logistics, supermarkets, smoke/wine shops, and clothing outlets.
Product Features
- Cordless 2.4GHz Wireless Technology – Reliable transmission up to 100m in open yard.
- Fast Scanning Performance – Up to 300 scans per second for high-volume operations.
- Wide Barcode Compatibility – Reads all major 1D barcodes including EAN, UPC, Code39, Code128, MSI, and more.
- Durable Industrial Design – Withstands multiple 3-metre drops to concrete.
- Comfortable Pistol Grip – Ergonomic design reduces fatigue during continuous use.
- High Precision Scanning – Reads barcodes as small as 4mil (0.1mm) with accuracy.
- Large Storage Capacity – Stores up to 512,000 bytes of scanned data.
- Flexible Scan Modes – Supports manual and continuous scanning.
- Low Power Consumption – Efficient lithium battery with long-lasting operation.
- Plug-and-Play Connectivity – Simple setup via USB-HID receiver dongle.
Product Specifications
Category | Details |
Scan Type | Single Laser |
Scan Speed | ≥300 scans/sec |
Scan Modes | Manual / Successive scanning |
Scan Angle | Yaw 55°, Rotation 30°, Pitch 65° |
Precision | 4mil (0.1mm) |
Depth of Field | 0–250mm (0.33mm, PCS90%) |
Error Rate | <1/5 million |
Interface | USB-HID |
Wireless Frequency | 2.4GHz |
Transmission Distance | Up to 100m (open yard) |
Storage Capacity | 512,000 bytes |
Pairing Model | One-to-One |
Dimensions | 83mm × 70mm × 172mm |
Weight | 155g |
Humidity | 0–85% RH (non-condensing) |
Drop Resistance | Multiple drops from 3m to concrete |
Voltage | DC 5V ±10% |
Features
- Wireless
- Non-rugged
- Ring Scanner
- 1D
- Bluetooth
- Standard Range
- Black
- General purpose
- Entry Level
- Logistics/Warehouse
- 1 Year
- New
