Description

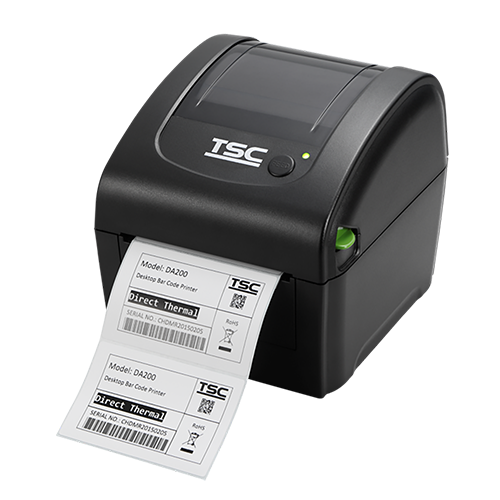

The TSC DA220 is a high-performance desktop direct thermal barcode printer designed for businesses that require efficient and reliable label printing. With USB and Ethernet connectivity, it ensures seamless integration for various applications, including shipping labels, retail tags, and patient tracking. The double-walled clamshell design enhances durability, while the 6-inch per second print speed ensures fast output. Equipped with 128 MB Flash and 64 MB DRAM, this ENERGY STAR®-qualified printer delivers superior performance at an affordable cost of ownership.
Product Features
- USB & Ethernet connectivity for versatile integration
- Direct thermal printing technology for cost-effective label printing
- 6 inches per second print speed for high-efficiency operations

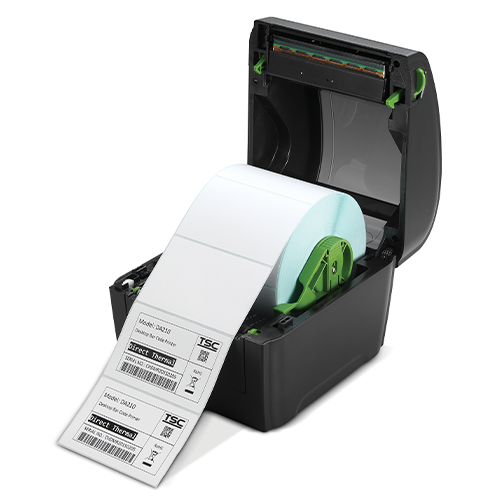

- Double-walled clamshell design for durability and ease of use
- 128 MB Flash memory & 64 MB DRAM for enhanced processing speed
- Supports EPL, ZPL, ZPL II, and DPL printer languages
- Easy media loading system for hassle-free label replacement
- ENERGY STAR® qualified for eco-friendly operation
- Compact and lightweight design, ideal for space-constrained environments
- Ideal for retail, healthcare, shipping, and logistics applications
Product Specifications
| Printing Method | Direct Thermal |
| Resolution | 203 DPI (8 dots/mm) |
| Max. Print Speed | 152.4 mm (6”)/sec |
| Max. Print Width | 108 mm (4.25”) |
| Max. Print Length | 25,400 mm (1000”) |
| Memory | 128 MB Flash, 64 MB DRAM |
| Connectivity | USB 2.0 (High Speed), Ethernet |
| Media Type | Continuous, black mark, fan-fold, notched (outside wound) |
| Media Width | 19 ~ 114 mm (0.7“ ~ 4.5“) |
| Label Roll Capacity | 127 mm (5”) OD |
| Dimensions (W x H x D) | 172 x 165 x 195 mm (6.77” x 6.50” x 7.68”) |
| Weight | 1.5 kg (3.31 lbs) |
| Power Supply | IEC 60601-1 compliant, AC 100-240V input, DC 24V output |
| Printer Language | TSPL-EZD (EPL, ZPL, ZPL II, DPL compatible) |
| 1D Barcodes | Code 39, Code 128, EAN-13, UPC-A, MSI, etc. |
| 2D Barcodes | QR Code, DataMatrix, PDF-417, Maxicode, etc. |
| Operating Temperature | 5 ~ 40°C (25 ~ 85% non-condensing) |
| Certifications | FCC Class A, CE Class A, RoHS, ENERGY STAR® |
Features
Print Speed:
- 6IPS
Brand:
TSC
Interface:
- USB
- Ethernet
Warranty:
- 2 Years
Product Type/Condition:
- New
Print Method:
- Direct Thermal
Print Resolution-DPI:
- 203
Max Print Width:
- 4inch
Print Type:
- Monochrome
Printer Type:
- Desktop
Label Core Size:
- 1inch
- 1.5inch
