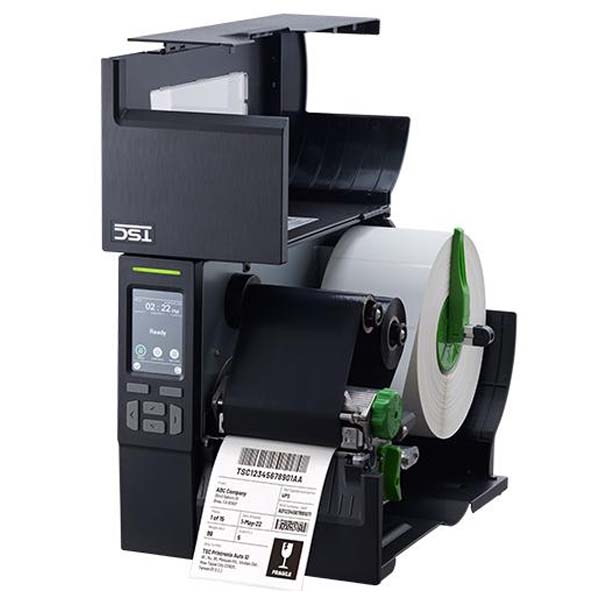

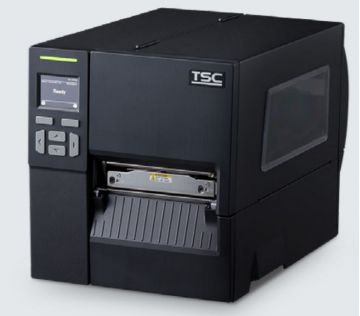

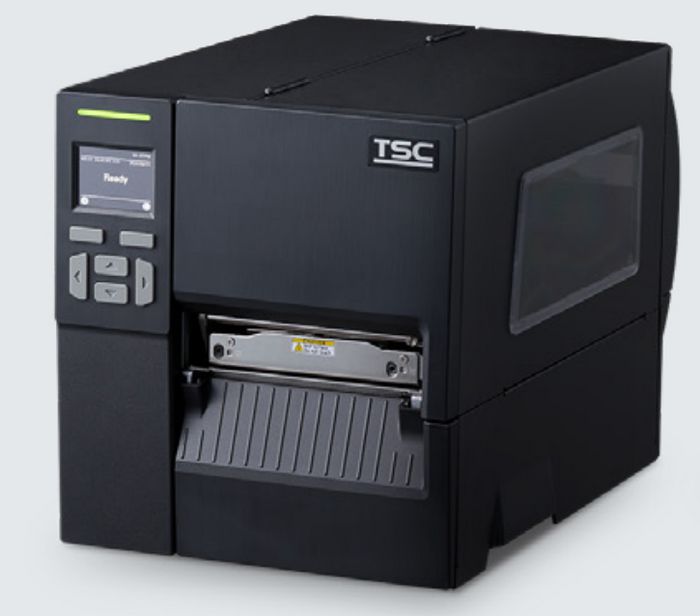

TSC MB241T Industrial Label Printer – 203 dpi

305mm/sec, rs232, Ethernet, USB, Tearbar, Rugged, TSC, RS232, USB, Ethernet, Black, Rugged/Heavy Duty, Mid Level, Industrial, Commercial Services, Light Manufacturing, Logistics/Warehouse, 2 Years, New, Thermal Transfer, 203, 6inch, Monochrome, Thermal Printer, Industrial, 2inch, LCD
GBP £909.00
For Special & Volume Pricing - Call +44 174 960 8334
MB241T-A001-0202
+

Need Help

Choosing a Product
+44 174 960 8334 Live Chat Email Us
Talk to our technical Expert
price match

Description

The TSC MB241T Industrial Label Printer is a compact, high-performance printing solution engineered for demanding industrial environments. Featuring a rugged all-metal design, advanced thermal printhead technology, and a 2.3" colour LCD interface, this printer delivers exceptional durability and print quality, even in the most space-constrained settings.

With auto-switch emulation support, powerful remote management via SOTI Connect, and seamless integration across Windows, iOS, and Android platforms, the MB241T is ideal for warehousing, logistics, manufacturing, and healthcare. The printer supports a variety of media types, including thick hangtags and linerless labels, making it an all-in-one labelling solution for diverse business needs.

Sustainability is a priority too – with 100% recyclable packaging and printer casing, the TSC MB241T helps your business reduce its environmental footprint while maintaining peak performance.


Product Feature

Compact bifold design saves up to 24% of workspace

  • Durable metal casing and print mechanism for long-term use
  • 203 dpi high-resolution thermal printing
  • Auto language emulation for easy deployment across fleets
  • Real-Time Clock (RTC) and 2.3" LCD display for intuitive operation
  • Supports linerless, peel-off, cutter, and internal rewinder accessories
  • Multi-interface support: USB, USB Host, RS232, Ethernet
  • Advanced TSC Sense Care system monitors printhead & cutter usage
  • Eco-friendly: over 90% recyclable components & packaging
  • Remote management via TSC Console, SOTI Connect & embedded web tools


Product Specifications

Specification

Details

Model

TSC MB241T

Resolution

203 dpi (8 dots/mm)

Print Method

>span class="EOP SCXW246014708 BCX0" data-ccp-props="{"134233117":false,"134233118":false,"335551550":0,"335551620":0,"335559738":0,"335559739":0}">

Max Print Speed

304.8 mm/s (12")

Max Print Width

107 mm (4.21")

Max Print Length

25,400 mm (1000")

Connectivity

USB 2.0, USB Host, RS232, Ethernet

Display

2.3" Colour LCD, 6-button navigation

Memory

256MB Flash, 256MB SDRAM

Label Roll Capacity

203.2mm O.D., 1"-3" I.D. Core

Ribbon Capacity

450m, 40-110mm width

Media Width

20mm - 120mm (0.8" - 4.7")

Sensors

Gap, Black Mark, Ribbon End, Ribbon Encoder, Head Open

Interfaces (Optional)

Bluetooth 5.0, Wi-Fi/Bluetooth combo, GPIO

Power Supply

AC 100-240V input, DC 24V output

Dimensions

248mm (W) x 274mm (H) x 436mm (D)

Weight

9.1 kg

Operating Temp

0°C to 40°C

Warranty

Printer: 2 Years / Print Head: 12 Months or 25km

Features

Connectivity:
  • Ethernet
  • rs232
  • USB
Cutter Option:
  • Tearbar
Print Speed:
  • 305mm/sec
Ruggedness:
  • Rugged
Brand:
TSC
Interface:
  • RS232
  • USB
  • Ethernet
Colour:
  • Black
Rugged:
  • Rugged/Heavy Duty
Usage:
  • Mid Level
  • Industrial
Industry/Vertical:
  • Commercial Services
  • Light Manufacturing
  • Logistics/Warehouse
Warranty:
  • 2 Years
Product Type/Condition:
  • New
Print Method:
  • Thermal Transfer
Print Resolution-DPI:
  • 203
Max Print Width:
  • 6inch
Print Type:
  • Monochrome
Printer Type:
  • Thermal Printer
  • Industrial
Label Core Size:
  • 2inch
Display Type:
  • LCD

Attachments

Brochure (MB241_Series_EN.pdf, 366 Kb) [Download]
